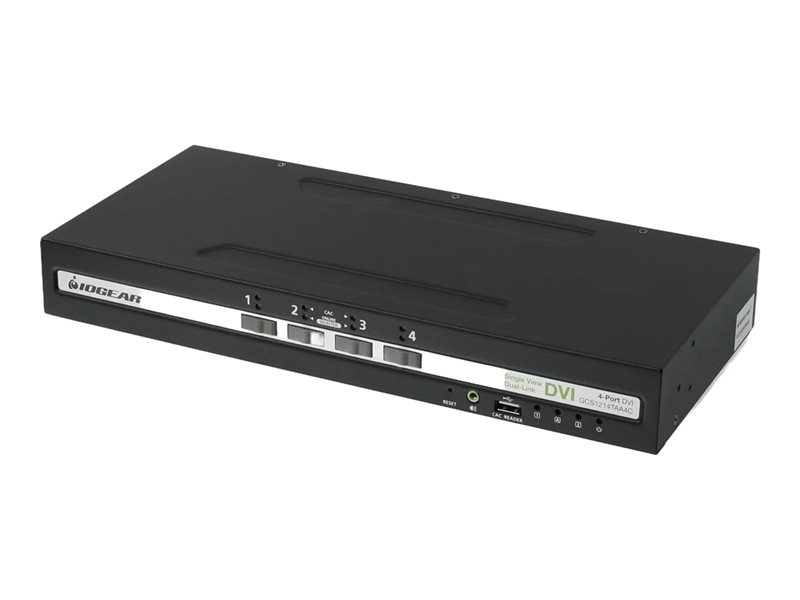

KVM switch - DVI, w/audio, CAC Support - 4 x KVM port(s) - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | IOGEAR Single View Secure series GCS1214TAA4C - KVM switch - DVI, w/audio, CAC Support - 4 ports - TAA Compliant |
| Device Type | KVM switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM port(s) |
| KVM Users Qty | 1 local user |
| Features | Active anti tampering system, 4 push buttons, power button, metal housing, non-reprogrammable ROM, rugged, chassis intrusion detection, Unidirectional Data Flow, Biometric/Smart-Card Reader Support, CAC reader support |
| Power | AC 110-240 V (50 - 60 Hz) 1 A |
| Dimensions (WxDxH) | 8.3 in x 16.5 in x 4.7 in |
| System Requirements | Apple MacOS 9.0 or later, FreeBSD 3.51 or later, IBM AIX 4.3, Linux Kernel 2.6.x, Mandrake Linux 9.0 or later, Microsoft DOS 6.2 or later, Microsoft Windows 7 / 8 / 10 / 11, Novell NetWare 5.0 or later, Red Hat Enterprise Linux 6, SunSoft Solaris 9 or later, SuSE Linux 8.2 or later |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 2560 x 1600 @ 60 Hz |
| Features | Active anti tampering system, 4 push buttons, power button, metal housing, non-reprogrammable ROM, rugged, chassis intrusion detection, Unidirectional Data Flow, Biometric/Smart-Card Reader Support, CAC reader support |
| Status Indicators | Power, online, select |
| Expansion / Connectivity | |
| Interfaces | 4 x DVI-D (dual link) 29 pin DVI remote control ¦ 4 x audio input mini-jack remote control ¦ 4 x USB Type B remote control ¦ 4 x USB Type B common access card (CAC) ¦ 1 x DVI-D (dual link) 29 pin DVI console ¦ 2 x USB Type A console ¦ 1 x audio output mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | CCC, NIAP PP 4.0 |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 110-240 V (50 - 60 Hz) |
| Electric Current Required | 1 A |
| Software / System Requirements | |
| OS Required | Apple MacOS 9.0 or later, FreeBSD 3.51 or later, IBM AIX 4.3, Linux Kernel 2.6.x, Mandrake Linux 9.0 or later, Microsoft DOS 6.2 or later, Microsoft Windows 7 / 8 / 10 / 11, Novell NetWare 5.0 or later, Red Hat Enterprise Linux 6, SunSoft Solaris 9 or later, SuSE Linux 8.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 16.5 in |
| Height | 4.7 in |
