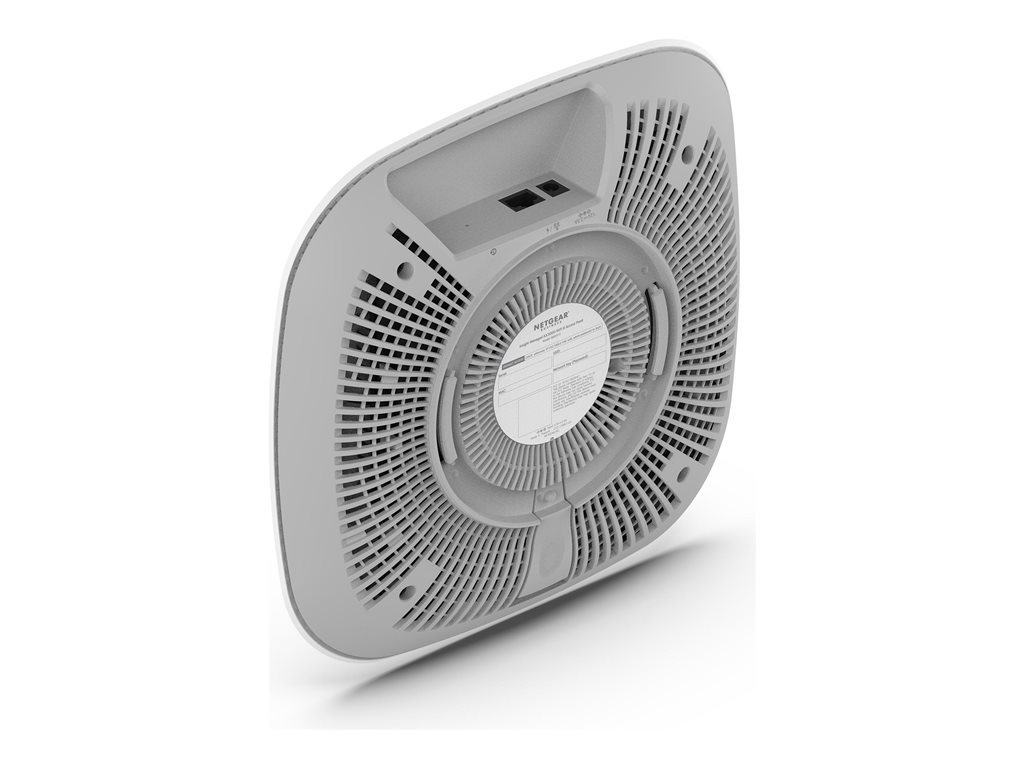

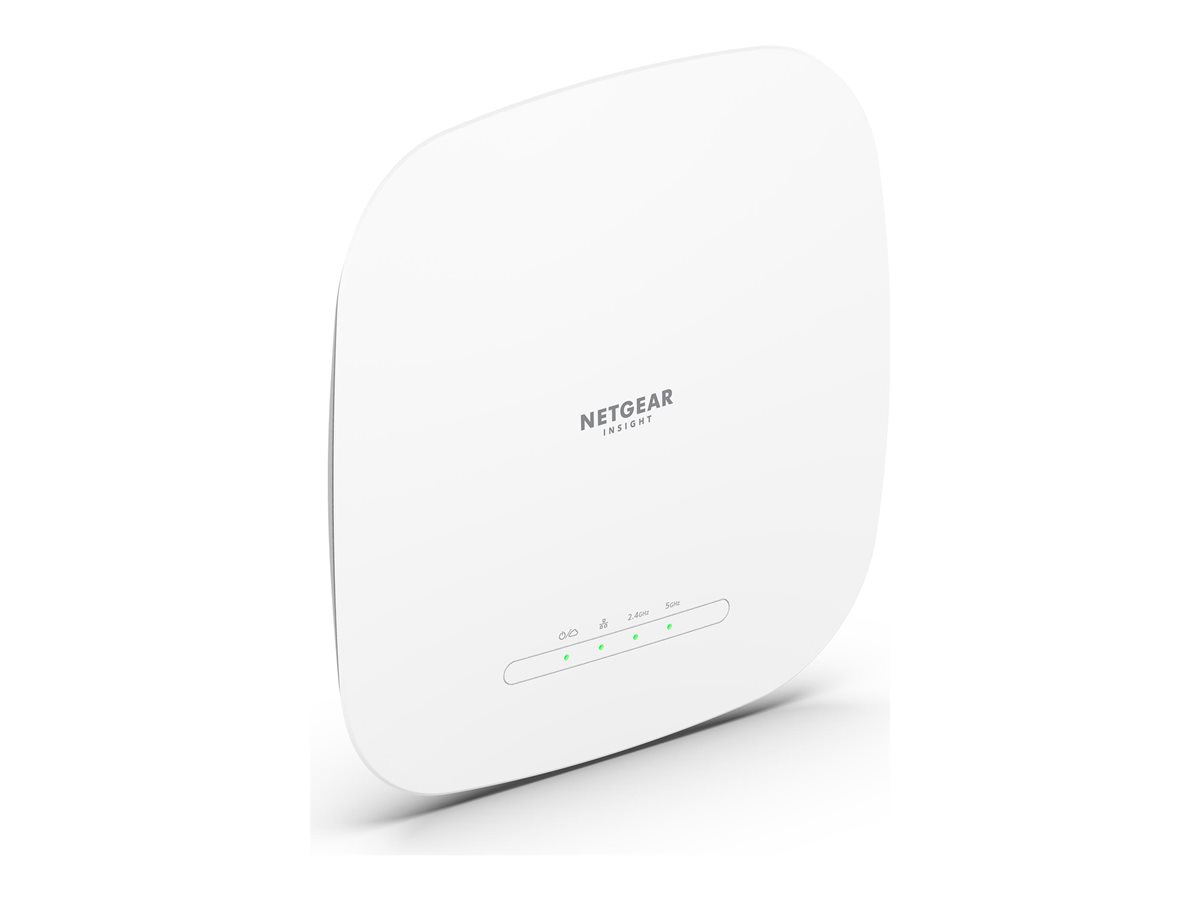

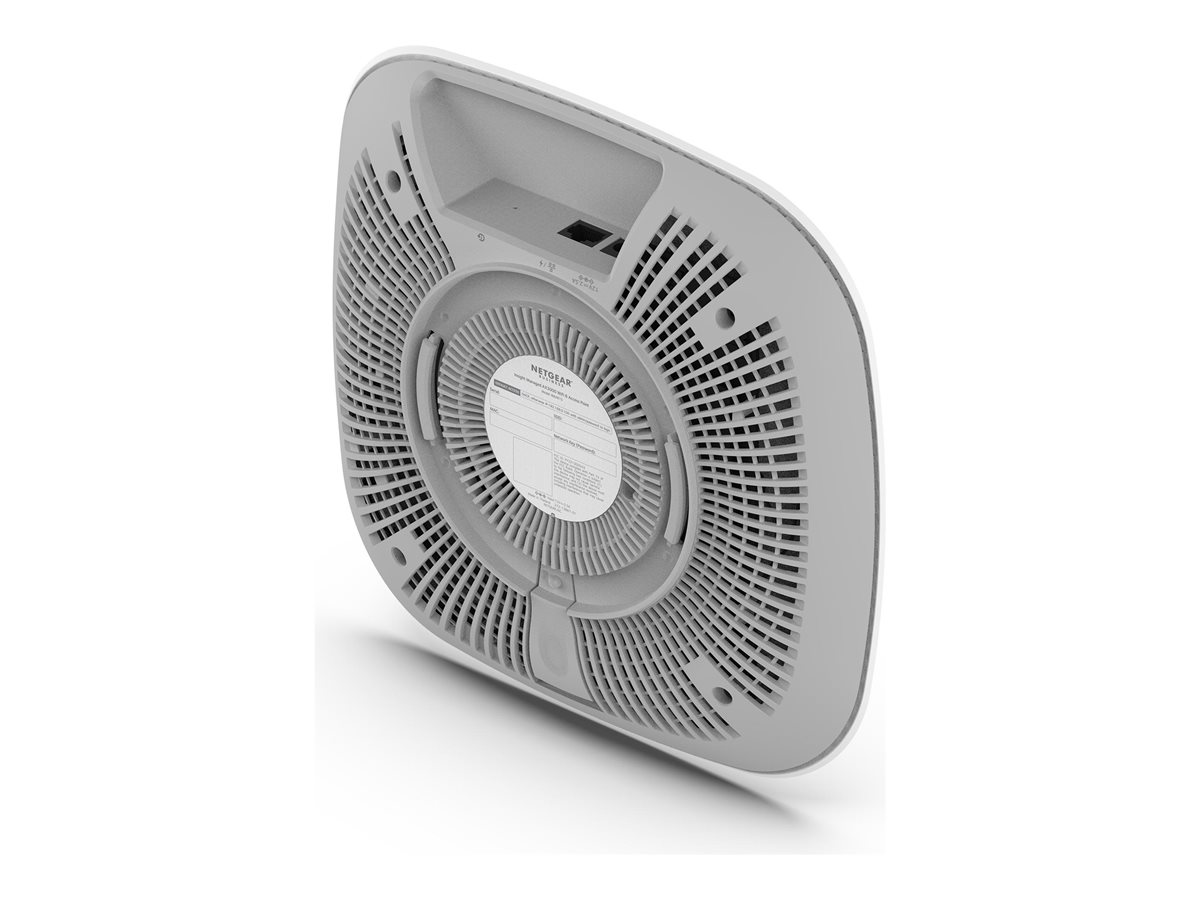

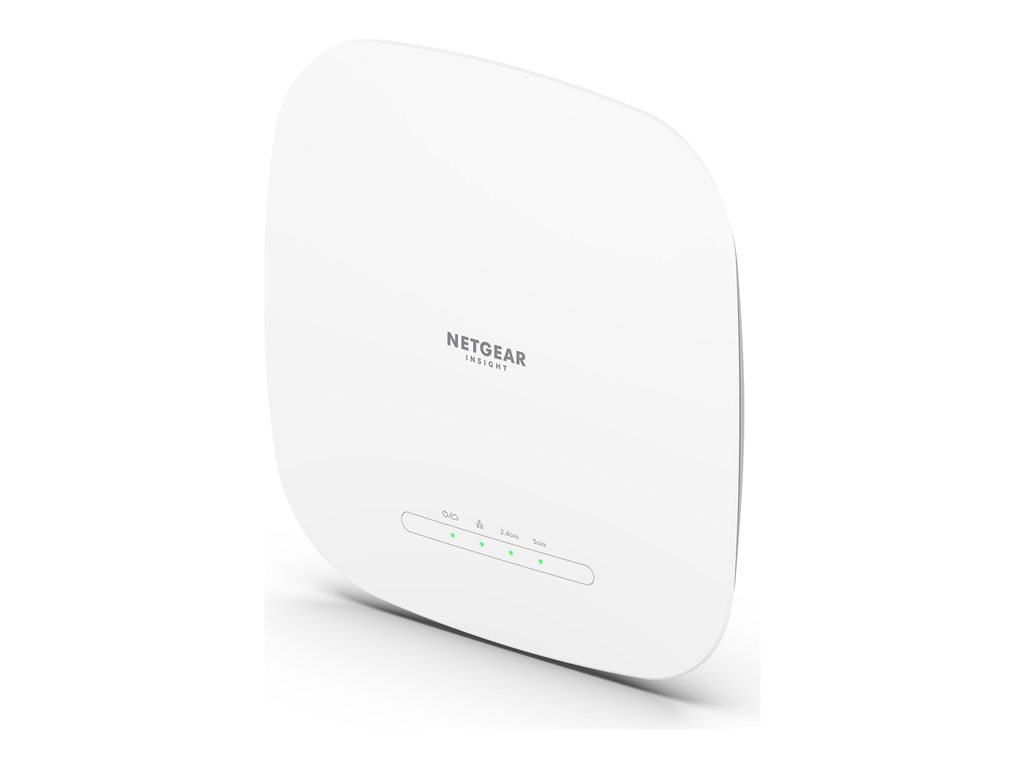

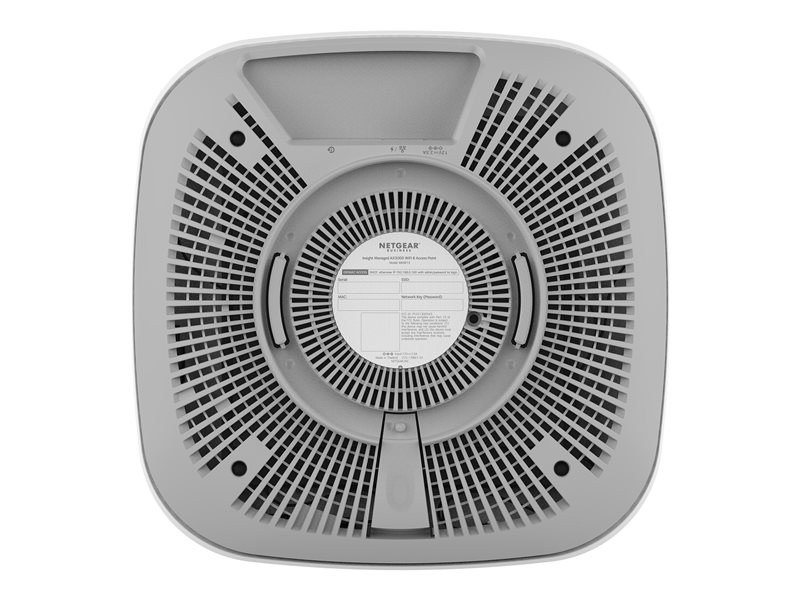

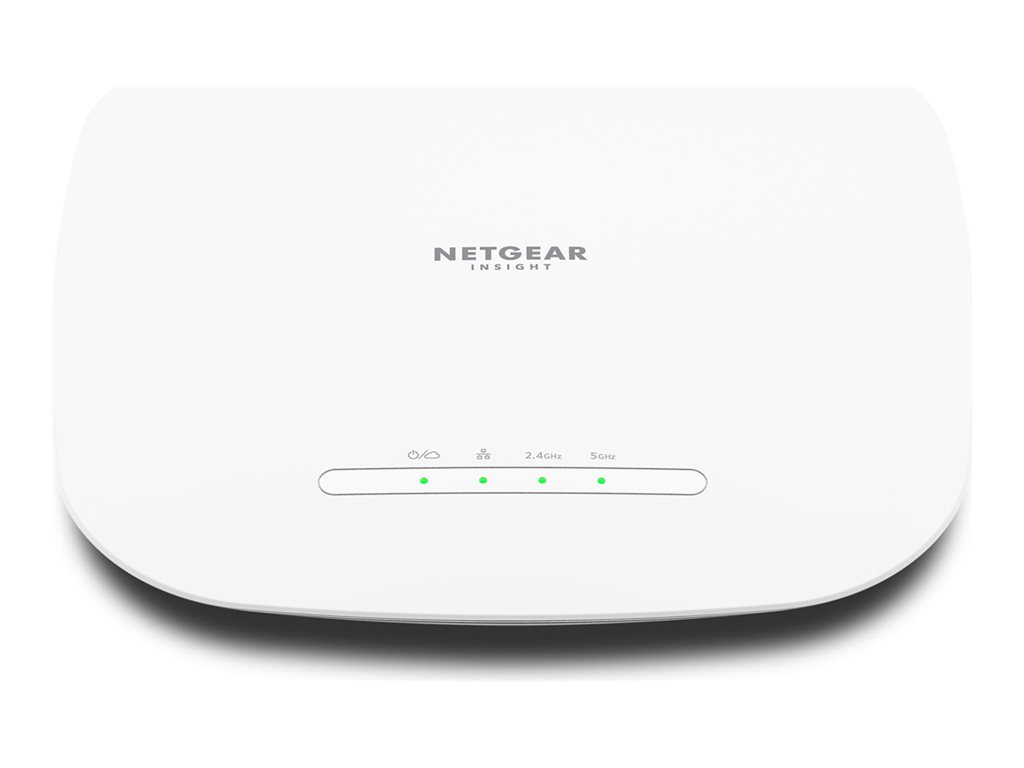

Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - wall / ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR Insight WAX615 - wireless access point - Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable - indoor |
| Localization | United States |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 2400 Mbps ¦ Maximum throughput (2.4 GHz): 600 Mbps |
| Capacity | Maximum number of users: 256 ¦ Concurrent users: 60 ¦ SSIDs total: 8 ¦ Streams: 4 |
| Included Accessories | Wall/ceiling mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 9.5 in x 9.5 in x 1.6 in |
| Weight | 25.64 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 9.5 in |
| Depth | 9.5 in |
| Height | 1.6 in |
| Weight | 25.64 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day ¦ Technical support - 90 days |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 2400 Mbps ¦ Maximum throughput (2.4 GHz): 600 Mbps |
| Capacity | Maximum number of users: 256 ¦ Concurrent users: 60 ¦ SSIDs total: 8 ¦ Streams: 4 |
| Wi-Fi Rating | AX3000 |
| Status Indicators | Power, LAN, 2.4/5 GHz |
| Features | VLAN support, manageable, MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, SSH support, LLDP support, Transmit Power Control (TPC), MU-MIMO technology, bidirectional, band steering, dual band, Advanced Beamforming+, Orthogonal Frequency Division Multiplexing (OFDM), WDS repeater mode, bridge mode, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT), BSS Coloring |
| Encryption Algorithm | SSL, TLS, PEAP, TTLS, WPA, WPA2, WPA2-Enterprise, WPA3 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Software / System Requirements | |
| Software Included | NETGEAR Insight (1 year subscription) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Antenna | |
| Antenna | Internal |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
