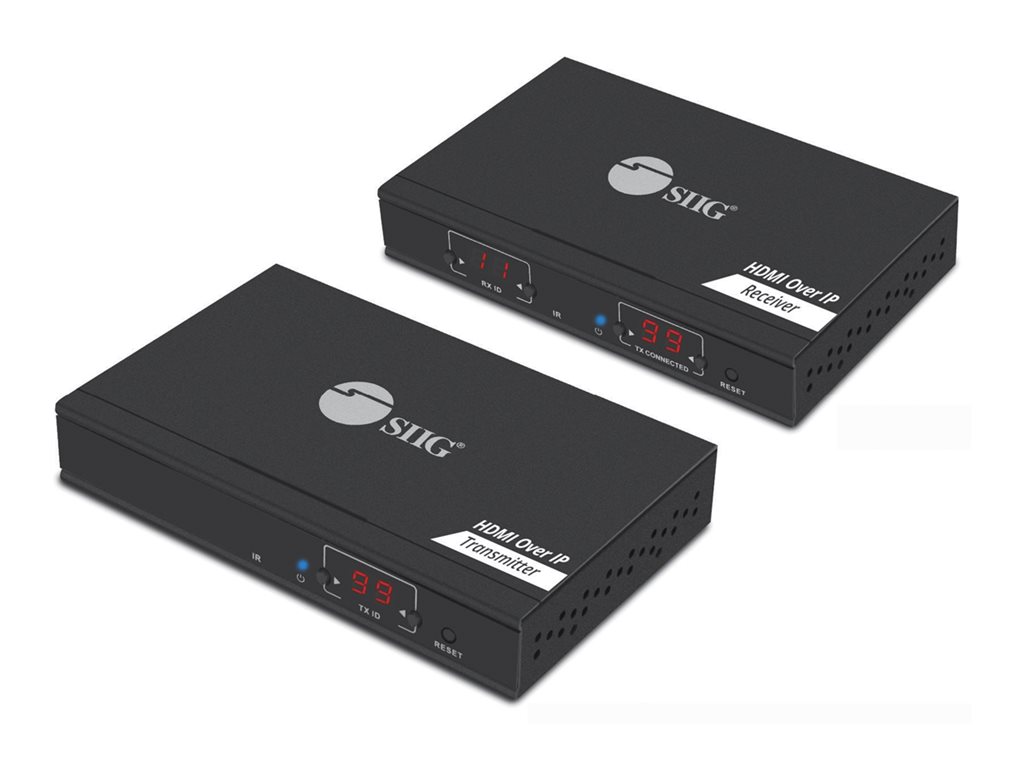

Video/audio/infrared/serial extender - RS-232, HDMI, infrared, HDbitT - over CAT 5e/6/7 - up to 394 ft
| Main Specifications | |
|---|---|
| Product Description | SIIG Full HD HDMI Over IP Extender Kit - video/audio/infrared/serial extender - RS-232, HDMI, infrared, HDbitT |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Data Link Protocol | RS-232, HDMI, infrared, HDbitT |
| Transmission Medium | CAT 5e/6/7 |
| Max Transfer Distance | 394 ft |
| Power | AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x IR (transmitter) - mini jack ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x RS-232 (transmitter) - 3 pin terminal block ¦ 1 x IR (receiver) - mini jack ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x RS-232 (receiver) - 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

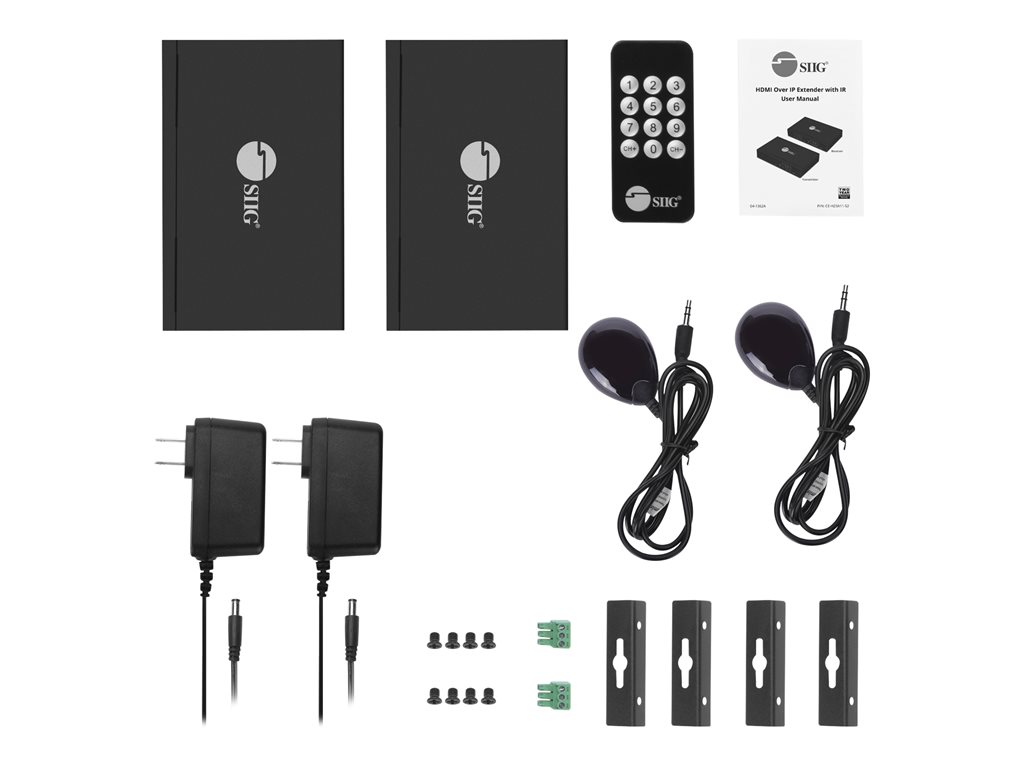

| Included Accessories | Remote control, 2 x 3-pin Phoenix connectors |
| Cables Included | 1 x IR emitter cable ¦ 1 x IR receiver cable |
| Compliant Standards | RoHS, REACH, HDCP 1.4 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, infrared, HDbitT |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 394 ft |
| Features | HDCP compliant, reset button, 720p resolution support, 1080p resolution support, 1080i resolution support, built-in H.264 encoder, switch button, HDMI loop out |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 5.3 in x 3.3 in x 0.9 in / 9.6 oz ¦ Receiver: 5.3 in x 3.3 in x 0.9 in / 9.6 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 3.1 in |
| Shipping Height | 6.9 in |
| Shipping Weight | 2.36 lbs |
