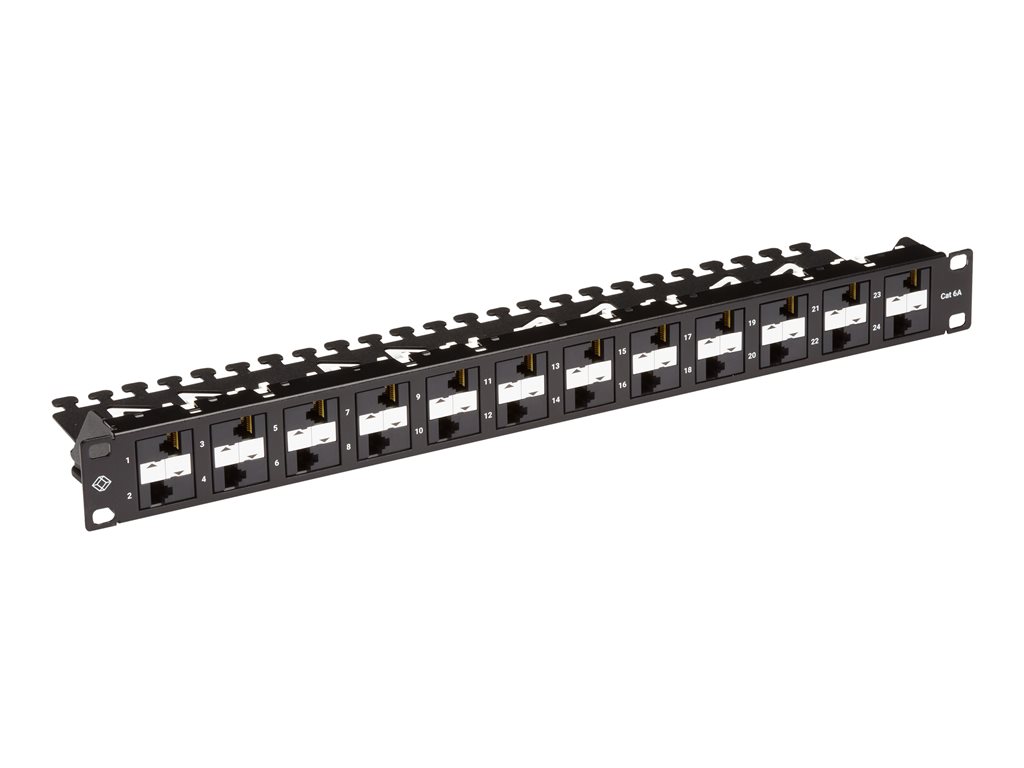

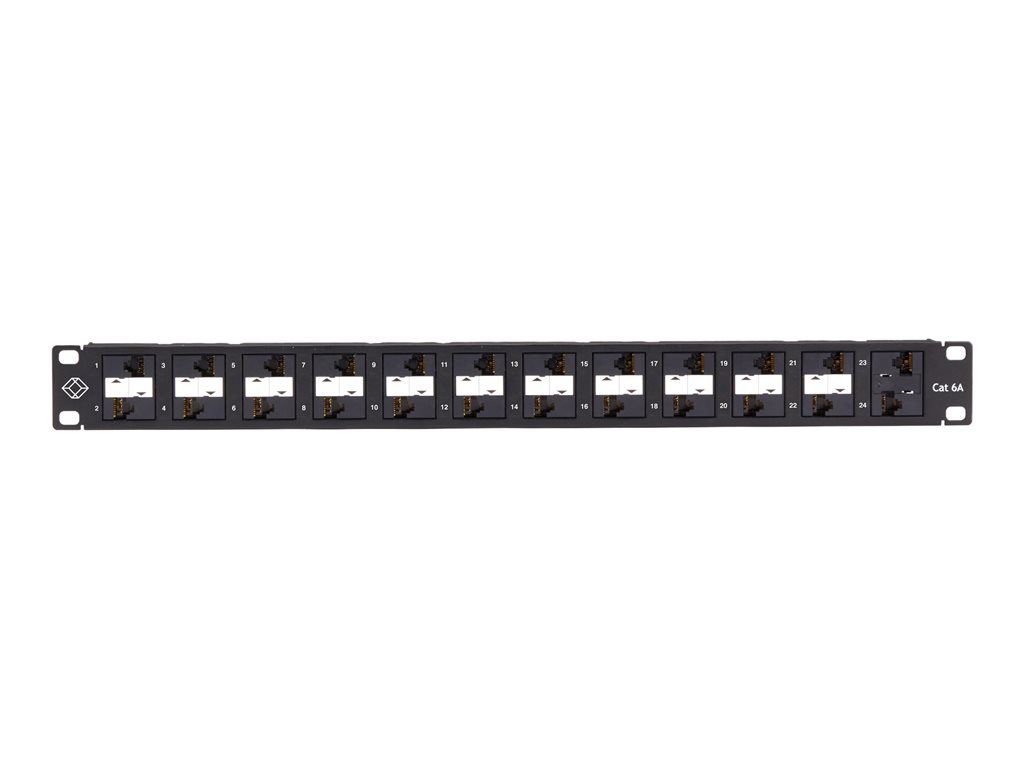

Patch panel - rack mountable, cabinet mountable - CAT 6a - black - 1U - 24 ports - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box patch panel - 1U - TAA Compliant |
| Product Type | Patch panel - CAT 6a |
| Placing / Mounting | Rack mountable, cabinet mountable |
| Package Content | 24 x 4" cable ties, 4 x 10x32 cup head screws, 4 x 12x24 cup head screws, 48-pack stuffer caps, cable management bar |
| Dimensions (WxDxH) | 19 in x 4.3 in x 1.8 in |
| Weight | 30.68 oz |
| Product Material | SECC metal |
| Color | Black |
| Port Qty | 24 ports |
| Height (Rack Units) | 1U |
| Wiring Scheme | T568A/B |
| Compliant Standards | ANSI/TIA-568-C.2, IEC 60603-7, IEC 60512-99-001, ANSI/TIA-1096-A, UL 1863, ETL, FCC part 68 subpart F, RoHS, UL 94 V-0 |
| TAA Compliant | Yes |
| General | |
| Product Type | Patch panel - CAT 6a |
| Placing / Mounting | Rack mountable, cabinet mountable |
| Package Content | 24 x 4" cable ties, 4 x 10x32 cup head screws, 4 x 12x24 cup head screws, 48-pack stuffer caps, cable management bar |
| Product Material | SECC metal |
| Height (Rack Units) | 1U |
| Width | 19 in |
| Depth | 4.3 in |
| Height | 1.8 in |
| Weight | 30.68 oz |
| Enclosure Color | Black |
| Miscellaneous | |
| Compliant Standards | ANSI/TIA-568-C.2, IEC 60603-7, IEC 60512-99-001, ANSI/TIA-1096-A, UL 1863, ETL, FCC part 68 subpart F, RoHS, UL 94 V-0 |
| TAA Compliant | Yes |
| Cabling & Wiring | |
| Port Qty | 24 ports |
| Termination Type | 110 type termination, IDC |
| Wiring Scheme | T568A/B |
| Features | PoE+ support, #22-24 AWG, 50µ gold-plated connectors |
| Connector Provided | 24 x RJ-45 female |
