Video/audio/infrared/serial extender - receiver - HDBaseT, RS-232, HDMI - over CAT 5/5e/6/7 - up to 558 ft
| Main Specifications | |
|---|---|

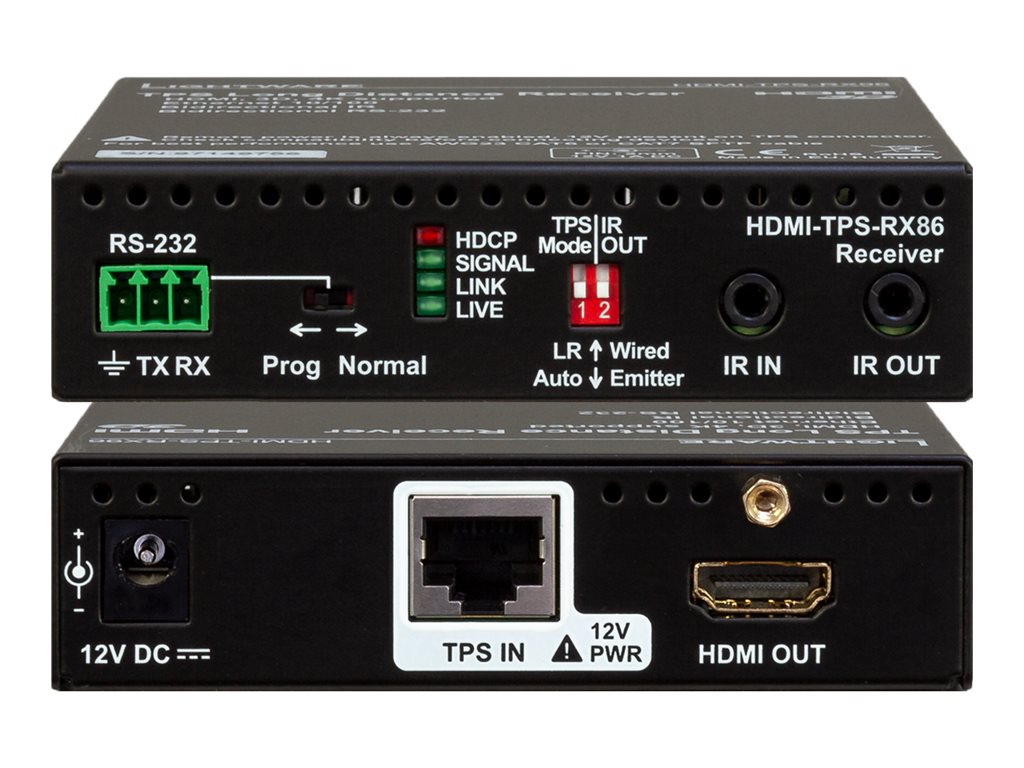

| Product Description | Lightware HDMI-TPS-RX86 - video/audio/infrared/serial extender - HDBaseT, RS-232, HDMI |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDBaseT, RS-232, HDMI |
| Transmission Medium | CAT 5/5e/6/7 |
| Max Transfer Distance | 558 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 4 in x 4 in x 1 in |
| Weight | 11.64 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x IrDA (input) - mini jack female ¦ 1 x IrDA (output) - mini jack female ¦ 1 x HDBaseT - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EDID compatible, HDCP 1.4, DVI 1.0, HDCP 2.2, CEC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT, RS-232, HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Max Transfer Distance | 558 ft |
| Status Indicators | HDCP, signal, link, live |
| Features | HDCP Pass-Through, 3D support, Dolby Digital support, DTS support, EDID Pass-Through, metal housing, 300 MHz pixel clock, bi-directional IR, bi-directional RS-232, 4K30Hz support, RGB 4:4:4, YUV 4:2:0, automatic equalization |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 5.3 Watt |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 11.64 oz |
