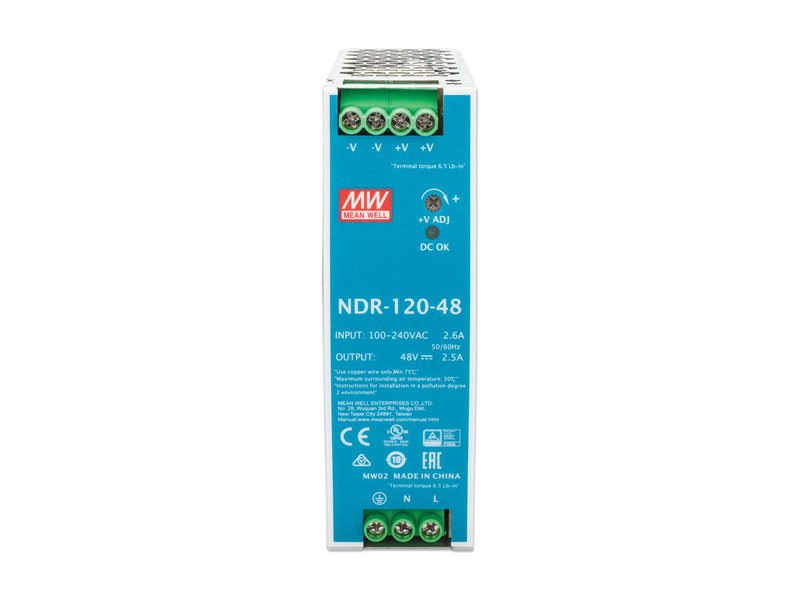

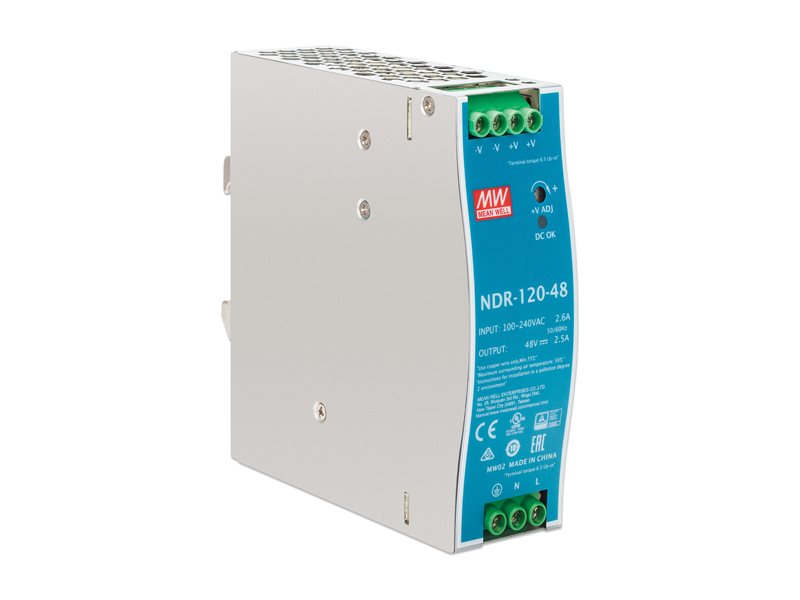

Power adapter (DIN rail mountable) - AC 90-264/ DC 127-370 V - 120 Watt
| Main Specifications | |
|---|---|
| Product Description | Intellinet - power adapter - 120 Watt |
| Device Type | Power adapter - DIN rail mountable |
| Weight | 21.16 oz |
| Input Voltage | AC 90-264/ DC 127-370 V |
| Output Voltage | 48 V |
| Power Capacity | 120 Watt |
| Included Accessories | DIN-rail brackets |
| Dimensions (WxDxH) | 1.6 in x 4.4 in x 4.9 in |
| General | |
| Device Type | Power adapter - DIN rail mountable |
| Miscellaneous | |
| Included Accessories | DIN-rail brackets |
| Features | Short-circuit protection, overload protection, overvoltage protection, overheat protection |
| Compliant Standards | CISPR 22, EN 50082-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61204-3, EN55022, EN55024, UL 508, EN 60950-1 |
| Power Device | |
| Input Voltage | AC 90-264/ DC 127-370 V |
| Frequency Required | 47 - 63 Hz |
| Output Voltage | 48 V |
| Max Electric Current | 2.5 A |
| Power Capacity | 120 Watt |
| Efficiency | 89% |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 4.4 in |
| Height | 4.9 in |
| Weight | 21.16 oz |
