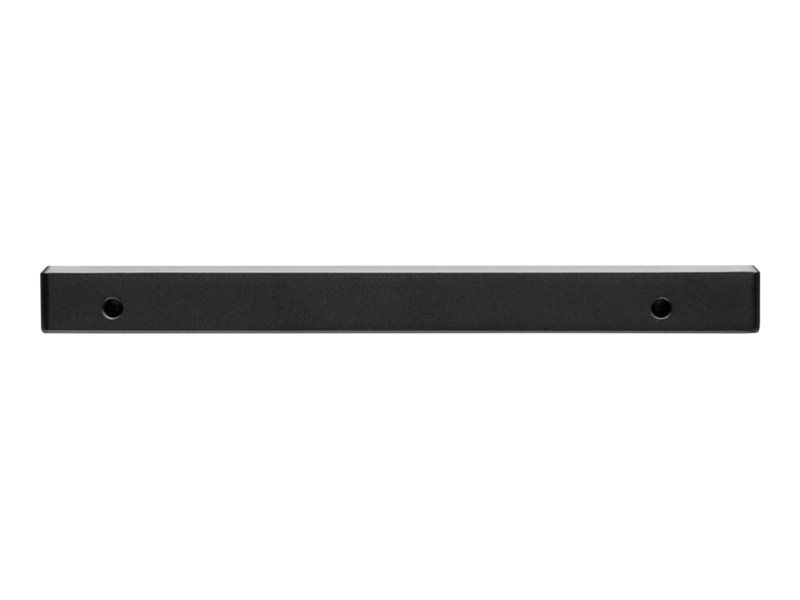

Interface adapter - M.2 - PCIe 4.0 x4 (NVMe) - U.2
| Main Specifications | |
|---|---|
| Product Description | OWC U2 ShuttleOne - interface adapter - PCIe 4.0 x4 (NVMe) - U.2 |
| Device Type | Interface adapter - internal |
| Bus Type | U.2 |
| Compatible Bay | 1 2.5" |
| Hard Drive Form Factor Compatibility | M.2 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 1 |
| Dimensions (WxDxH) | 2.8 in x 4 in x 0.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Interface adapter - internal |
| Hard Drive Form Factor Compatibility | M.2 |
| Host Bus | U.2 |
| Expansion / Connectivity | |
| Interfaces | 1 x M.2 Card - M.2 M key |
| Connections | 1 x U.2 NVMe |
| Compatible Bay | 1 x internal 2.5" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Interface | PCIe 4.0 x4 (NVMe) |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 1 |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 4 in |
| Height | 0.4 in |
