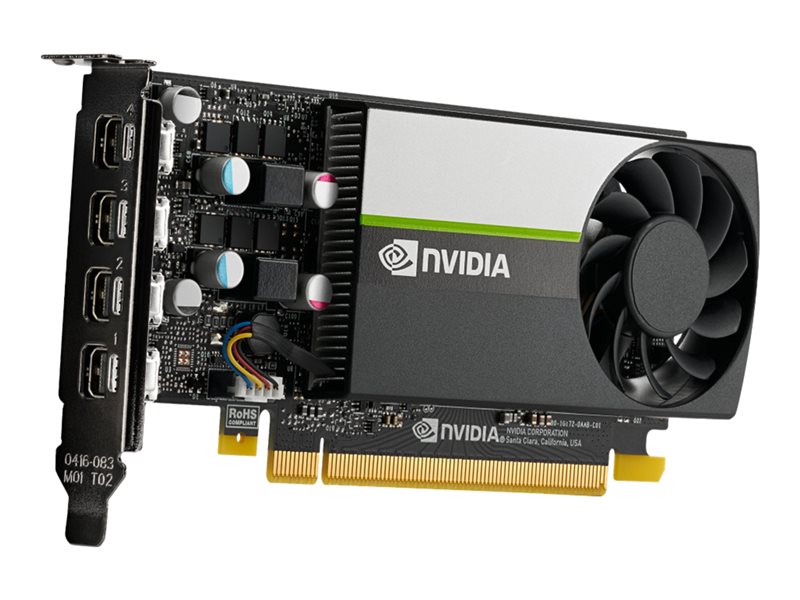

Graphics card - Quadro RTX T1000 - 8 GB GDDR6 - PCIe 3.0 x16 - 4 x Mini DisplayPort - for ThinkSystem SR250 V2 7D7Q, 7D7R; ST250 V2 7D8F, 7D8G; ST50 V2 7D8J, 7D8K
| Main Specifications | |
|---|---|
| Product Description | NVIDIA Quadro RTX T1000 - graphics card - Quadro RTX T1000 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA Quadro RTX T1000 |
| Memory | 8 GB GDDR6 |
| CUDA Cores | 896 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz |
| Interfaces Details | 4 x Mini DisplayPort |
| API Supported | DirectCompute, CUDA, OpenCL 4.68, DirectX 12.07, Shader Model 5.17, Vulkan 1.2 |
| Dimensions (WxDxH) | 6 in x 2 in |
| Designed For | ThinkSystem SR250 V2 7D7Q, 7D7R; ST250 V2 7D8F, 7D8G; ST50 V2 7D8J, 7D8K |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA Quadro RTX T1000 |
| CUDA Cores | 896 |
| Max Resolution | 7680 x 4320 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz |
| Interfaces Details | 4 x Mini DisplayPort |
| API Supported | DirectCompute, CUDA, OpenCL 4.68, DirectX 12.07, Shader Model 5.17, Vulkan 1.2 |
| Features | Active Thermal Solution, NVIDIA Mosaic, NVIDIA RTX Experience, DisplayPort with Audio |
| Memory | |
| Size | 8 GB |
| Technology | GDDR6 SDRAM |
| Bus Width | 128-bit |
| Bandwidth | 160 GBps |
| Miscellaneous | |
| Power Consumption Operational | 50 watt |
| Software Included | NVIDIA RTX Desktop Manager |
| Compliant Standards | HDCP 2.2 |
| Depth | 6 in |
| Height | 2 in |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SR250 V2 7D7Q, 7D7R ¦ Lenovo ThinkSystem ST250 V2 7D8F, 7D8G ¦ Lenovo ThinkSystem ST50 V2 7D8J, 7D8K |
