SSD - 1 TB - internal - 2.5" - SATA 6Gb/s - blue
| Main Specifications | |
|---|---|

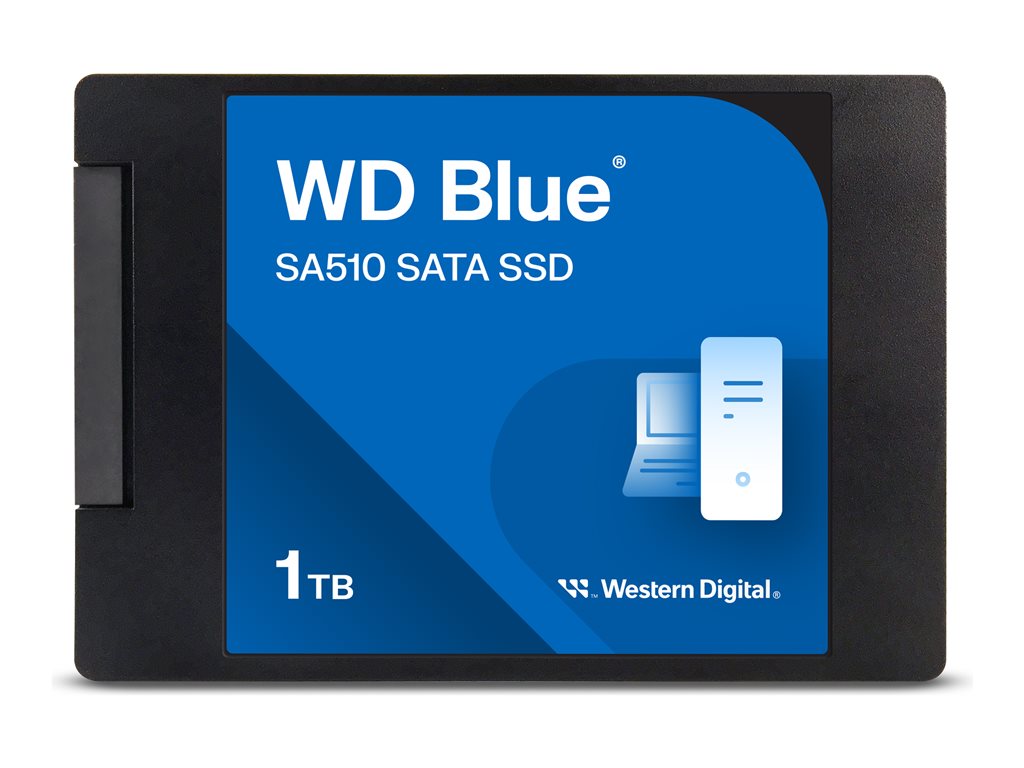

| Product Description | WD Blue SA510 WDS100T3B0A - SSD - 1 TB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Enclosure Color | Blue |
| Dimensions (WxDxH) | 2.7 in x 3.9 in x 0.3 in |
| Weight | 1.22 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Width | 2.7 in |
| Depth | 3.9 in |
| Height | 0.3 in |
| Weight | 1.22 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, TUV, KC, BSMI, VCCI, Morocco |
| Enclosure Color | Blue |
| Power | |
| Power Consumption | 60 mW (active) ¦ 1800 mW (read) ¦ 2000 mW (write) ¦ 36 mW (sleep) ¦ 12 mW (DevSleep) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 gRMS @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 gRMS @ 7-800 Hz |
| Performance | |
| SSD Endurance | 400 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 82000 IOPS |
| Reliability | |
| MTBF | 1,750,000 hours |
| Software & System Requirements | |
| Software Included | Acronis True Image, Dropbox Professional (free for 3 months) |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
