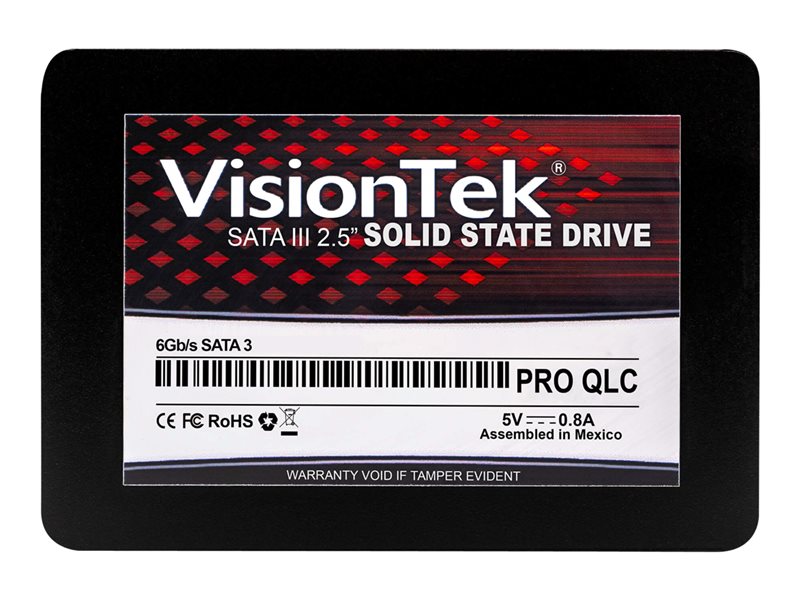

SSD - 250 GB - internal - 2.5" - SATA 6Gb/s
| Main Specifications | |
|---|---|
| Product Description | VisionTek PRO QLC - SSD - 250 GB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 250 GB |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | SLC cache, StaticDataRefresh Technology, Data Shaping, TRIM support, Advanced LDPC ECC Technology, Device Sleep support, Native Command Queuing (NCQ), Silicon Motion SM2259 controller, Secure Erase function, End-to-end data protection, Dynamic and Static Wear Leveling, S.M.A.R.T. |
| Dimensions (WxDxH) | 2.7 in x 4 in x 0.3 in |
| Weight | 2.12 oz |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 250 GB |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Bytes per Sector | 512 |
| Features | SLC cache, StaticDataRefresh Technology, Data Shaping, TRIM support, Advanced LDPC ECC Technology, Device Sleep support, Native Command Queuing (NCQ), Silicon Motion SM2259 controller, Secure Erase function, End-to-end data protection, Dynamic and Static Wear Leveling, S.M.A.R.T. |
| Width | 2.7 in |
| Depth | 4 in |
| Height | 0.3 in |
| Weight | 2.12 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Consumption | 2.1 watt (active) ¦ 0.09 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% RH |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.361 |
| SSD Endurance | 380 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 445 MBps (write) |
| Maximum 4KB Random Write | 60000 IOPS |
| Maximum 4KB Random Read | 30000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" |
