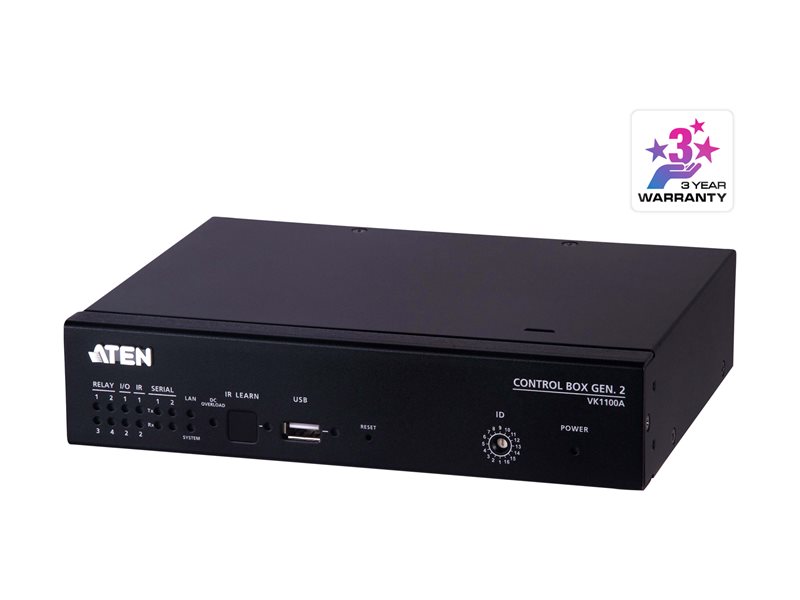

Remote control device - Gen. 2 - RS-232, RS-422, RS-485, 1GbE
| Main Specifications | |
|---|---|
| Product Description | ATEN VK1100A - remote control device - Gen. 2 |
| Device Type | Remote control device |
| Form Factor | External |
| RAM | 512 MB |
| Flash Memory | 8 GB |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Included Accessories | 4 x foot pad set, terminal block kit, power cord |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.9 in x 6.5 in x 1.7 in |
| Weight | 2.62 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Remote control device |
| Width | 7.9 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Weight | 2.62 lbs |
| Expansion / Connectivity | |

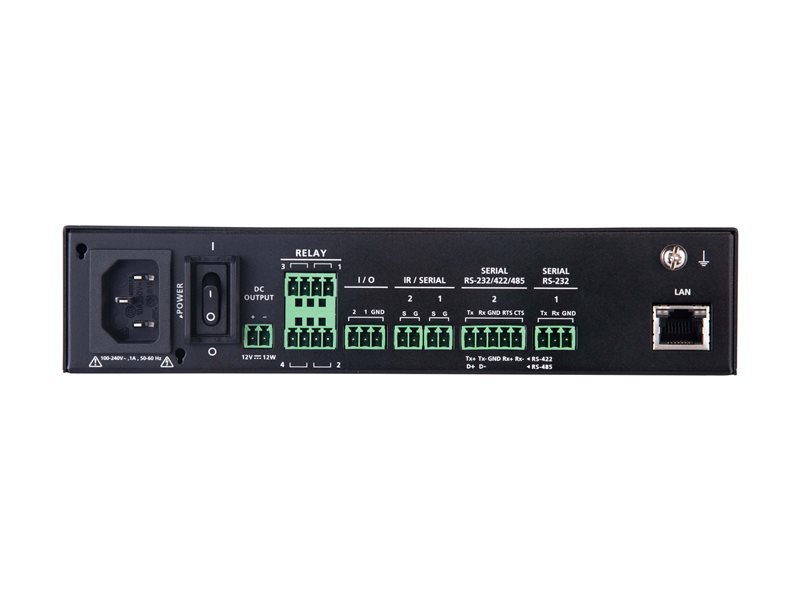

| Interfaces | 1 x RS-232/422/485 - terminal block ¦ 2 x RS-232/IrDA - terminal block ¦ 2 x digital input/output - terminal block ¦ 1 x 1000Base-T - RJ-45 ¦ 4 x relay - terminal block ¦ 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 x foot pad set, terminal block kit, power cord |
| Compliant Standards | RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | ICMP/IP, DHCP, TCP/IP, Telnet |
| Remote Management Protocol | HTTPS, SSH, HTTP |
| Features | PJLink compatible, ONVIF support |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 4.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 512 MB |
| Flash Memory | 8 GB |
