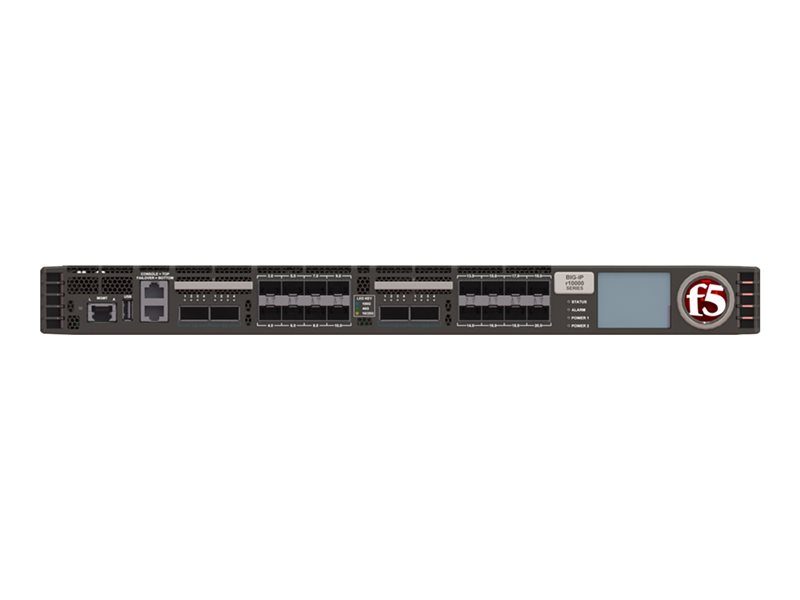

Security appliance - Best Bundle (BIG-IP LTM, DNS, AFM, WAF, APM) - 25GbE, 40GbE, 100GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | F5 rSeries r10600 - security appliance - Best Bundle (BIG-IP LTM, DNS, AFM, WAF, APM) |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 1U |
| RAM | 256 GB |
| Hard Drive | 1 TB x 2 - U.2 |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Request rate (layer 7): 4500000 requests per second ¦ Connection rate (layer 4): 1900000 connections per second ¦ Request rate (layer 4 HTTP): 36000000 requests per second ¦ Layer 4 throughput: 190 Gbps ¦ Layer 7 throughput: 125 Gbps ¦ Bulk encryption: 75 Gbps ¦ Hardware compression: 80 Gbps ¦ SYN/DDoS protection: 160000000 cookies per second |
| Capacity | Concurrent Layer 4 connections: 145000000 ¦ SSL transactions per second (RSA 2K): 115000 ¦ SSL transactions per second (ECDHE P-256-ECDSA): 90000 ¦ SSL transactions per second (ECDHE P-256-RSA-2K): 90000 ¦ Tenants: 24 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.4 in x 30.6 in x 1.7 in |
| Weight | 36 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 30.6 in |
| Height | 1.7 in |
| Weight | 36 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 ¦ 1 x serial / console ¦ 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28 ¦ 16 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28 |
| Miscellaneous | |
| Compliant Standards | ANSI/UL 60950-1-2014, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, CSA C22.2 No. 62368-1-14, UL 62368-1 Second Edition, FCC Part 15 A, IC Class A, VCCI Class A, EN 55032:2012/AC:2013 Class A, EN 55035:2017, EN300 386:2012:V1.6.1 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Request rate (layer 7): 4500000 requests per second ¦ Connection rate (layer 4): 1900000 connections per second ¦ Request rate (layer 4 HTTP): 36000000 requests per second ¦ Layer 4 throughput: 190 Gbps ¦ Layer 7 throughput: 125 Gbps ¦ Bulk encryption: 75 Gbps ¦ Hardware compression: 80 Gbps ¦ SYN/DDoS protection: 160000000 cookies per second |
| Capacity | Concurrent Layer 4 connections: 145000000 ¦ SSL transactions per second (RSA 2K): 115000 ¦ SSL transactions per second (ECDHE P-256-ECDSA): 90000 ¦ SSL transactions per second (ECDHE P-256-RSA-2K): 90000 ¦ Tenants: 24 |
| Encryption Algorithm | SSL, TLS |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 680 watt |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Software / System Requirements | |
| Software Included | Best Bundle (BIG-IP LTM, DNS, AFM, WAF, APM) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 256 GB |
| Hard Drive | SSD 1 TB x 2 - U.2 |
| RAID Level | RAID 1 |
