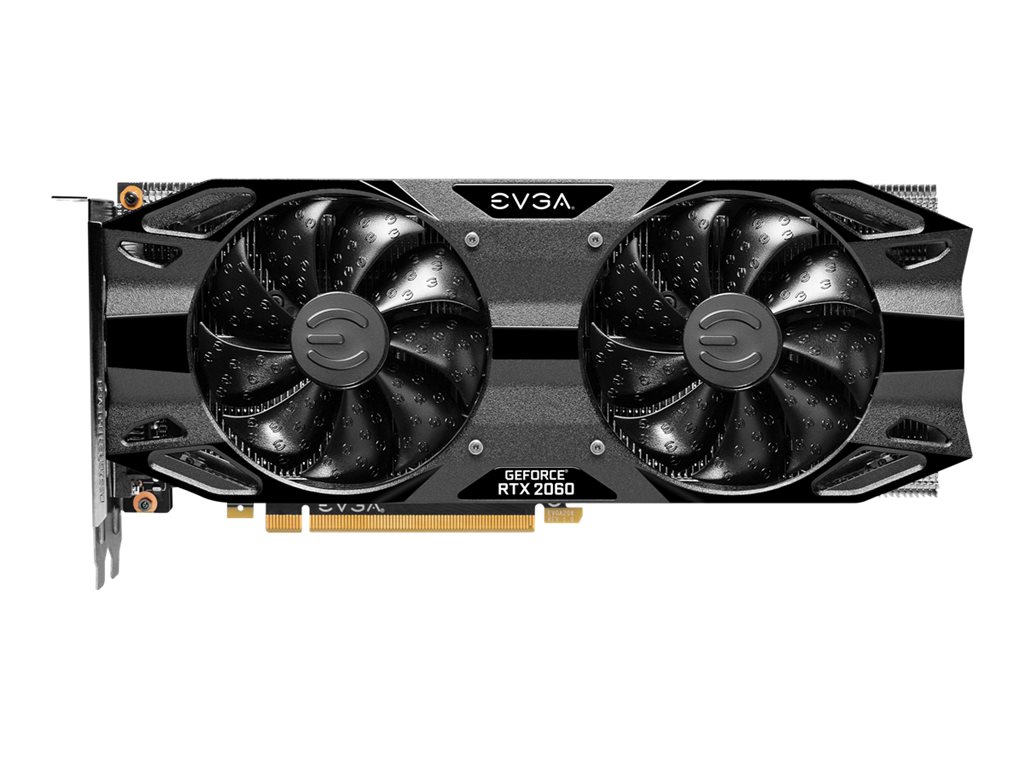

Graphics card - GF RTX 2060 - 12 GB GDDR6 - PCIe 3.0 x16 - DisplayPort, HDMI, DVI
| Main Specifications | |
|---|---|
| Product Description | EVGA GeForce RTX 2060 XC BLACK GAMING - graphics card - GF RTX 2060 - 12 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 2060 |
| Memory | 12 GB GDDR6 |
| Boost Clock | 1650 MHz |
| CUDA Cores | 2176 |
| Effective Memory Clock | 14000 MHz |
| Memory Interface | 192-bit |
| Interfaces Details | DisplayPort ¦ HDMI ¦ DVI-D (dual link) |
| API Supported | DirectX 12 Ultimate, Vulkan, OpenGL 4.6 |
| Dimensions (WxDxH) | 10.5 in x 4.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 2060 |
| Boost Clock | 1650 MHz |
| CUDA Cores | 2176 |
| Interfaces Details | DisplayPort ¦ HDMI ¦ DVI-D (dual link) |
| API Supported | DirectX 12 Ultimate, Vulkan, OpenGL 4.6 |
| Features | Dual Fan Design, 2-slot Fan Cooler, metal backplate, NVIDIA G-Sync ready, NVIDIA Turing GPU architecture, Real-Time Ray Tracing, NVIDIA Highlights, NVIDIA GPU Boost, HDCP |
| Memory | |
| Size | 12 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 14000 MHz |
| Bus Width | 192-bit |
| Bandwidth | 336 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 185 watt |
| Software Included | NVIDIA GeForce Experience, EVGA Precision X1, display drivers |
| Compliant Standards | HDCP 2.2, DisplayPort 1.4 |
| Depth | 10.5 in |
| Height | 4.4 in |
| System Requirements | |
| OS Required | Microsoft Windows 7 / 10 (64-bit) |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
