Label printer - direct thermal - Roll (2.25 in) - 203 dpi - up to 300 inch/min - USB 2.0, NFC, Bluetooth 5.0, Bluetooth 5.0 LE
| Main Specifications | |
|---|---|

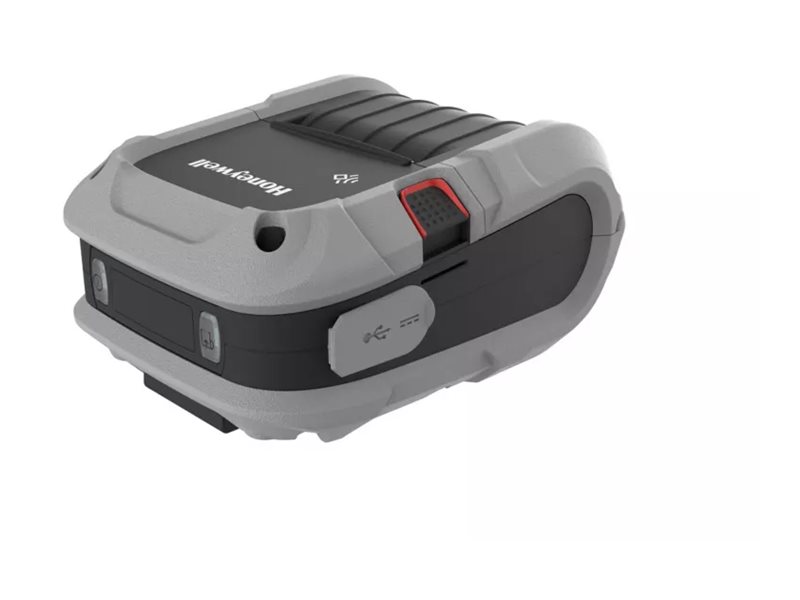

| Product Description | Honeywell RP2F - label printer - B/W - direct thermal |
| Printer Type | Label printer - direct thermal - B/W |
| Weight | 25.39 oz |
| Max Media Size | Roll (2.25 in) |
| Min Media Size (Custom) | 1 in |
| Max Media Size (Custom) | 2.2 in |
| Print Speed | Up to 300 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB 2.0, NFC, Bluetooth 5.0, Bluetooth 5.0 LE |
| RAM Installed (Max) | 256 MB |
| Flash Memory Installed (Max) | 2 GB |
| Language Simulation | Intermec Direct Protocol, Intermec Printer Language (IPL), ZSim2, DPL, Extensible Mark-up Language (XML) |
| Barcodes | AIAG, GM1724, HIBCC, ISBT 128, OGMARS, Postnet, UCC/EAN-128, UPC/EAN extension |
| Media Type | Tags, receipt paper, labels, linerless labels |
| Fonts | Bitmap, OpenType, TrueType |
| Features | Black Mark sensor, gap sensor |
| Networking | Print server |
| Battery | Required 1 lithium ion Included Qty 1 |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 4.6 in x 3 in x 6.3 in |
| General | |
| Printer Type | Label printer - direct thermal - monochrome |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Rugged, USB On-The-Go |
| Compliant Standards | IP54, RoHS, EN55032 Class B, FCC Class B certified, CB, cTUVus |
| Printer | |
| Print Speed | Up to 300 inch/min - max speed |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, NFC, Bluetooth 5.0, Bluetooth 5.0 LE |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | Intermec Direct Protocol, Intermec Printer Language (IPL), ZSim2, DPL, Extensible Mark-up Language (XML) |
| Fonts | Bitmap, OpenType, TrueType |
| Features | Black Mark sensor, gap sensor |
| Barcodes | AIAG, GM1724, HIBCC, ISBT 128, OGMARS, Postnet, UCC/EAN-128, UPC/EAN extension |
| RAM | |
| RAM Installed (Max) | 256 MB |
| Media Handling | |
| Media Type | Tags, receipt paper, labels, linerless labels |
| Max Media Size | Roll (2.25 in) |
| Min Media Size (Custom) | 1 in |
| Max Media Size (Custom) | 2.2 in |
| Media Sizes | Roll (0.98 in - 2.24 in) |
| Max Printing Width | 1.89 in |
| Media Thickness Range | 0.002 in - 0.0063 in |
| Roll Maximum Outer Diameter | 2.3 in |
| Roll Core Diameter | 1 in, 0.75 in, 0.4 in |
| Media Feeders | 1 x manual - 1 roll - Roll (2.25 in) |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | UDP, DHCP, TFTP, Telnet, SNMP, BOOTP, SFTP, FTPS, LDP |
| Security Protocols & Features | WEP, TKIP, RC4, WPA, WPA2, WPA3, AES-CCMP, LEAP, EAP-PEAP, EAP-FAST, EAP-TTLS, EAP-TLS |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Battery | |
| Type | Lithium ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 2500 mAh |
| Flash Memory | |
| Flash Memory | 2 GB |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 3 in |
| Height | 6.3 in |
| Weight | 25.39 oz |
