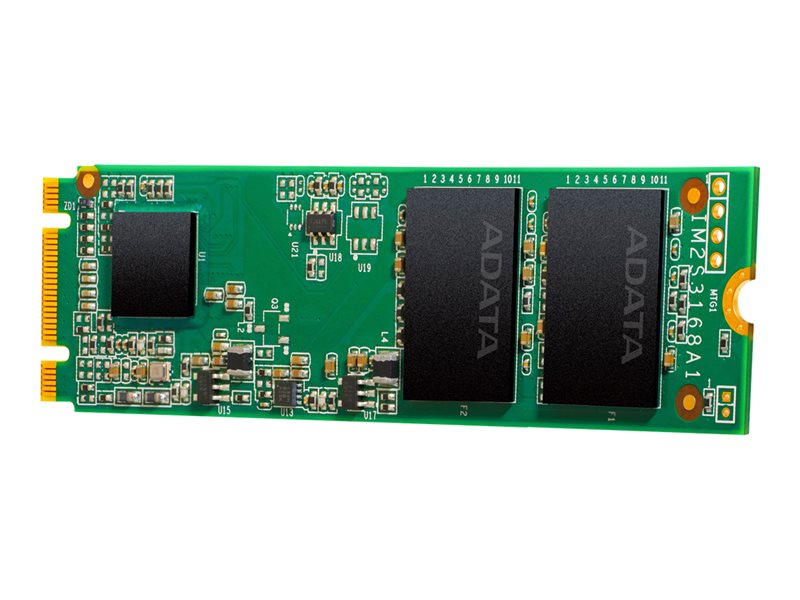

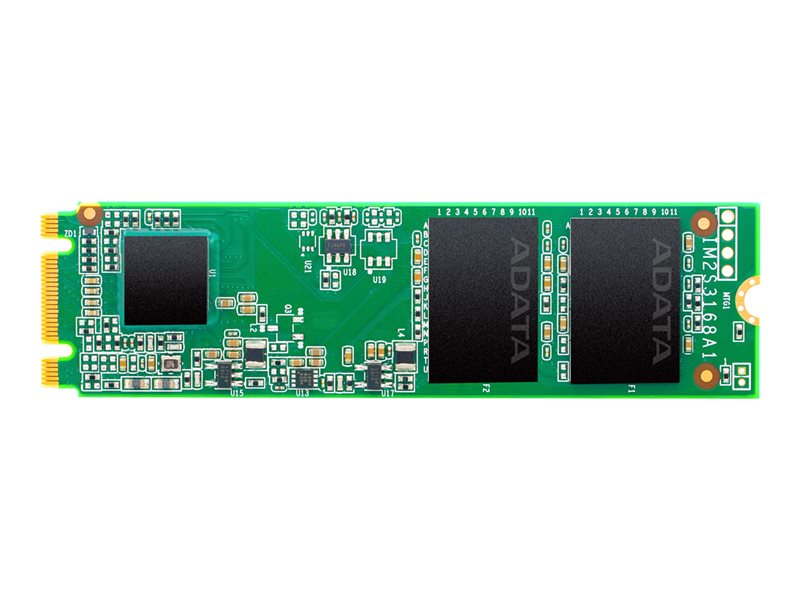

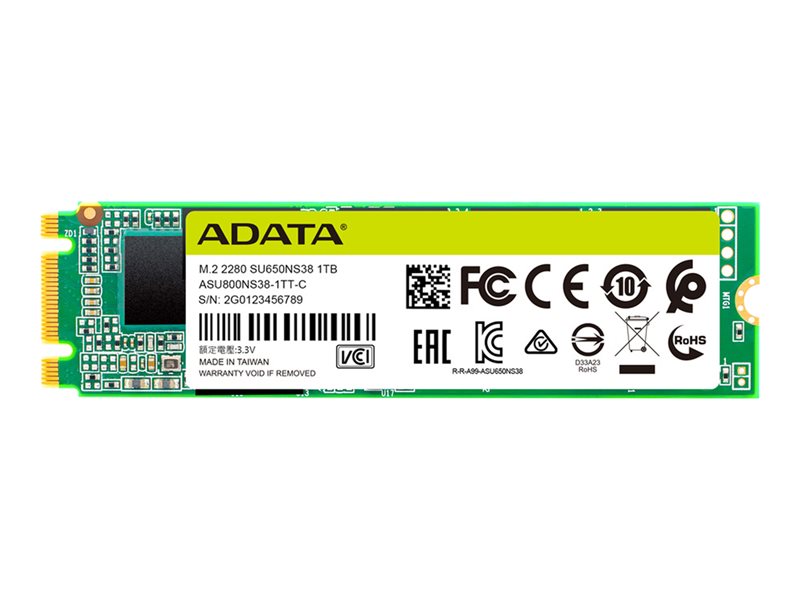

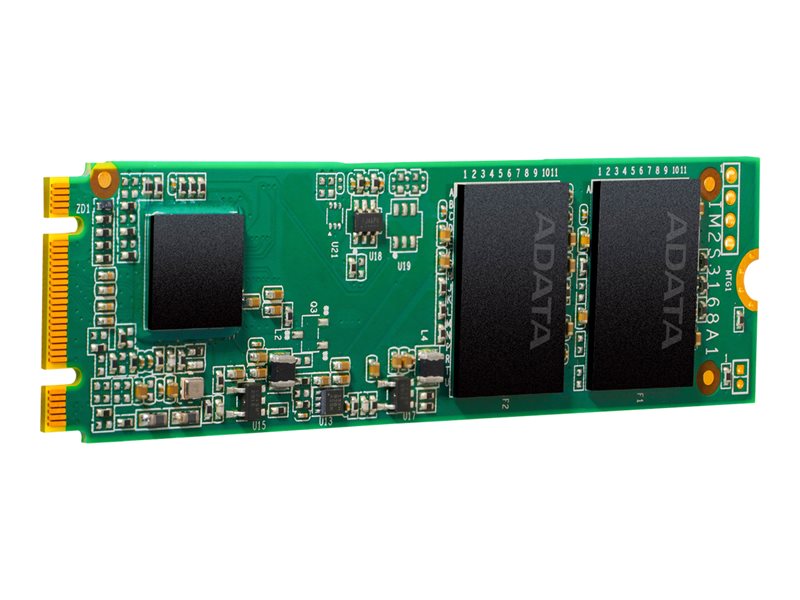

SSD - 1 TB - internal - M.2 2280 - SATA 6Gb/s
| Main Specifications | |
|---|---|
| Product Description | ADATA Ultimate SU650 - SSD - 1 TB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | 3D NAND Technology, Intelligent SLC Caching, Advanced LDPC ECC Technology, TRIM support, Native Command Queuing (NCQ), S.M.A.R.T. |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | 3D NAND Technology, Intelligent SLC Caching, Advanced LDPC ECC Technology, TRIM support, Native Command Queuing (NCQ), S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE, KCC, EAC, VCCI, UKCA |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Performance | |
| SSD Endurance | 420 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 510 MBps (write) |
| Maximum 4KB Random Write | 60000 IOPS |
| Maximum 4KB Random Read | 80000 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| Software & System Requirements | |
| Software Included | SSD Toolbox, Migration Utility |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay | M.2 2280 |
