Power supply (internal) - ATX12V - 80 PLUS Platinum - AC 100-240 V - 1000 Watt
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG-THOR-1000P2-GAMING - power supply - 1000 watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| 80 PLUS Certification | 80 PLUS Platinum |
| Weight | 5.22 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |

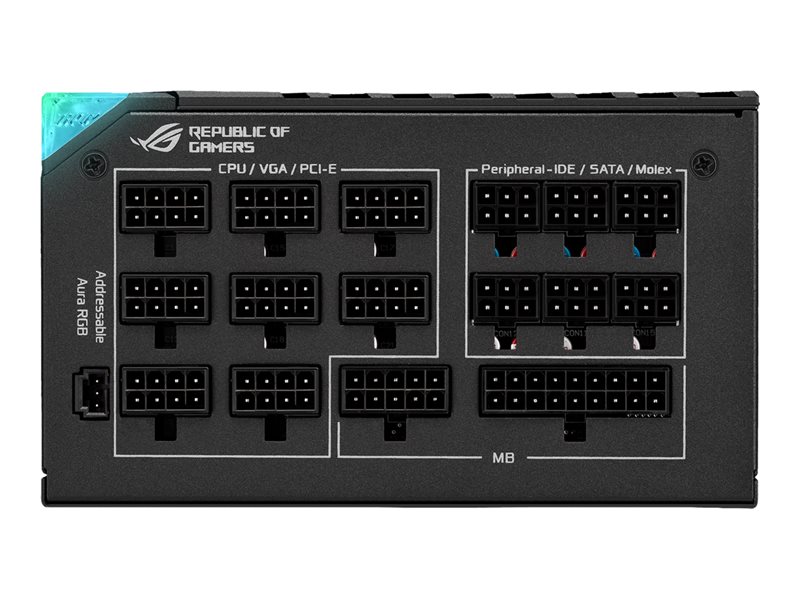

| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 12 pin PCI Express power |
| Modular Cable Management | Yes |
| Cooling System | 135 mm fan |
| Included Accessories | ROG sticker, 6 x ROG cable ties, 12 cable ties |
| Dimensions (WxDxH) | 5.9 in x 7.5 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | ROG sticker, 6 x ROG cable ties, 12 cable ties |
| Cooling System | 135 mm fan |
| Features | Overvoltage protection, overpower protection, undervoltage protection, overcurrent protection, short-circuit protection, thermal protection, Lambda A++ Certification, ROG heatsink, Axial-tech fan design, OLED display, fully modular, ASUS Aura Sync, dual ball bearing cooling fan, 0db Technology |
| Compliant Standards | RoHS |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 12 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.5 in |
| Height | 3.4 in |
| Weight | 5.22 lbs |
