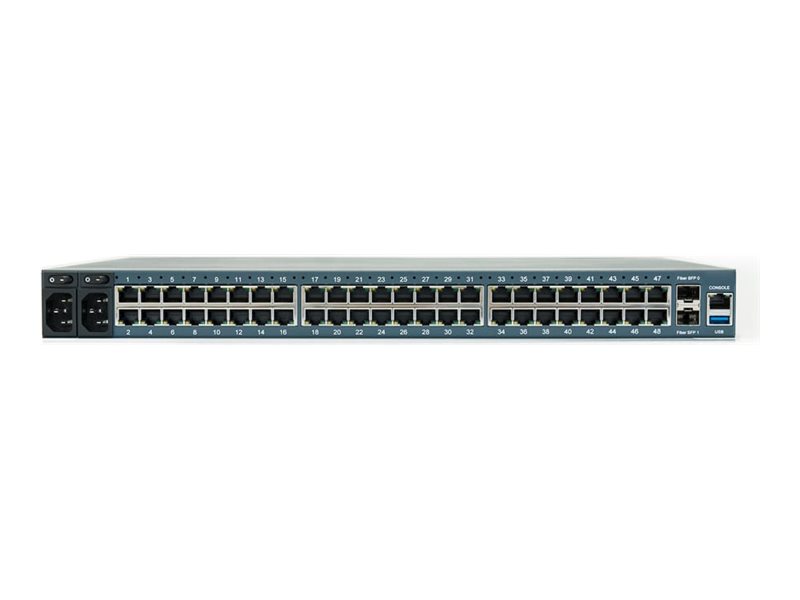

Console server - 96 ports - RS-232, 2.5GbE, 10GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | ZPE Nodegrid Serial Console - console server |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Atom 1.75 GHz |
| RAM | 4 GB |
| Flash Memory | 32 GB |
| Ports Qty | 96 |
| Data Link Protocol | Gigabit Ethernet, RS-232, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Capacity | Port buffers: 20 MB |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 12.3 in x 17.4 in x 1.7 in |
| Weight | 10.8 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | Buzzer |
| Width | 12.3 in |
| Depth | 17.4 in |
| Height | 1.7 in |
| Weight | 10.8 lbs |
| Expansion / Connectivity | |
| Interfaces | 96 x RS-232 - RJ-45 ¦ 2 x 1/2.5/10 Gigabit Ethernet - SFP ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, FCC Class A certified, EN 50022, EN55024, ICES-003 Class A, VCCI Class A, RoHS, VCCI, WEEE |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 96 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, RS-232, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, IPv4, IPv6, NFS |
| Remote Management Protocol | SNMP, SSH, CLI, Syslog, HTTPS, SSH-2, Telnet |
| Capacity | Port buffers: 20 MB |
| Features | Firewall protection, TCP support, port sharing, command-line interface (CLI) management, VPN client, VPN Server, e-mail notification, dual core CPU |
| Encryption Algorithm | TLS 1.2, TLS 1.1, TLS 1.0 |
| Authentication Method | X.509 certificates, Kerberos, Secure Shell (SSH), LDAP, RADIUS, TACACS+, Active Directory, Secure Shell v.2 (SSH2) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 45 watt |
| Software / System Requirements | |
| OS Provided | Linux Kernel 3.14 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Atom 1.75 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 32 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.3 in |
| Shipping Depth | 23.6 in |
| Shipping Height | 8.3 in |
| Shipping Weight | 20.94 lbs |
