DLP projector - laser/phosphor - 6000 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - 4K - zoom lens
| Main Specifications | |
|---|---|

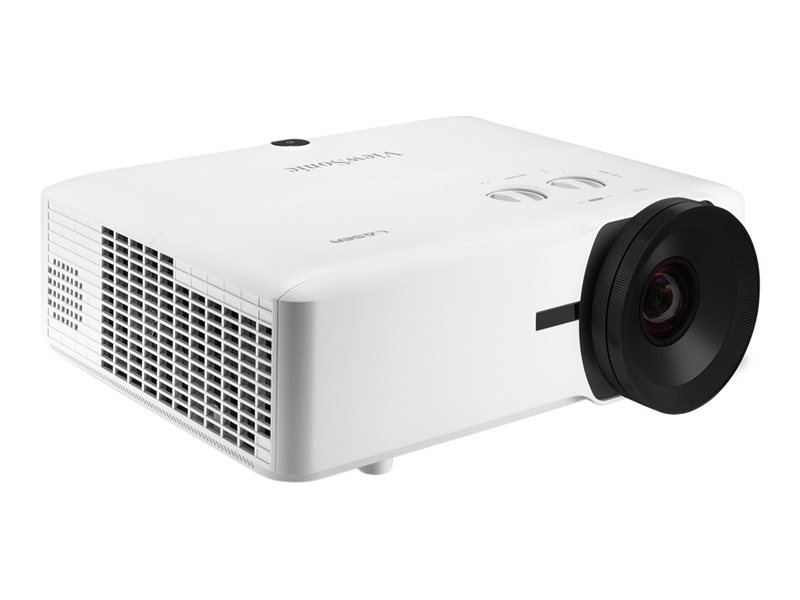

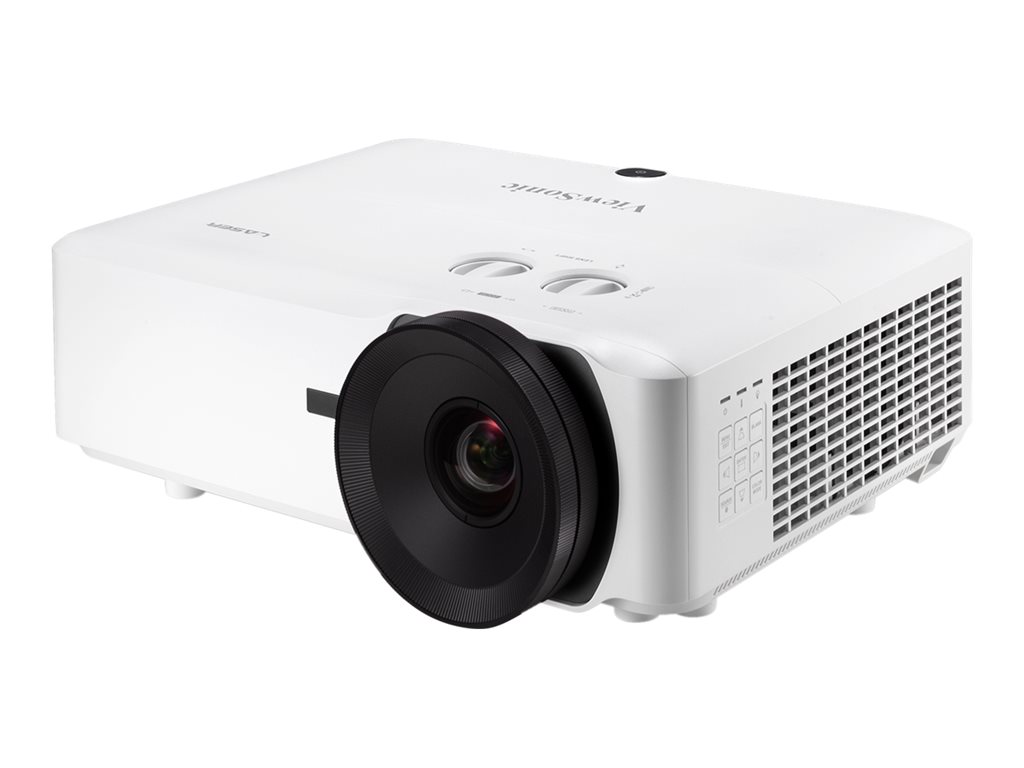

| Product Description | ViewSonic LS920WU - DLP projector - zoom lens |
| Device Type | DLP projector - 4K |
| Built-in Devices | Keypad, infrared receiver |
| Microdisplay | DarkChip 3 |
| Brightness | 6000 ANSI lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lens | Zoom lens |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | 2 x laser/phosphor 74 watt |
| Lamp Life Cycle | Up to 20000 hours - normal mode |
| Video Input | (NTSC, SECAM, PAL) |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Speakers | Speaker(s) - internal |
| Power | (50/60 Hz) |
| Power Consumption Operational | 450 watt |
| Dimensions (WxDxH) | 15.9 in x 12 in x 5.7 in |
| Weight | 14.33 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector - 4K |
| Built-in Devices | Keypad, infrared receiver |
| Networking | Ethernet |
| Expansion / Connectivity | |

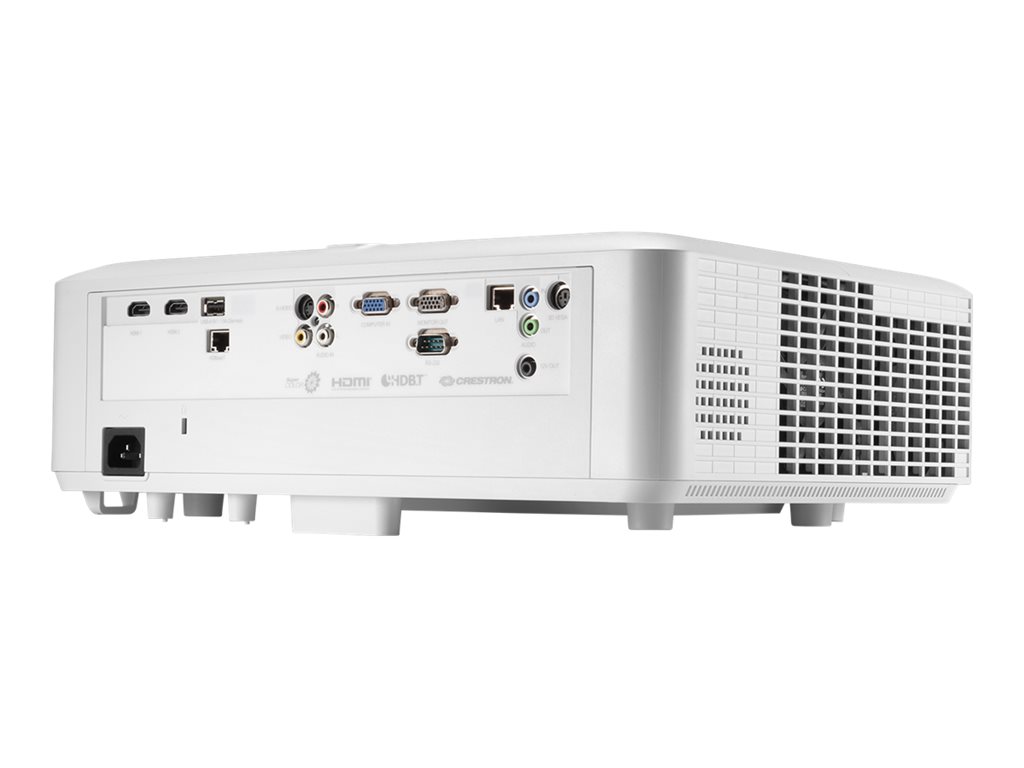

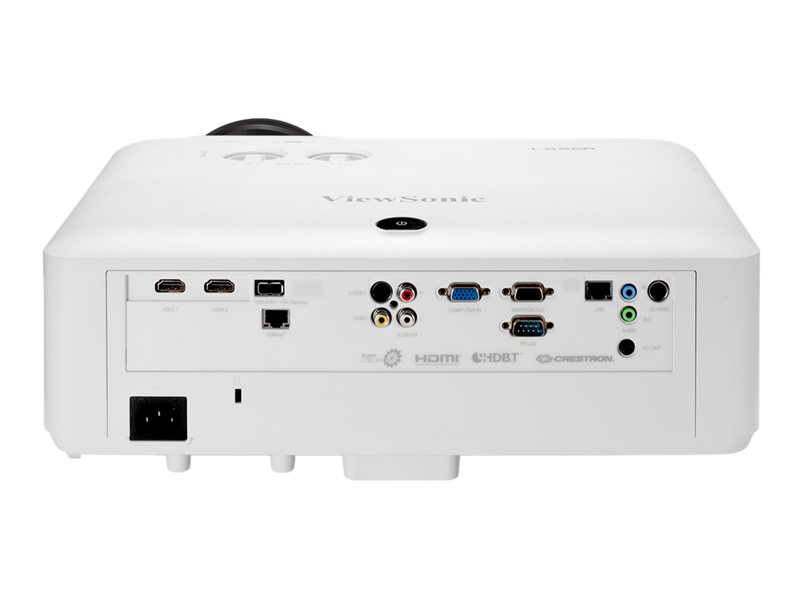

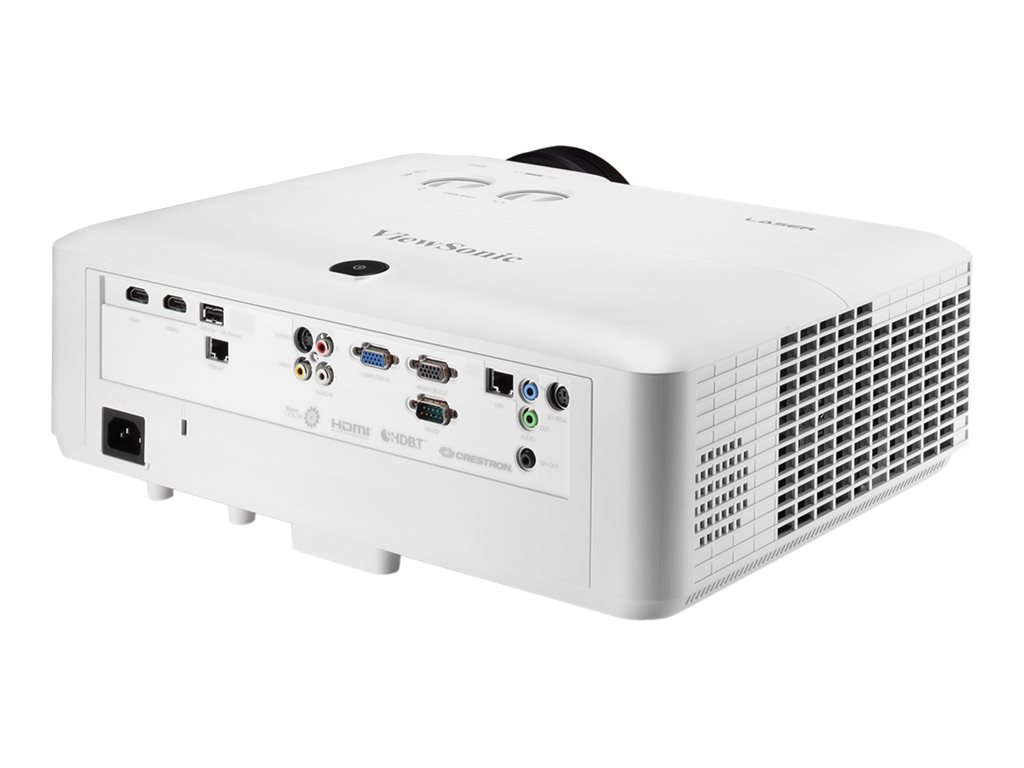

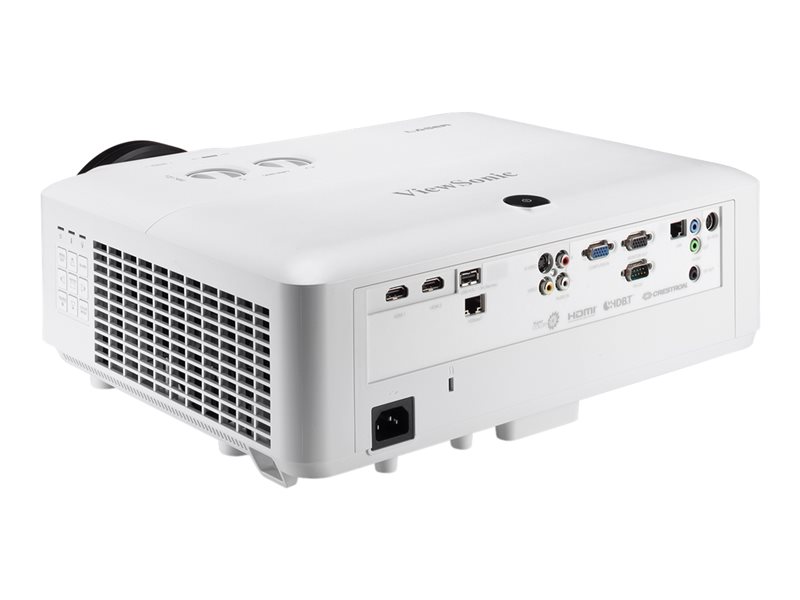

| Interfaces | 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x S-video input ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x 3D Sync in ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x USB (power only) - 4 pin USB Type A (power only) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x 12V programmable trigger - mini-phone 3.5 mm ¦ 1 x HDBaseT - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year |
| Miscellaneous | |

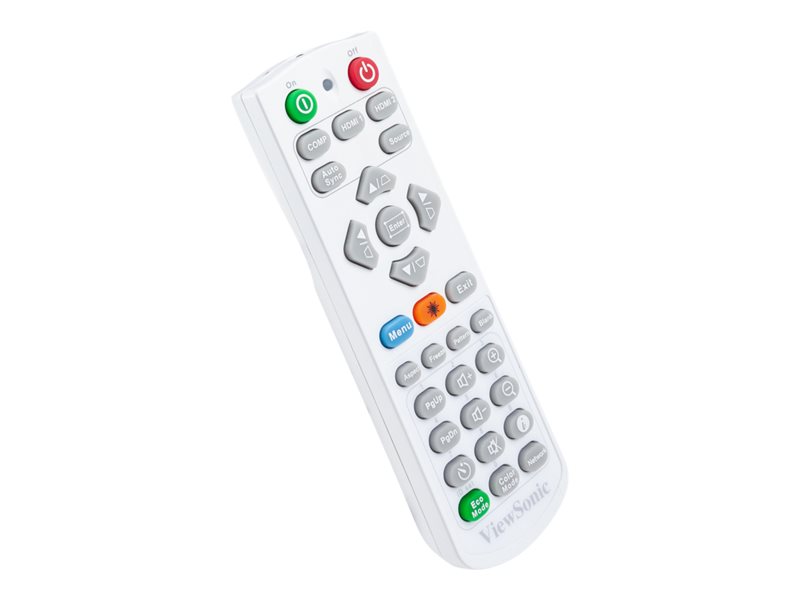

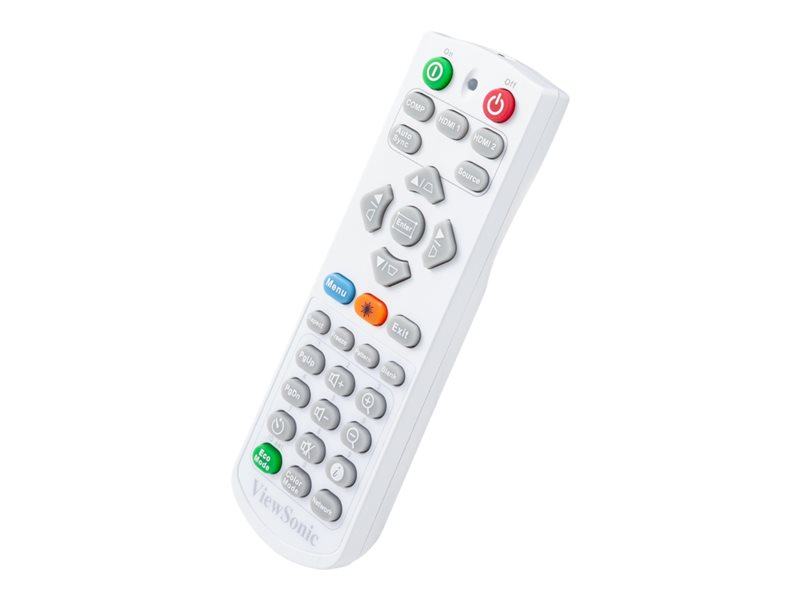

| Included Accessories | Remote control with laser pointer |
| Cables Included | 1 x VGA cable |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | HDCP 2.2, IP5X |
| Power | |
| Power Source | AC |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 450 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission (Economic Mode) | 29 dB |
| Video Input | |
| TV System | NTSC, SECAM, PAL |
| Video Interfaces | HDMI, HDBaseT, composite video, VGA |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Dimensions & Weight | |
| Width | 15.9 in |
| Depth | 12 in |
| Height | 5.7 in |
| Weight | 14.33 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.3 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 10.9 in |
| Shipping Weight | 19.84 lbs |
| Projector | |
| Microdisplay | DarkChip 3 |
| Brightness | 6000 ANSI lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Image Size | 30 in - 300 in |
| Projection Distance | 3 ft - 46 ft |
| Throw Ratio | 1.36 - 2.18:1 |
| Resolution | Ultra HD 4K - WUXGA (1920 x 1200) (native) / 3840 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 135 kHz |
| Lamp Type | 2 x laser/phosphor 74 watt |
| Lamp Life Cycle | Up to 20000 hours - normal mode |
| Controls & Adjustments | Keystone correction |
| OSD Languages | Czech, Indonesian, Thai, Chinese (traditional), Chinese (simplified), Vietnamese, English, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese, Korean, Indic (Indian Languages) |
| Features | 4K HDR technology, Hybrid Log-Gamma (HLG), portrait mode, 360° projection, 24/7 operation, Crestron RoomView, AMX Control System, Extron Control System, ViewSonic SuperColor |
| Lens | |
| Type | Zoom lens |
| Focus Type | Manual |
| Zoom Type | Manual |
| Zoom Factor | 1.6x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -40 / +40 |
| Horizontal Keystone Correction | -40 / +40 |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 50% / 50% |
| Horizontal Lens Shift | 23% / 23% |
| Speakers | |
| Type | Internal |
| Sound Output Mode | Stereo |
| Output Power / Channel | 10 watt |
| Speakers | 2 x right / left channel |
