PoE injector - DC 24 - 56 V - 30 Watt - output connectors: 1
| Main Specifications | |
|---|---|

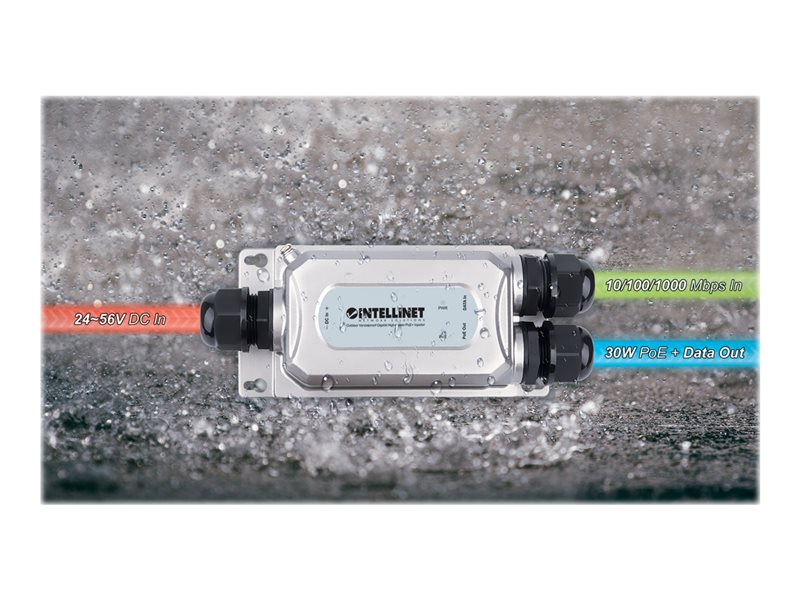

| Product Description | Intellinet Outdoor Vandalproof Gigabit High-Power PoE+ Injector, One 30 W Port, IEEE 802.3at/af Compliant, IP67 Waterproof, IK10 Vandal-proof, Metal Housing - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 13.61 oz |
| Input Voltage | DC 24 - 56 V |
| Output Voltage | DC 55 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 x 2 pin terminal block |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Mounting kit, grounding kit, 3 cable glands |
| Dimensions (WxDxH) | 5.9 in x 2.9 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting kit, grounding kit, 3 cable glands |
| Features | Water-resistant, wall mountable, vandal-resistant, dustproof, outdoor, LED indicators, overcurrent protection, overvoltage protection, short-circuit protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, Plug and Play, FCC Class A certified, RoHS, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP67, IK10 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | DC 24 - 56 V |
| Input Connectors | 1 x 2 pin terminal block |
| Power Consumption Operational | 36 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 55 V |
| Power Capacity | 30 Watt |
| Surge Suppression | Yes |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 13.61 oz |
