KVM / audio / serial / USB switch - 48 x KVM / audio / serial / USB (fiber) - desktop, rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|

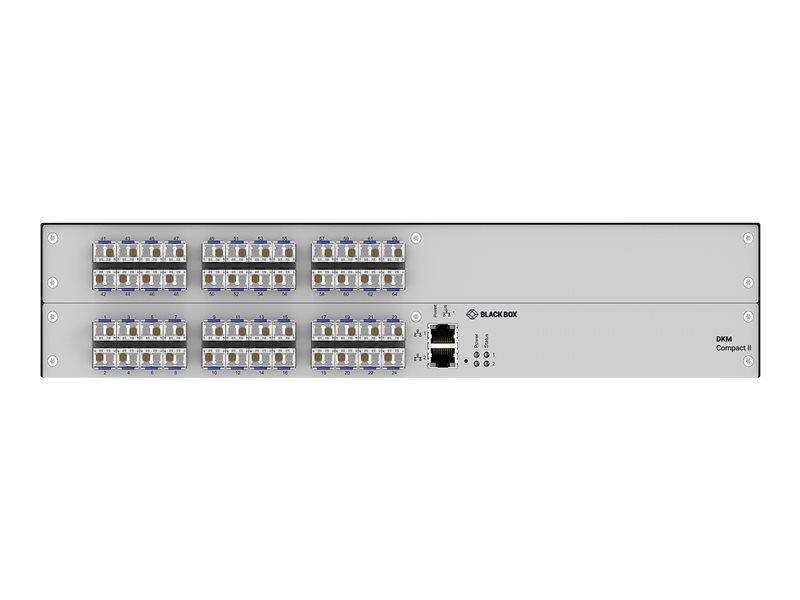

| Product Description | Black Box DKM Compact II KVM Matrix Switch - KVM / audio / serial / USB switch - 48 ports - rack-mountable - TAA Compliant |
| Device Type | KVM / audio / serial / USB switch - 48 ports |
| Enclosure Type | Rack-mountable 2U |
| Subtype | KVM |
| Ports | 48 x KVM / audio / serial / USB (fiber) |
| Max Transfer Distance | 6.2 miles |
| Performance | Link speed: 1 Gbps |
| Features | Modular design, On-Screen Display, IPv6 support, reset button, 4K resolution support |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 17.7 in x 3.5 in |
| Weight | 24.25 lbs |
| TAA Compliant | Yes |
| General | |
| Device Type | KVM / audio / serial / USB switch - 48 ports |
| Enclosure Type | Desktop, rack-mountable 2U |
| Subtype | KVM |
| Ports | 48 x KVM / audio / serial / USB (fiber) |
| Max Transfer Distance | 6.2 miles |
| Performance | Link speed: 1 Gbps |
| Features | Modular design, On-Screen Display, IPv6 support, reset button, 4K resolution support |
| Status Indicators | Status, power 1, power 2 |
| Expansion / Connectivity | |
| Interfaces | 48 x KVM / audio / serial / USB LC x 2 ¦ 2 x 1000Base-T RJ-45 |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 126.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 17.7 in |
| Height | 3.5 in |
| Weight | 24.25 lbs |
