KVM / audio / serial / USB switch - 144 x KVM / audio / serial / USB (CATx) - desktop, rack-mountable
| Main Specifications | |
|---|---|

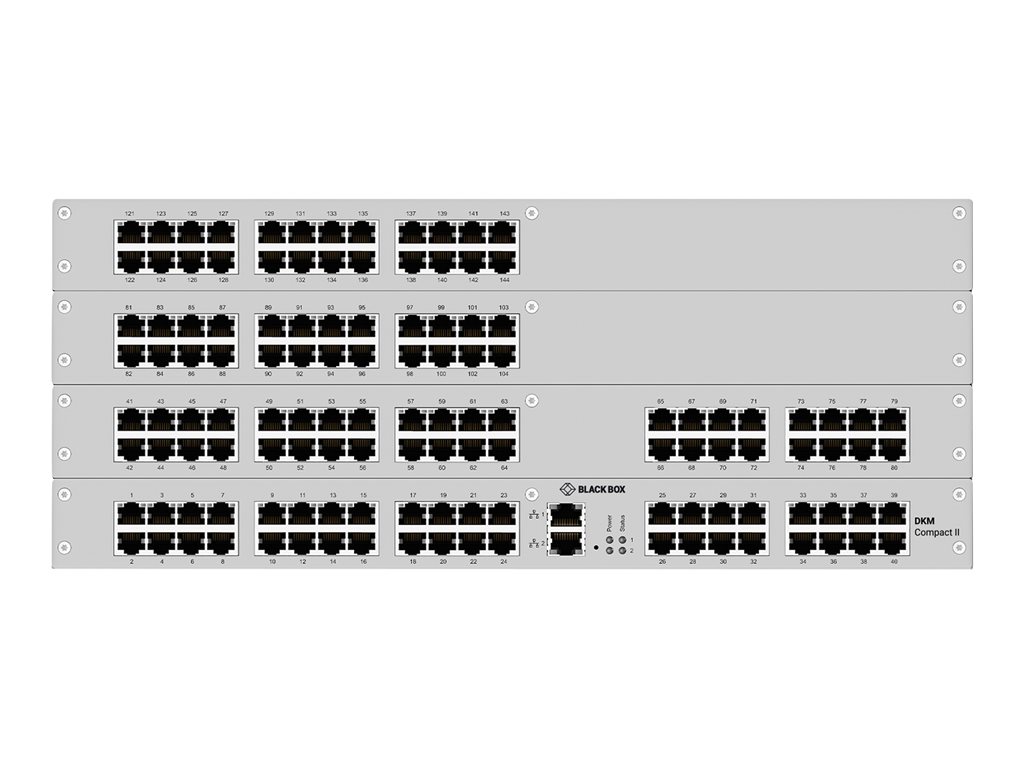

| Product Description | Black Box DKM Compact II KVM Matrix Switch ACXC144-3G - KVM / audio / serial / USB switch - 144 ports - rack-mountable |
| Device Type | KVM / audio / serial / USB switch - 144 ports |
| Enclosure Type | Rack-mountable 4U |
| Subtype | KVM |
| Ports | 144 x KVM / audio / serial / USB (CATx) |
| Performance | Link speed: 3 Gbps |
| Features | Modular design, On-Screen Display, IPv6 support, reset button, 4K resolution support, CatX Technology |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 17.7 in x 7 in |
| Weight | 41.89 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | KVM / audio / serial / USB switch - 144 ports |
| Enclosure Type | Desktop, rack-mountable 4U |
| Subtype | KVM |
| Ports | 144 x KVM / audio / serial / USB (CATx) |
| Performance | Link speed: 3 Gbps |
| Features | Modular design, On-Screen Display, IPv6 support, reset button, 4K resolution support, CatX Technology |
| Status Indicators | Status, power 1, power 2 |
| Expansion / Connectivity | |
| Interfaces | 144 x KVM / audio / serial / USB RJ-45 ¦ 2 x 1000Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| Cables Included | 1 x DB-9 to RJ-45 adapter |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 485.1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 17.7 in |
| Height | 7 in |
| Weight | 41.89 lbs |
