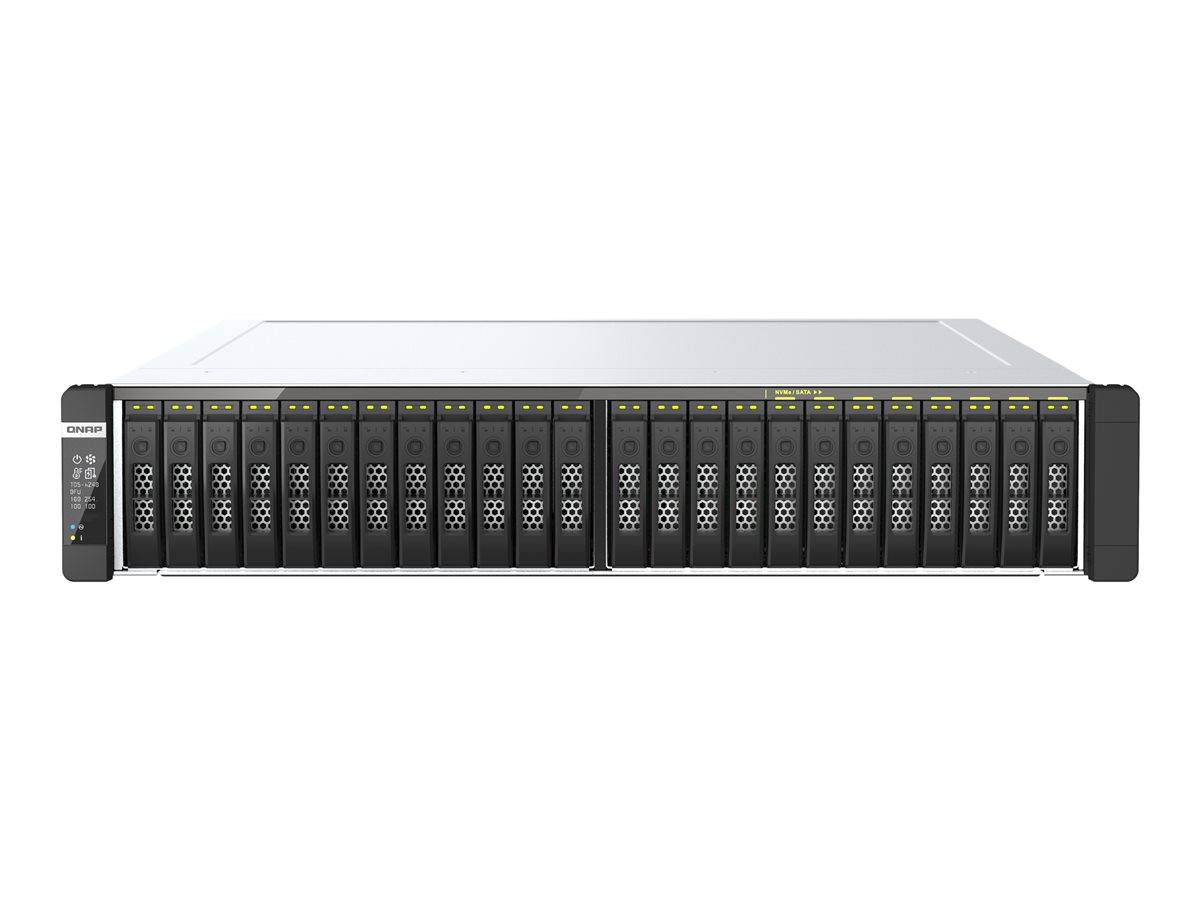

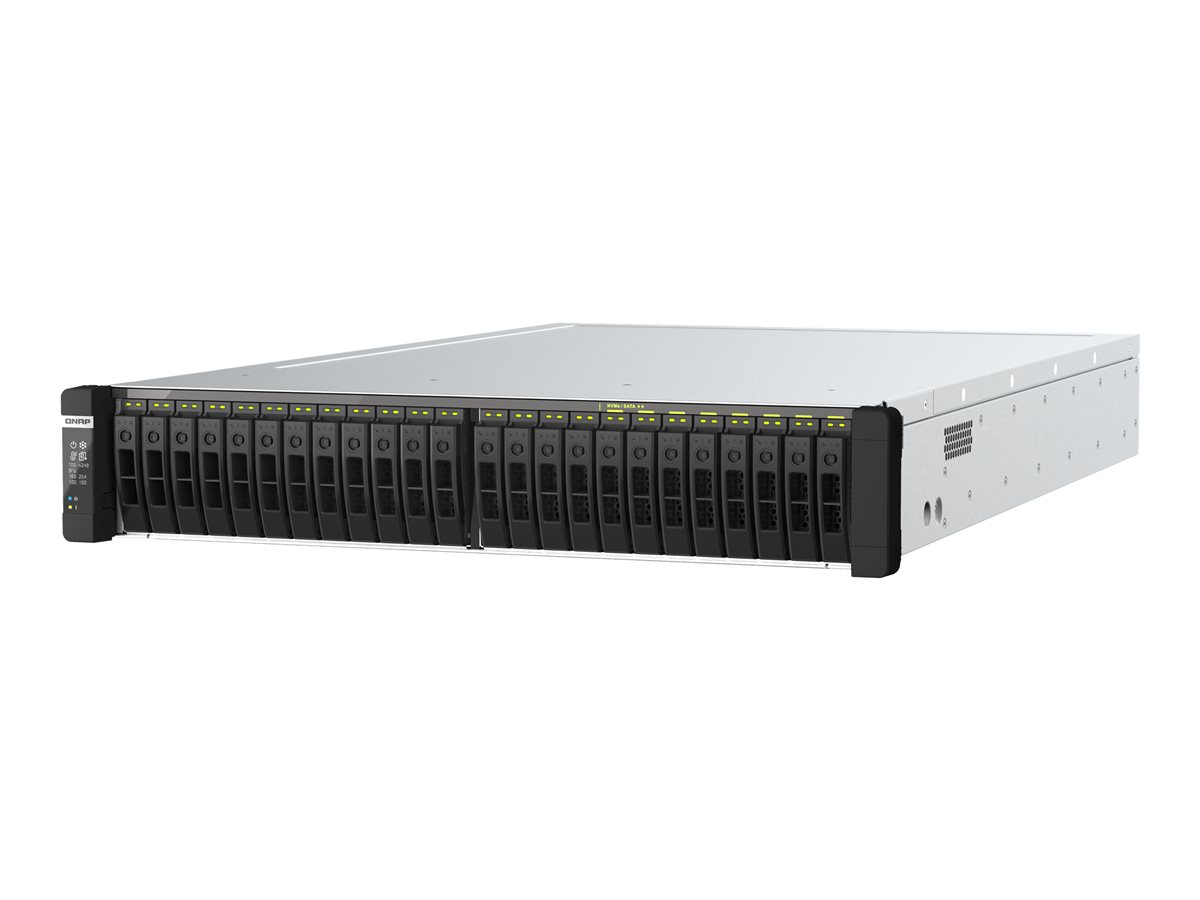

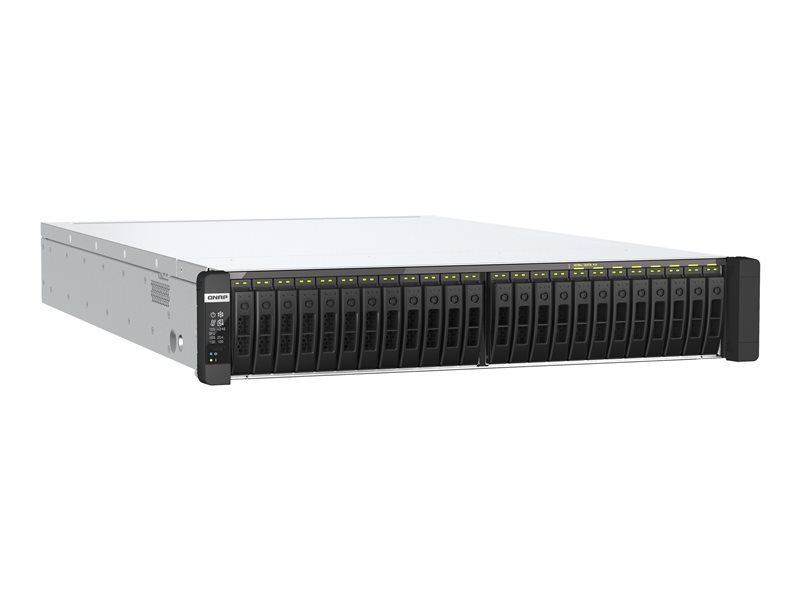

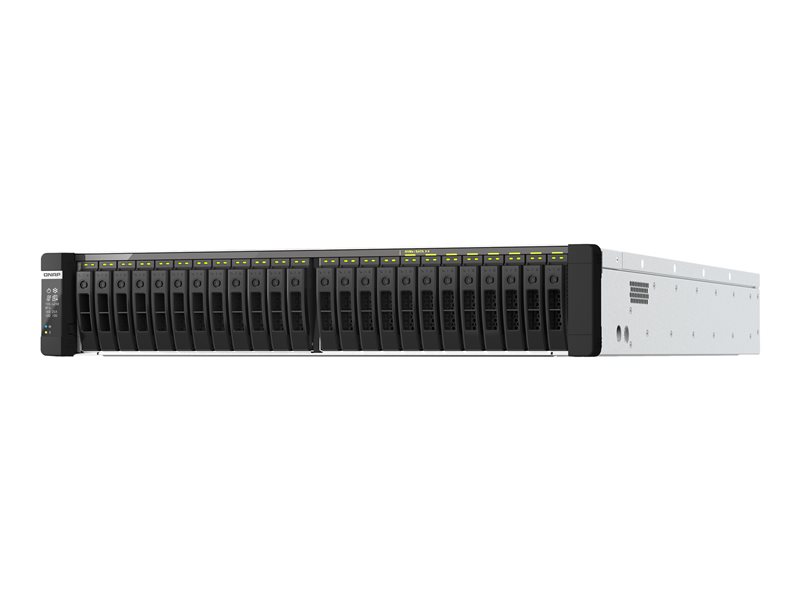

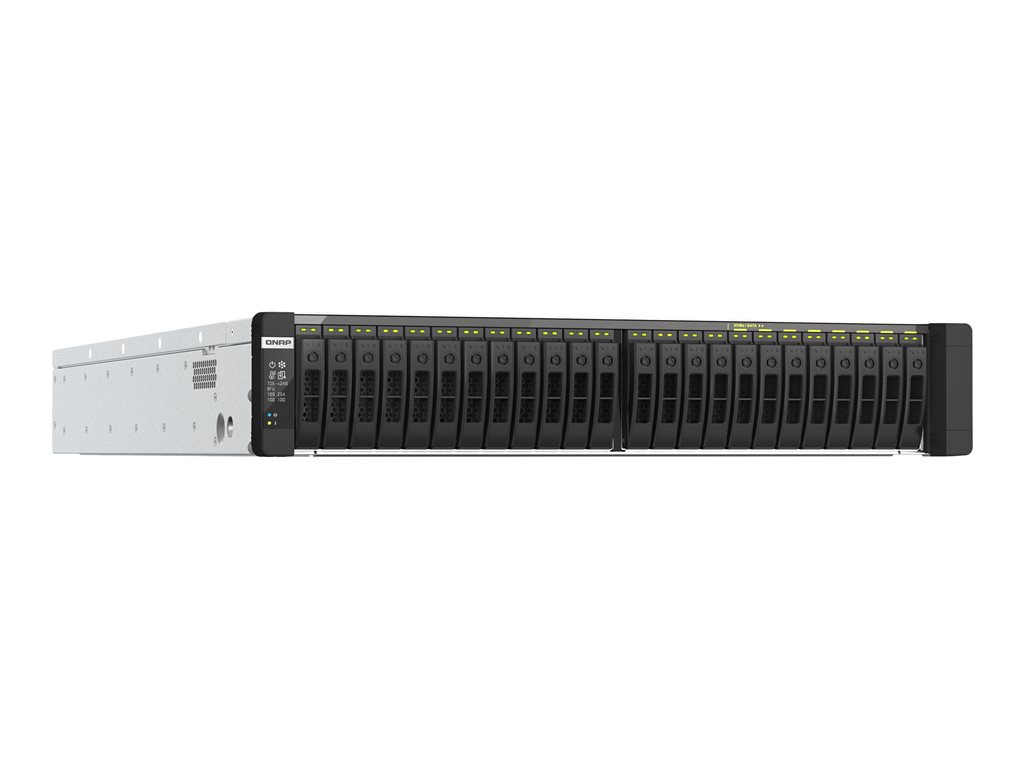

NAS server - 24 bays - rack-mountable - SATA 6Gb/s - RAID JBOD, 0, 1, 10, 5, 50, 6, 60 - RAM 512 GB - 25 Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|
| Product Description | QNAP TDS-H2489FU-4314-512G - NAS server |
| Device Type | NAS server |
| Host Connectivity | 25 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Dimensions (WxDxH) | 17.6 in x 28.1 in x 3.5 in |
| Weight | 46.98 lbs () |
| Localization | United States |
| Processor | 2 x Intel Xeon Silver 4314 2.4 GHz (16-core) |
| Storage Controller | RAID SATA 6Gb/s RAID JBOD, 0, 1, 10, 5, 50, 6, 60 |
| Networking | 2.5GbE, 25GbE, 100Mb LAN, 1GbE, 10Mb LAN |
| RAM | 512 GB |
| Power | AC 100-240 V |
| Storage Operating System | QNAP QuTS hero 5.0.0 |
| System Requirements | Apple MacOS X 10.10 or later, CentOS 7.0, IBM AIX 7, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Oracle Solaris 10, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04, VMware vSphere |
| General | |
| Device Type | NAS server |
| Host Connectivity | 25 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Width | 17.6 in |
| Depth | 28.1 in |
| Height | 3.5 in |
| Weight | 46.98 lbs () |
| Built-in Devices | LED panel |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion Slots | 32 (total) / 16 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCI Express 4.0 x16 ¦ 1 (total) / 0 (free) x PCI Express 4.0 x8 ¦ 2 x M.2 2280 |
| Interfaces | 2 x Ethernet 25Gb - SFP28 ¦ 4 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 1 |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | Secure Erase, Snapshot function, LDAP support, RADIUS support |
| Compliant Standards | ISO 7779, SSL, TLS, FIPS 140-2, TLS v1.2, TLS v1.1, TLS v1.0, TLS v1.3 |
| Included Accessories | 96 x flat head screws (for 2.5" HDD), hard drive security key, 2 x flat head screws (for M.2 SSD) |
| Networking | |
| Data Link Protocol | 2.5GbE, 25GbE, 100Mb LAN, 1GbE, 10Mb LAN |
| Network / Transport Protocol | IPv4, IPv6, DDNS, SMB, PPTP, L2TP, IPSec, iSCSI, FTP, DHCP, NFS |
| Remote Management Protocol | SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, LDAP, RADIUS, TFTP |
| Network Services Compatibility | Microsoft CIFS, Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Server Message Block (SMB), FTP, FTPS, SFTP, DDNS, Web-based Distributed Authoring and Versioning (WebDAV), DHCP, HTTP, HTTPS, File Level Security (ACLs) |
| Features | SR-IOV, WOL, Jumbo Frames support, reset button, 6 fans, built-in buzzer, VJBOD Cloud, SSD trim, file sharing, FXP support, file station, SNMP support, scheduler, Smart Fan, IPv4 support, IPv6 support, DHCP server, port trunking, VLAN support, firewall protection, Qsync, QuMagie, Qsirch, antivirus analysis, McAfee protection, LDAP support, RADIUS support, download client, Qfiling, QmailAgent, QuWAN, trunking, manageable, ACL support, SSH support, FTP server, Domain Controller, Apple Time Machine compatible, cloud backup, Q'center (NAS CMS), 256-bit encryption, hybrid backup sync, Rsync compatible, snapshot (folder and LUN), Alibaba Cloud OSS support, Backblaze B2 support |
| Encryption Algorithm | AES-NI, 256-bit AES |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 467.59 Watt |
| Power Provided | 1200 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero 5.0.0 |
| OS Required | Apple MacOS X 10.10 or later, CentOS 7.0, IBM AIX 7, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Oracle Solaris 10, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04, VMware vSphere |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 |
| Processor / Memory | |
| Processors Installed | 2 x Intel Xeon Silver 4314 2.4 GHz |
| Number of Cores | 16-core |
| Max Supported Qty | 2 |
| Max Turbo Speed | 3.4 GHz |
| RAM | 512 GB DDR4 |
| Features | Registered, ECC |
| Flash Memory Installed | 5 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 60.85 lbs |
| Security DVR | |
| Compression Format | H.264 |
