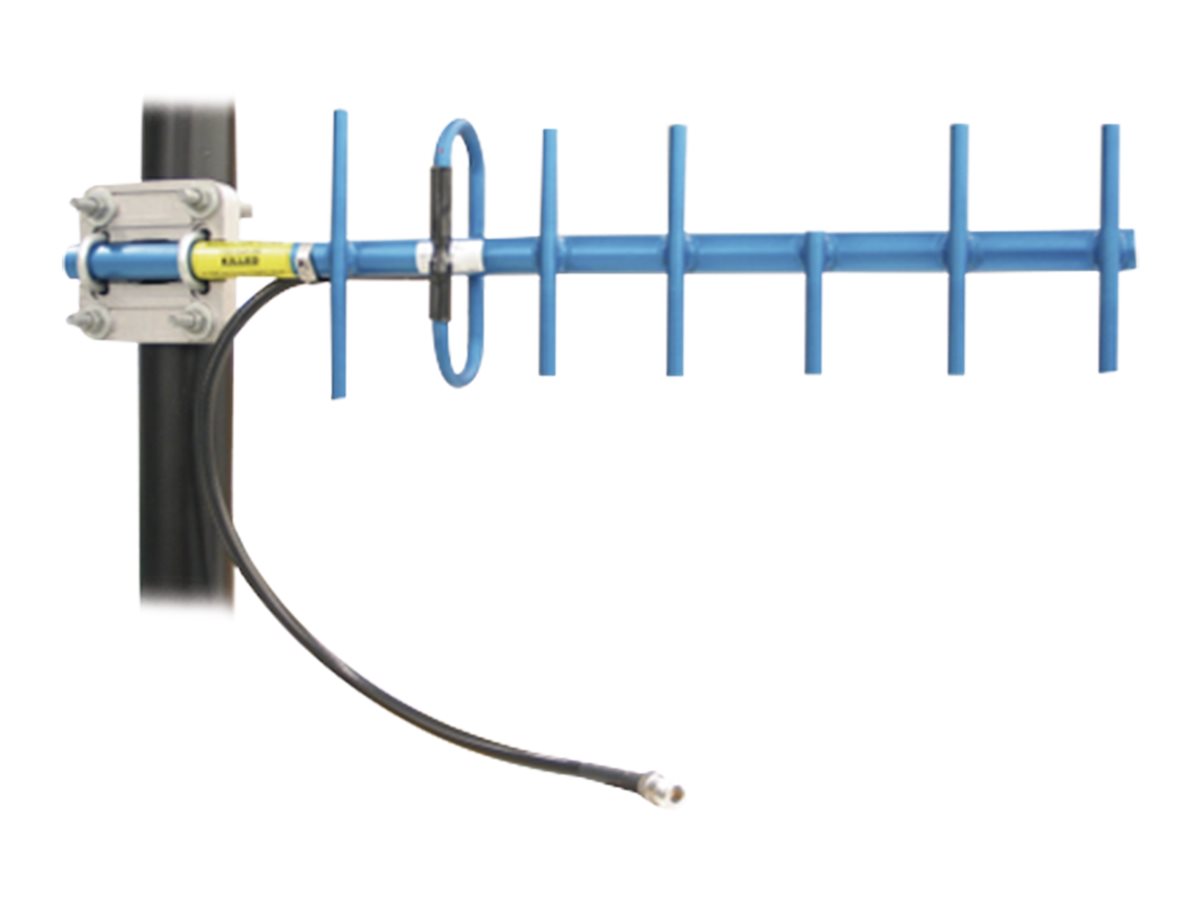

Antenna - Yagi - 12.15 dBi
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks NB-N500021A-GL - antenna |
| Device Type | Antenna |
| Form Factor | Yagi |
| Dimensions (WxDxH) | 6.7 in x 23.9 in |
| Weight | 33.51 oz |
| Frequency Range | 890 - 960 MHz |
| Gain | 12.15 dBi |
| Features | 7 elements, 56° azimuth half power beam width, 46° elevation half power beam width, corrosion-resistant, single-polarized, horinzontal/vertical polarization |
| General | |
| Product Type | Antenna |
| Form Factor | Yagi |
| Width | 6.7 in |
| Depth | 23.9 in |
| Weight | 33.51 oz |
| Product Material | 6061-T6 aluminum |
| Miscellaneous | |
| Included Accessories | Mounting bracket, 5 cable ties, grounding kit, weatherproofing kit, bulk-head mount RF surge suppressor, jumper cable (N-type to TNC) |
| Antenna | |
| Frequency Range | 890 - 960 MHz |
| Impedance | 50 Ohm |
| Gain | 12.15 dBi |
| Max Power | 200 Watt |
| Max Wind Speed | 198.9 mph |
| Features | 7 elements, 56° azimuth half power beam width, 46° elevation half power beam width, corrosion-resistant, single-polarized, horinzontal/vertical polarization |
