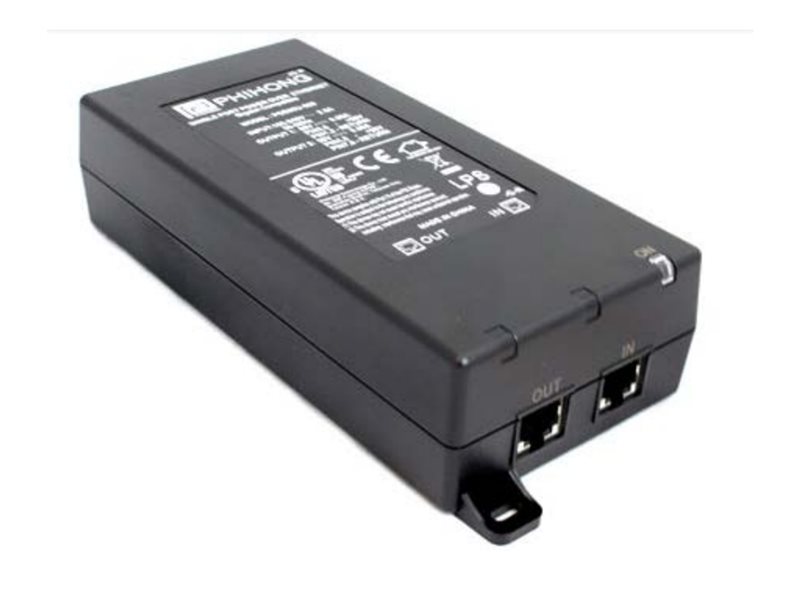

PoE injector - AC 90-264 V - 90 Watt - for Cambium Networks PTP 820C
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks - PoE injector - 90 Watt |
| Device Type | PoE injector - external |
| Input Voltage | AC 90-264 V |
| Output Voltage | 56 V |
| Power Capacity | 90 Watt |
| Input Connectors | Power IEC 60320 C14 |
| Output connectors | 1 x RJ-45 |
| Designed For | Cambium Networks PTP 820C |
| General | |
| Device Type | PoE injector - external |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Features | Indoor use |
| Compliant Standards | RoHS, EN 61000-4-2, EN 61000-4-5, UL 60950-1 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
| Power Device | |
| Input Voltage | AC 90-264 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 56 V |
| Power Capacity | 90 Watt |
| Efficiency | Level VI |
| Compatibility Information | |
| Designed For | Cambium Networks PTP 820C |
