Barebone - mini PC - RAM 0 GB - UHD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7)
| Main Specifications | |
|---|---|

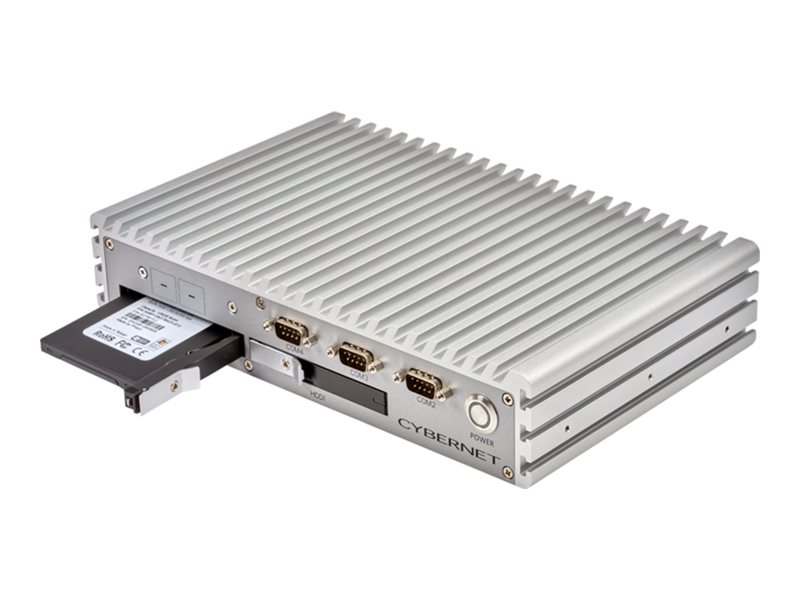

| Product Description | Cybernet Embedded PC iPC R2is - mini PC - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| RAM | 0 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE, 802.11b/g/n, Bluetooth 4.0, 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, Bluetooth 5.1 |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 10.7 in x 6.7 in x 2.2 in |
| Weight | 5 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x PCIe ¦ 1 (total) / 1 (free) x M.2 Type M ¦ 1 (total) / 1 (free) x M.2 Card |
| Interfaces | 4 x USB 3.1 - Type A ¦ 2 x USB 2.0 - Type A ¦ 4 x serial (RS-232) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x HDMI ¦ 1 x audio line-out - mini-jack |
| Miscellaneous | |
| Compliant Standards | IEC 60068-2-27, IEC 60068-2-64, FCC Class B certified, RoHS2, EN 50155, EN 50121-3-2 |
| RAM | |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 1 (total) / 1 (empty) |
| Networking | |
| Ethernet Controller | Intel I211-AT |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.1 |
| Compliant Standards | Bluetooth 5.1, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI |
| Max Monitors Supported | 2 |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 10.7 in |
| Depth | 6.7 in |
| Height | 2.2 in |
| Weight | 5 lbs |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
