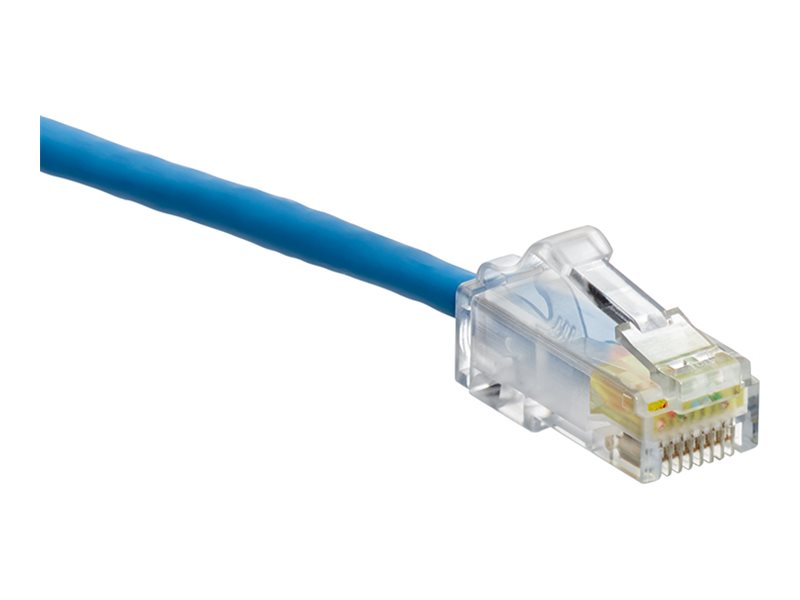

Patch cable - RJ-45 (M) to RJ-45 (M) - 6 ft - 0.1 in - UTP - CAT 6 - IEEE 802.3 - CM - high-flex, snagless, stranded, halogen-free - blue
| Main Specifications | |
|---|---|
| Product Description | Leviton patch cable - 6 ft - blue |
| Type | Patch cable - CAT 6 - IEEE 802.3 - CM |
| Technology | UTP |
| Wires per Cable | 8 wires |
| Features | High-flex, snagless, stranded, halogen-free, small diameter, PoE+ Ready, PoE ready, strain relief, UPoE ready, Power over HDBASE-T (PoH), bending radius 15.2mm |
| Cable Length | 6 ft |
| Diameter | 0.1 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Blue |
| General | |
| Network Cable Type | Patch cable - CAT 6 - IEEE 802.3 - CM |
| Technology | UTP |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 28 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | High-flex, snagless, stranded, halogen-free, small diameter, PoE+ Ready, PoE ready, strain relief, UPoE ready, Power over HDBASE-T (PoH), bending radius 15.2mm |
| Cable Length | 6 ft |
| Diameter | 0.1 in |
| Color | Blue |
| Miscellaneous | |
| Compliant Standards | ANSI/TIA 568.2, ISO/IEC 11801-1, RoHS, UL 444, IEC 60603-7, EN 50173-1, IEC 61034, ANSI/TIA-1096-A, IEC 60754, IEC 60332-1-2:2004 - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
