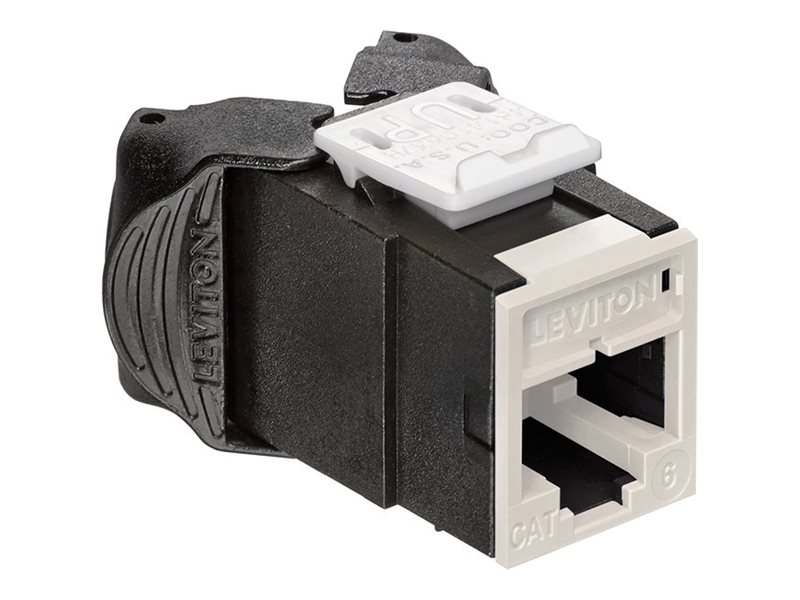

Modular insert - QuickPort - patch panel mountable, surface mountable, flush mountable - CAT 6 - UTP - RJ-45 - light almond
| Main Specifications | |
|---|---|
| Product Description | Leviton Atlas-X1 modular insert - QuickPort |
| Product Type | Modular insert - CAT 6 - RJ-45 - QuickPort |
| Placing / Mounting | Patch panel mountable, surface mountable, flush mountable |
| Dimensions (WxDxH) | 0.7 in x 1.3 in x 0.9 in |
| Product Material | Die-cast zinc |
| Color | Light almond |
| Port Qty | 1 port |
| Compliant Standards | RoHS, ANSI/TIA-606-C, ANSI/TIA-568.2-D Cat 6, ISO/IEC 11801-1 Category 6, EN 5017301 Category 6, ANSI/TIA-1096-A, cULus, UL 1863, UL 2043, IEC 60603-7, IEC 60512-5-2, IEC 60512-99-002, ETL / IEEE 802.3bt |
| General | |
| Product Type | Modular insert - CAT 6 - QuickPort |
| Placing / Mounting | Patch panel mountable, surface mountable, flush mountable |
| Product Material | Die-cast zinc |
| Width | 0.7 in |
| Depth | 1.3 in |
| Height | 0.9 in |
| Enclosure Color | Light almond |
| Miscellaneous | |
| Features | Tool-free, Retention Force Technology (RFT), for 22 - 26 AWG stranded and solid wire, dust-resistant, debris protection, Power over HDBaseT (PoH) support, short body |
| Compliant Standards | RoHS, ANSI/TIA-606-C, ANSI/TIA-568.2-D Cat 6, ISO/IEC 11801-1 Category 6, EN 5017301 Category 6, ANSI/TIA-1096-A, cULus, UL 1863, UL 2043, IEC 60603-7, IEC 60512-5-2, IEC 60512-99-002, ETL |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 95% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Termination Type | 110 type termination |
| Technology | Unshielded twisted pair (UTP) |
| Features | PoE support, shuttered, 50µ gold-plated connectors |
| Compliant Standards | IEEE 802.3bt |
| Connector Provided | 1 x RJ-45 female |
