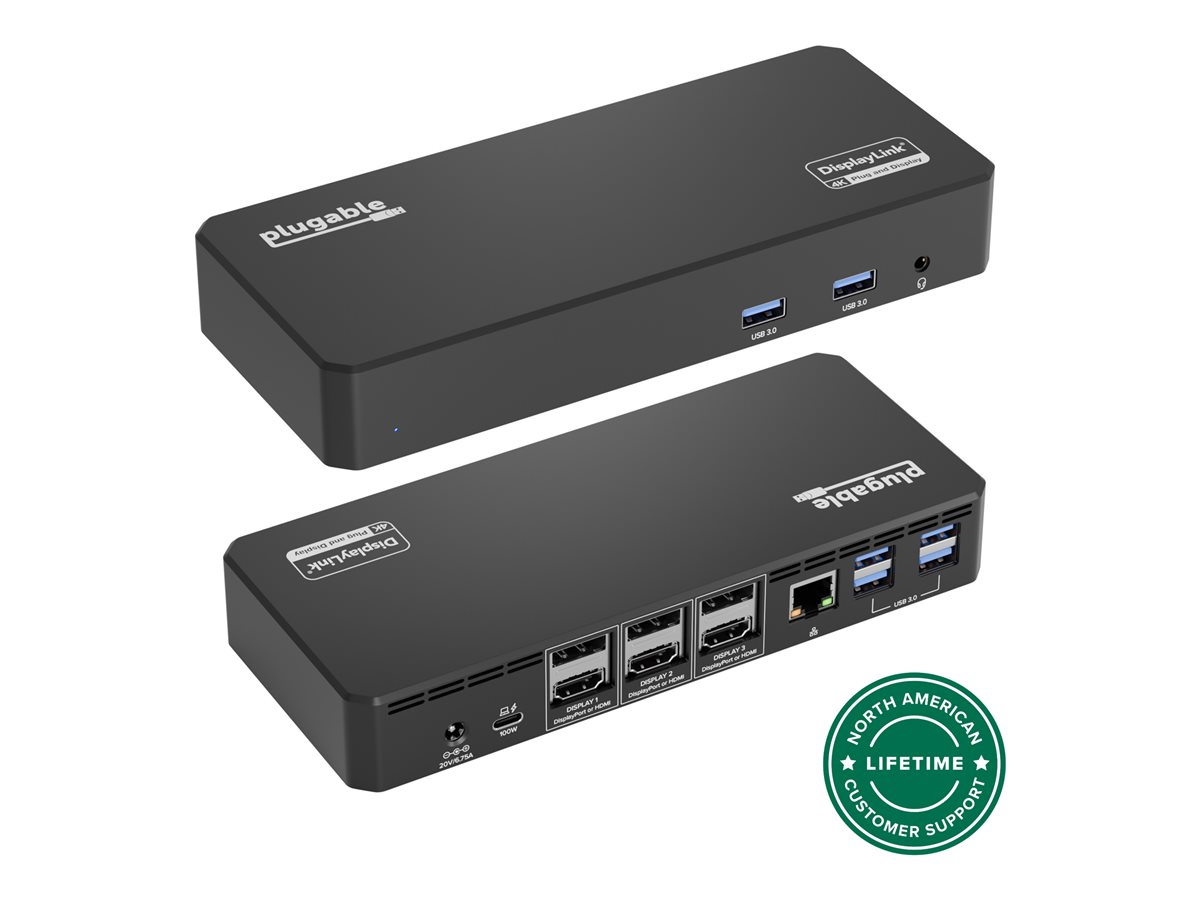

Docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 3 x DP++, 3 x HDMI - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Plugable - docking station - USB-C / Thunderbolt 3 / Thunderbolt 4 - 3 x DP++, 3 x HDMI - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 / Thunderbolt 4 |
| Video Interfaces | 3 x DP++, 3 x HDMI |
| Networking | Gigabit Ethernet |
| Power | Power adapter |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Expansion / Connectivity | |

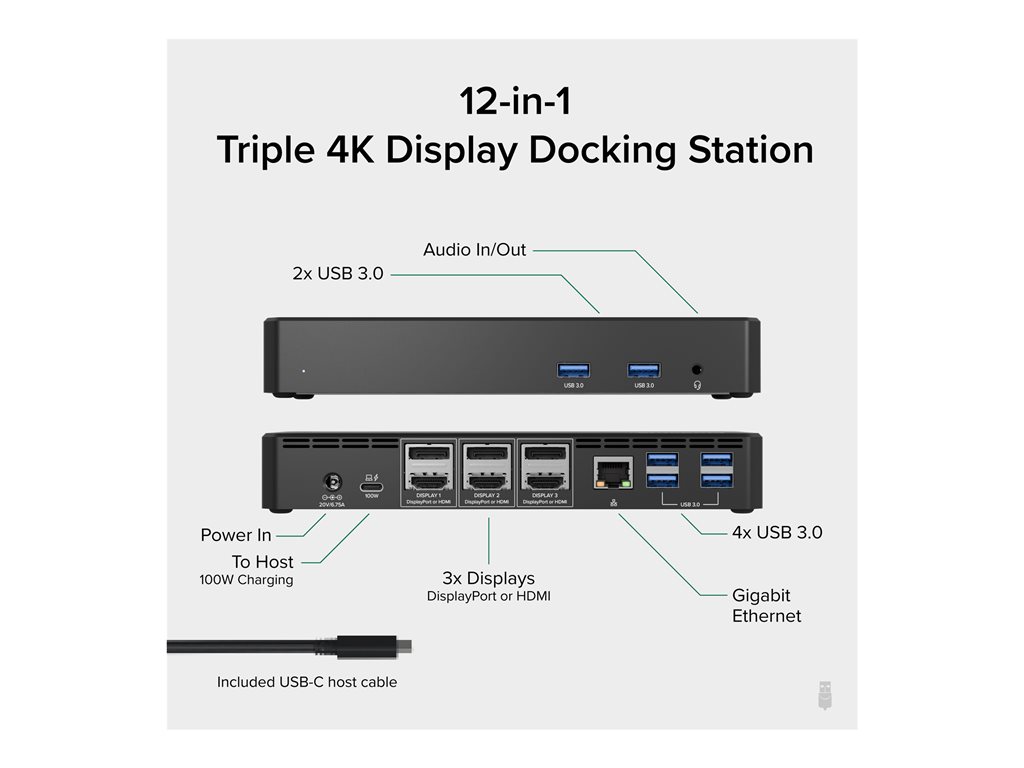

| Interfaces | 3 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 1000Base-T - RJ-45 ¦ 6 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 3 x audio / video - DisplayPort - 20 pin DisplayPort (1.2) ¦ 1 x headset - mini-phone stereo 3.5 mm 4-pole |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

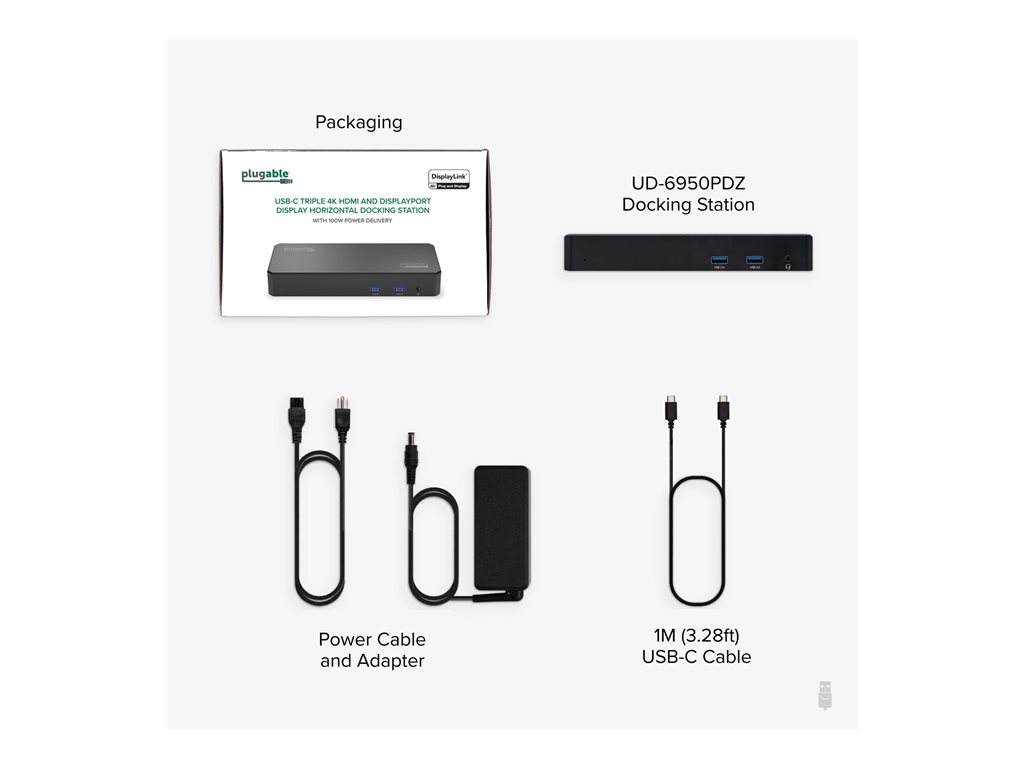

| Cables Included | 1 x USB-C cable - external - 3.3 ft |
| Features | DisplayLink DL-6950 chipset, 100W power delivery, DisplayPort Alt Mode |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Video | |

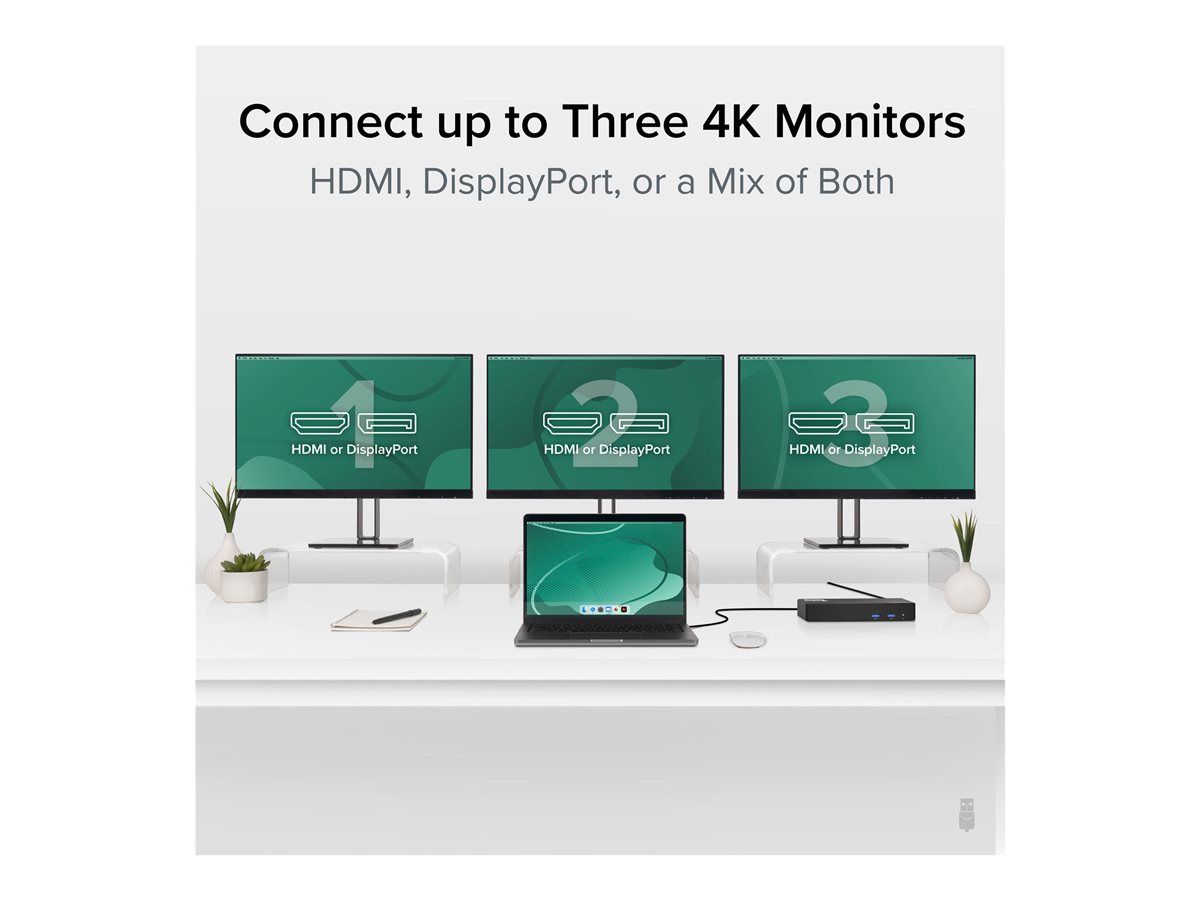

| Max Resolution Details | 3840 x 2160 - 30 Hz (HDMI1 only) ¦ 3840 x 2160 - 60 Hz (HDMI2 and HDMI3 simultaneously) ¦ 3840 x 2160 - 30 Hz (DisplayPort1 1.2 only) ¦ 3840 x 2160 - 60 Hz (DisplayPort2 1.2 and DisplayPort3 1.2 simultaneously) |
| System Requirements | |
| OS Required | Windows 10, Windows 11, Apple macOS 10.14 or later |
