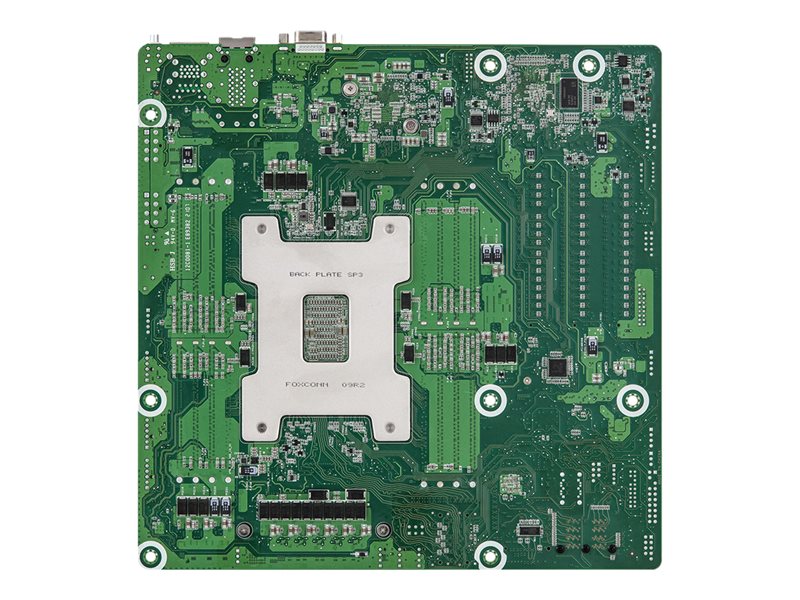

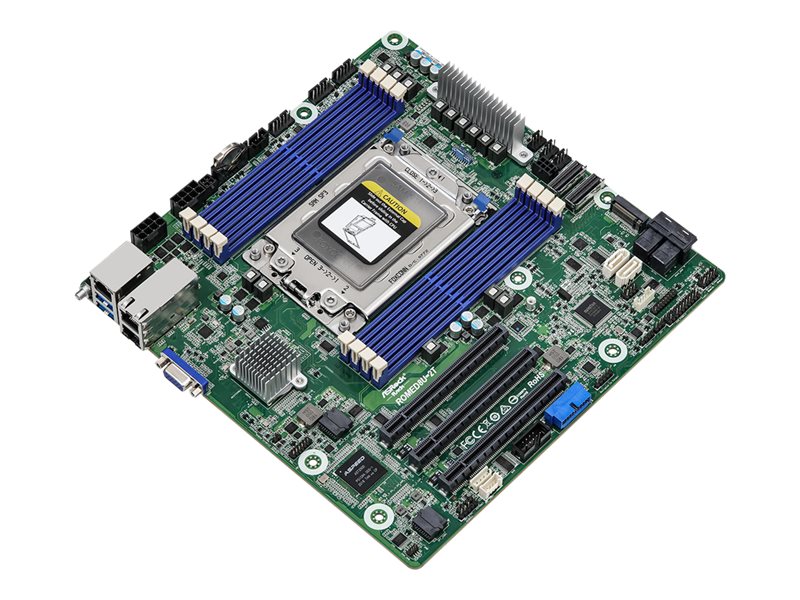

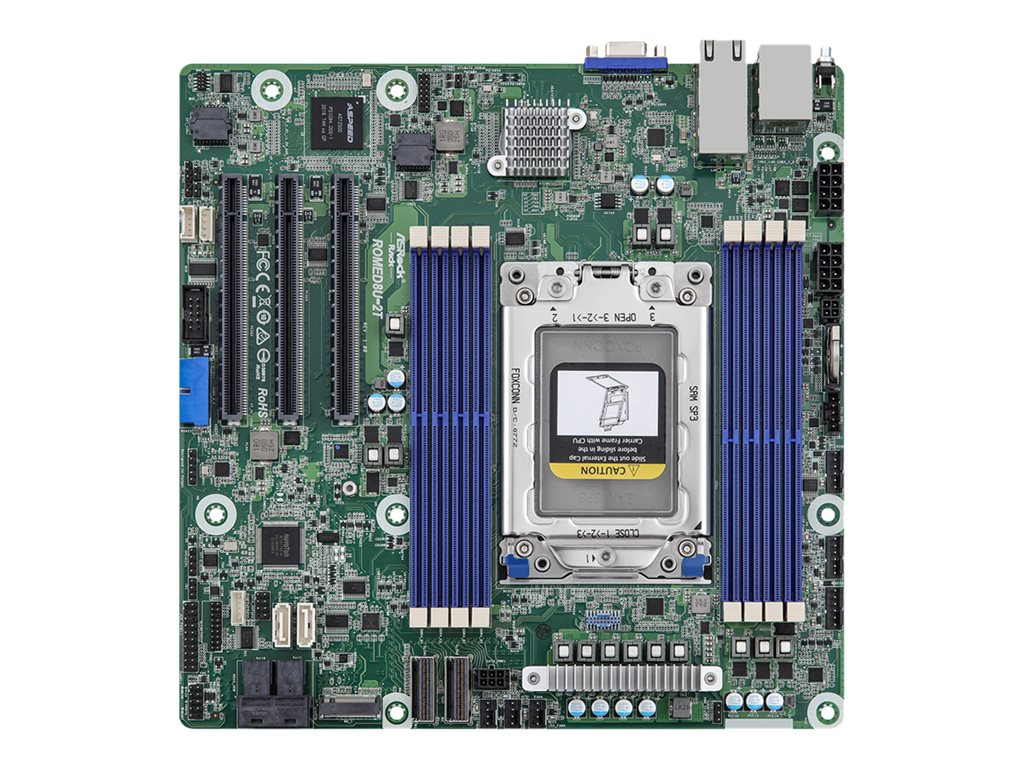

Motherboard - micro ATX - Socket SP3 - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack ROMED8U-2T - motherboard - micro ATX - Socket SP3 |
| Product Type | Motherboard - micro ATX |
| Processor Socket | 1 x Socket SP3 |
| Compatible Processors | EPYC 7002 series, EPYC 7001 series |
| RAM Supported | 8 DIMM slots registered, Load-Reduced, Non-Volatile, 3DS Load-Reduced |
| Storage Ports | 2 x SlimSAS, 2 x Mini-SAS HD, 2 x SATA-600, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2500 |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Processor Socket | Socket SP3 |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 7002 series, EPYC 7001 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 3 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 2 x mini-SAS HD, 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x SlimSAS |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 1 x management |
| Internal Interfaces | 1 x serial - header ¦ 1 x speaker - header ¦ 1 x SGPIO - header ¦ 1 x USB 3.2 Gen 1 - header |
| Power Connectors | 4-pin ATX12V connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 2.0 support, IPMI support, SMBIOS 2.8 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Intel X710-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Supported RAM | |
| Bus Clock | 2666 MHz, 3200 MHz |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile, 3DS Load-Reduced |
