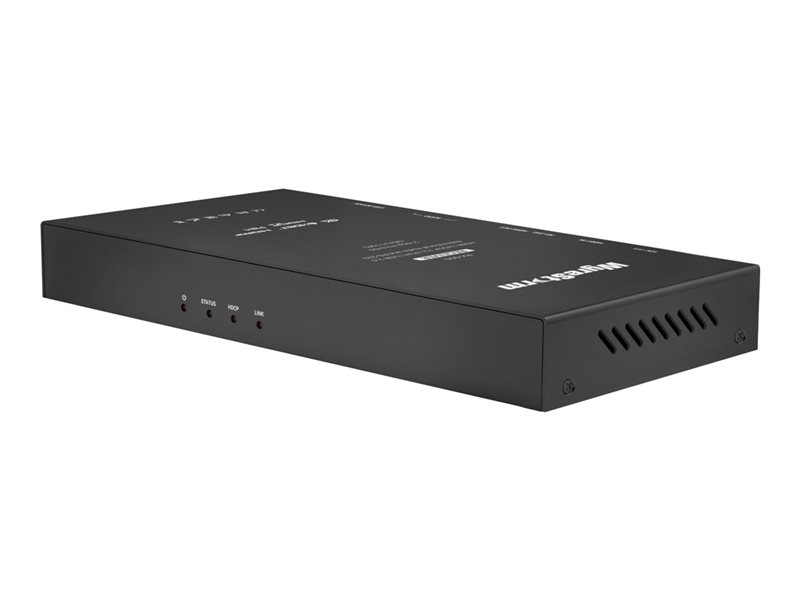

Video/audio/USB/serial/network extender - receiver - HDBaseT - up to 115 ft - 1U
| Main Specifications | |
|---|---|
| Product Description | WyreStorm RX-500 - video/audio/USB/serial/network extender - HDBaseT |
| Device Type | Video/audio/USB/serial/network extender (receiver) |
| Form Factor | External - 1U |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 115 ft |
| Power Over Ethernet (PoE) | PoH |
| Power | DC 12 V |
| Dimensions (WxDxH) | 8.3 in x 3.6 in x 1 in |
| Weight | 16.22 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Video/audio/USB/serial/network extender (receiver) |
| Form Factor | External - 1U |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (input) - RJ-45 female ¦ 4 x USB (input) - Type A ¦ 2 x audio line-out - mini jack ¦ 1 x RS-232 (bi-directional) - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, RCM, EAC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 297 MHz |
| Max Transfer Distance | 115 ft |
| Features | HDCP compliant, CEC passthrough, bi-directional RS-232, HDR 4K60 8-bit 4:2:0 compatible, LPCM support, DTS:X support, Dolby Atmos support, 2 channels, HDR10 support, Hybrid Log-Gamma (HLG) support, HDR support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoH |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 8 Watt |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 3.6 in |
| Height | 1 in |
| Weight | 16.22 oz |
