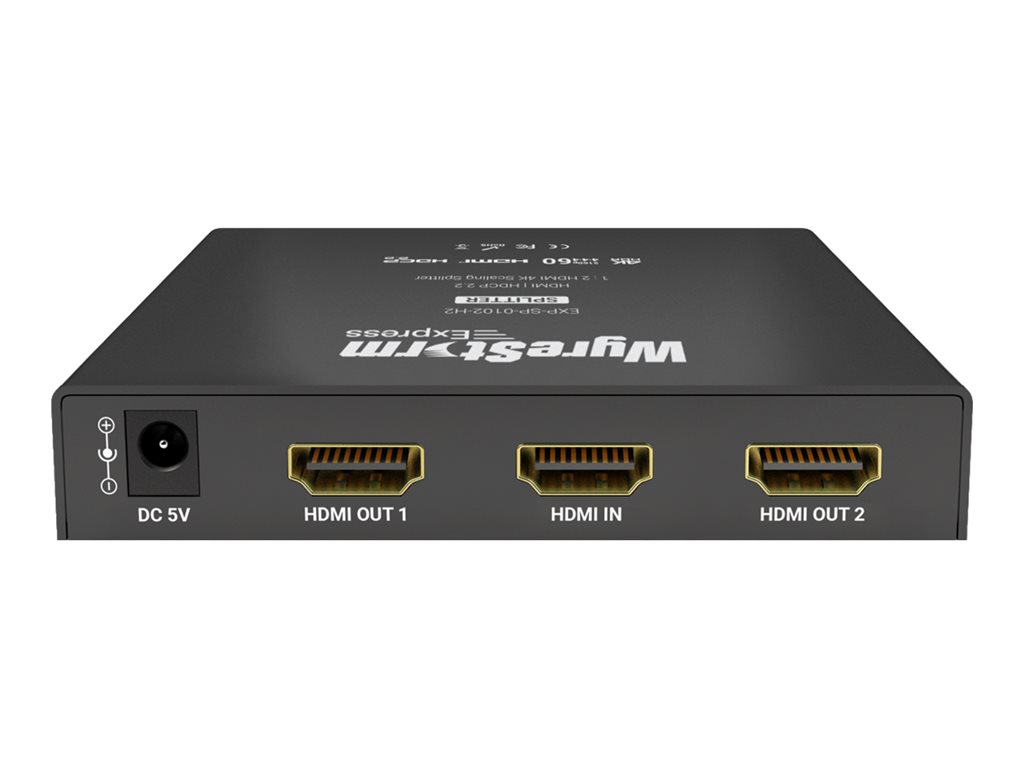

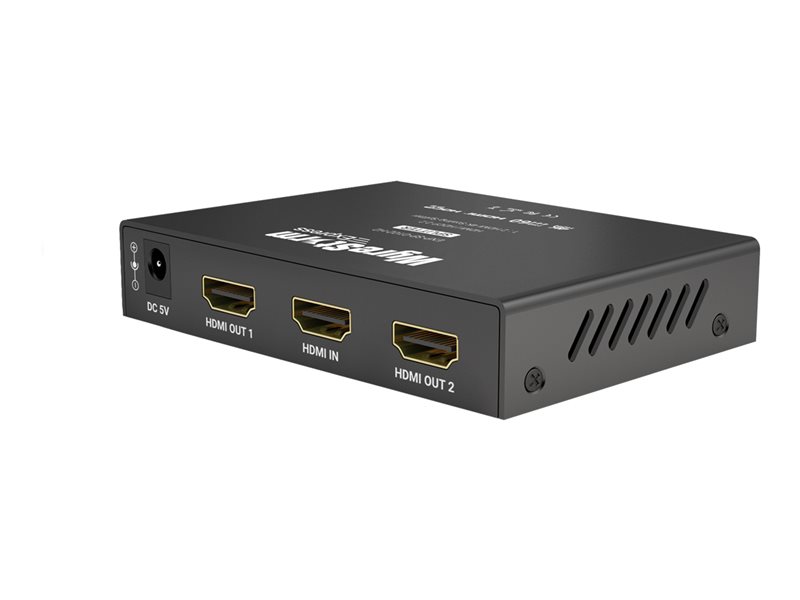

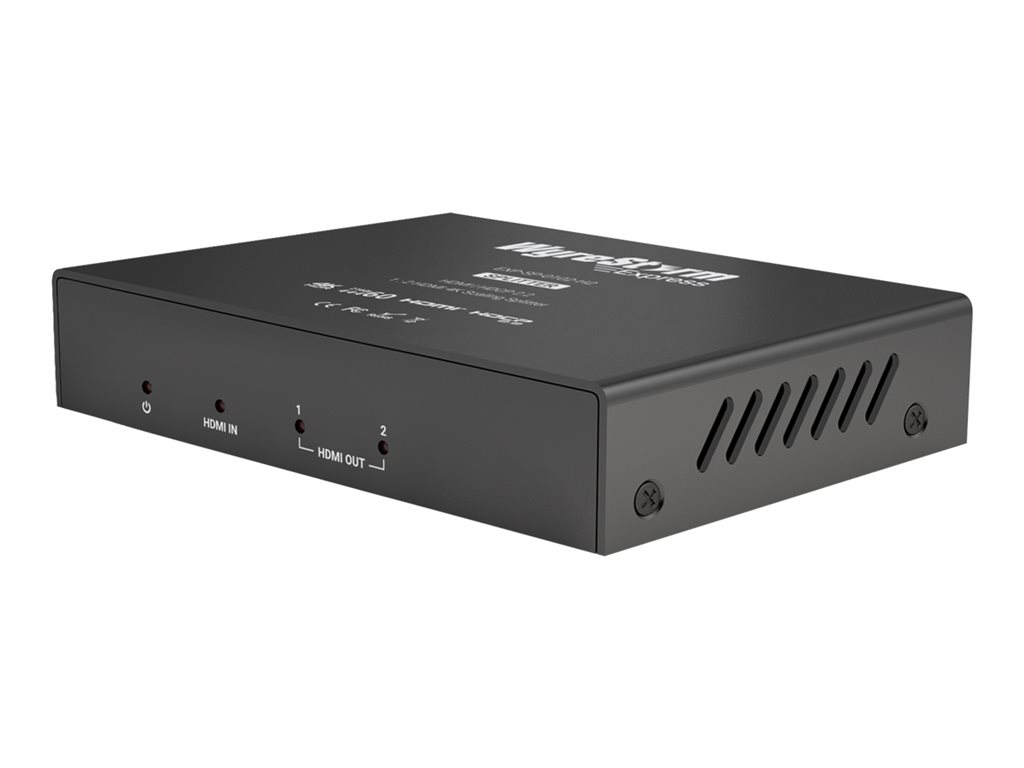

Video/audio splitter - 2 x HDMI - desktop
| Main Specifications | |
|---|---|
| Product Description | WyreStorm Express EXP-SP-0102-H2 - video/audio splitter - 2 ports |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | 1U |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Performance | Throughput: 18 Gbps |
| Features | HDCP compliant, 4K resolution support, 1080p resolution support, Dolby Atmos support, DTS:X support, Dolby Vision HDR support |
| Dimensions (WxDxH) | 5.5 in x 2.6 in x 0.8 in |
| Weight | 8.46 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | Desktop 1U |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Performance | Throughput: 18 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Features | HDCP compliant, 4K resolution support, 1080p resolution support, Dolby Atmos support, DTS:X support, Dolby Vision HDR support |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI output ¦ 1 x HDMI input |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, RCM, HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 1.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 2.6 in |
| Height | 0.8 in |
| Weight | 8.46 oz |
