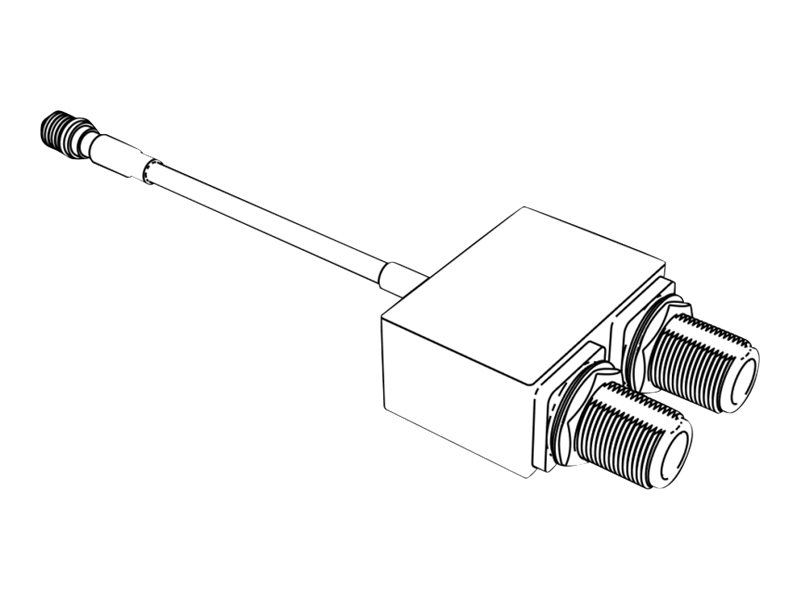

Antenna splitter - QMA connector male to N connector male (pack of 2) - for P/N: FM-SHIELD
| Main Specifications | |
|---|---|
| Product Description | Fluidmesh FM-SHIELD-SPL - antenna splitter |
| Cable | Antenna splitter |
| Packaged Quantity | 2 (specifications are for single item) |
| Connector | QMA connector - male |
| Connector (Second End) | 2 x N connector - male |
| Features | 5000-6000 MHz frequency range, insertion loss 0.6 dB, amplitude balance 0.2 dB, phase balance 3°, Voltage Standing Wave Ratio (VSWR) in 1.2, Voltage Standing Wave Ratio (VSWR) out 1.2, isolation 28 dB |
| Manufacturer Warranty | 90-day warranty |
| Designed For | P/N: FM-SHIELD |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Cable Type | Antenna splitter |
| Impedance | 50 Ohm |
| Features | 5000-6000 MHz frequency range, insertion loss 0.6 dB, amplitude balance 0.2 dB, phase balance 3°, Voltage Standing Wave Ratio (VSWR) in 1.2, Voltage Standing Wave Ratio (VSWR) out 1.2, isolation 28 dB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 days |
| Connectivity | |
| Connector | QMA connector - male |
| Connector (Second End) | 2 x N connector - male |
| Compatibility Information | |
| Designed For | P/N: FM-SHIELD |
