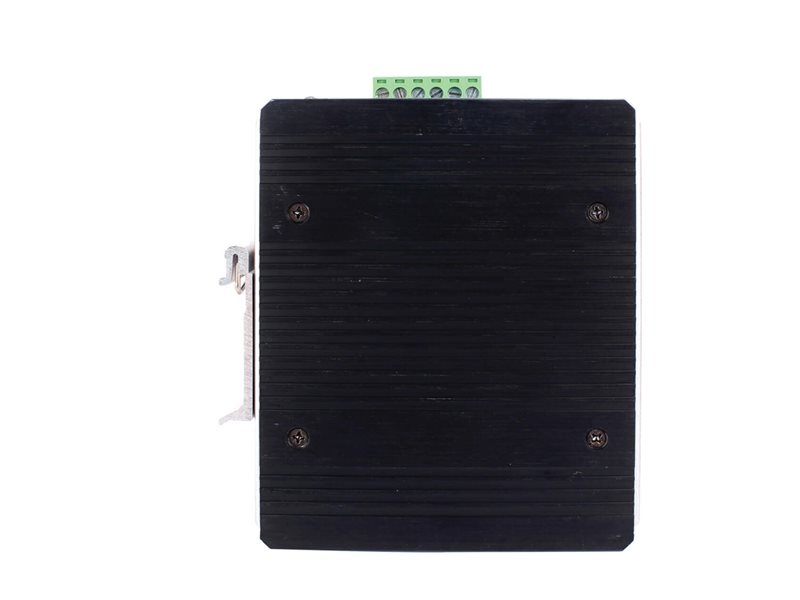

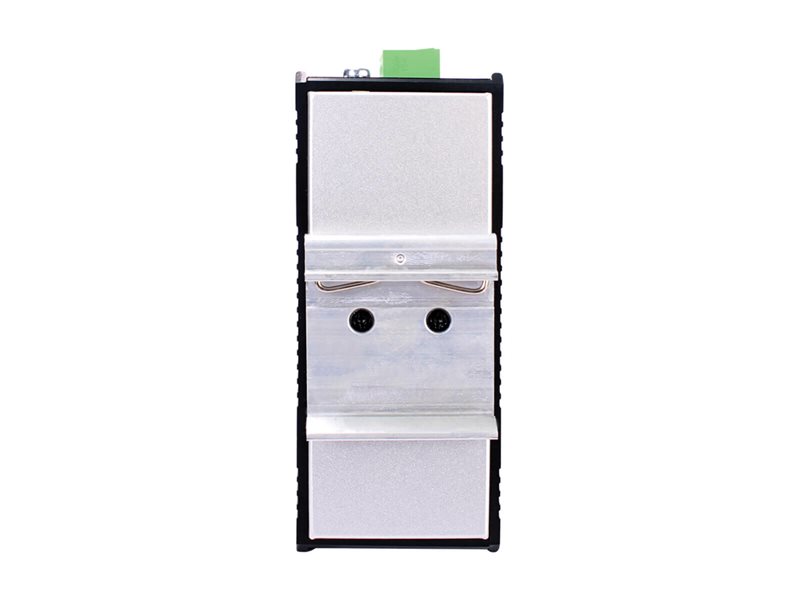

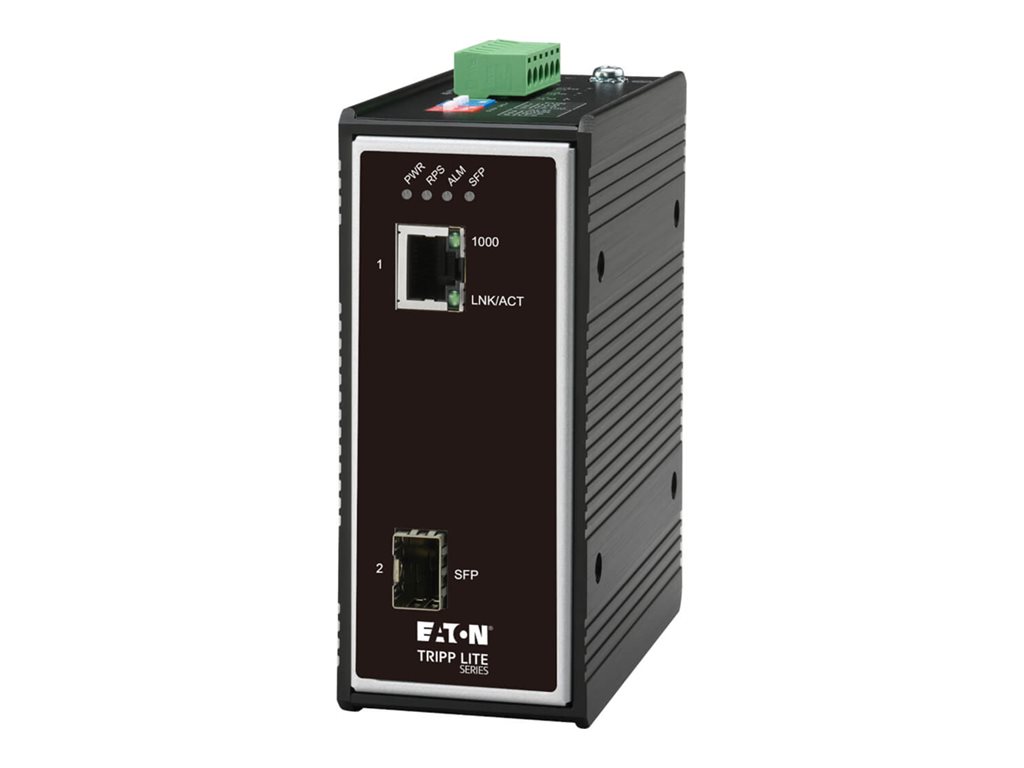

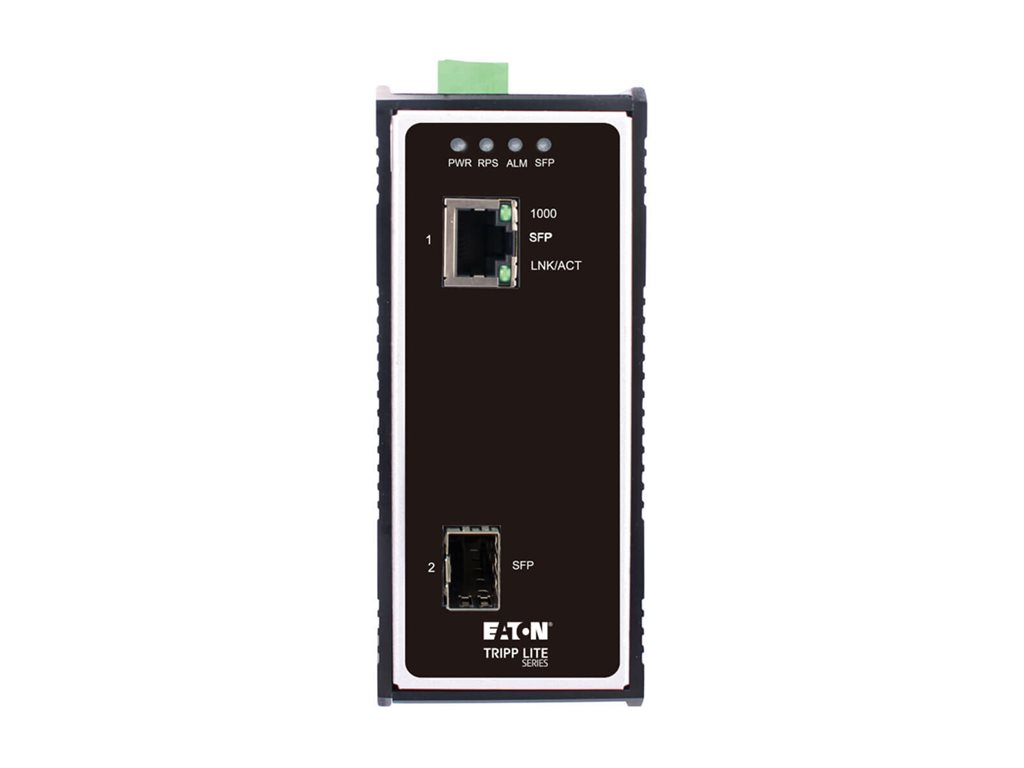

10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Industrial Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Dimensions (WxDxH) | 1.8 in x 3.8 in x 0.6 in |
| Weight | 14.88 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Ethernet 1000Base-X - SFP female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, 2 x connector caps |
| Mounting Kit | Included |
| Compliant Standards | IP30, RoHS, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Status Indicators | Status |
| Features | Auto-uplink (auto MDI/MDI-X), metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.8 in |
| Height | 0.6 in |
| Weight | 14.88 oz |
