Network surveillance camera - PTZ - dome - color (Day&Night) - 4 MP - 2688 x 1520 - motorized - audio - composite - LAN 10/100 - Ultra 265, H.264, MJPEG, H.265 - DC 12 V / AC 24 V / PoE Plus
| Main Specifications | |
|---|---|

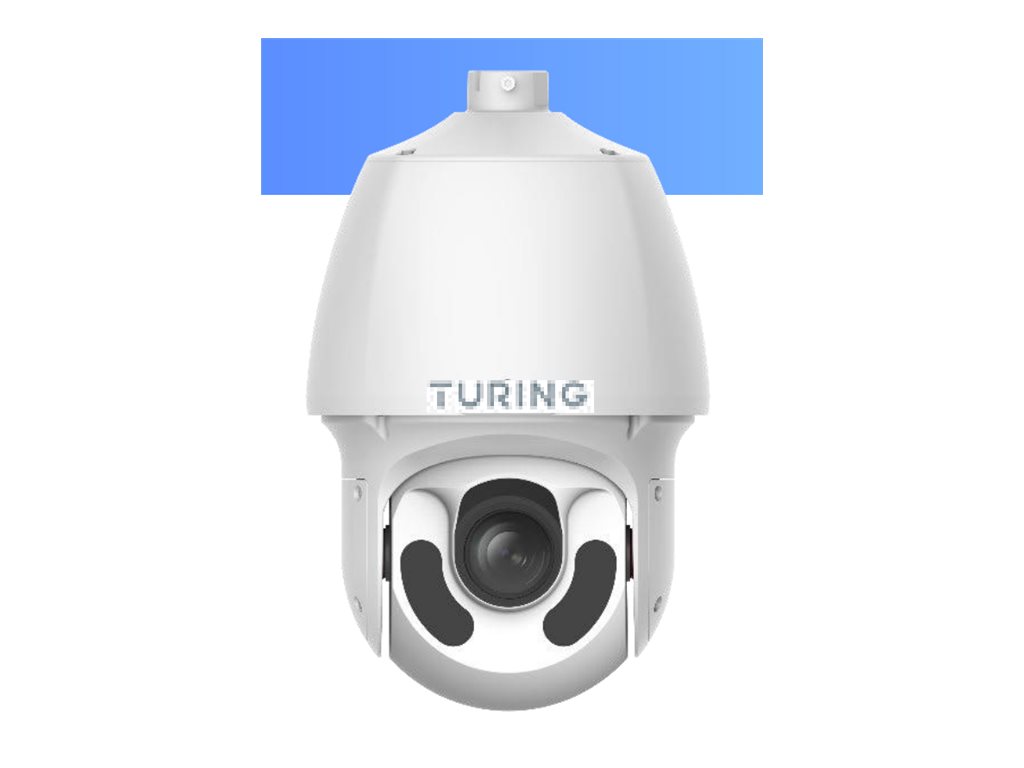

| Product Description | Turing SMART Series TP-MPC4AV33 - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / zoom - dome |
| Audio | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 8.9 in x 8.9 in x 15.1 in |
| Weight | 11.64 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 33 x |
| Max Resolution | 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 4 MP |
| Minimum Illumination | 0.003 lux - color - F1.5 - AGC on ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.5 mm - 148.5 mm |
| Lens Iris | F/1.5-4.0 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -15 to +90 |
| Interfaces | Composite video, Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / AC 24 V / PoE Plus |
| Features | TwilightVision technology, Wide Dynamic Range (WDR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, 2D digital noise reduction (DNR), 3D Noise Reduction Technology |
| Environmental Parameters (operating) | -40 °F - 158 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711u, G.711a |
| Form Factor | Dome |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 8.9 in |
| Depth | 8.9 in |
| Height | 15.1 in |
| Weight | 11.64 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Serial RS-485 ¦ Video output - BNC |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Compliant Standards | NDAA, IP67, IK10 |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE Plus |
| Power Device | 25 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | Ultra 265, H.264, MJPEG, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Digital Zoom | 16 |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.003 lux - color - F1.5 - AGC on ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 492 ft |
| Digital Video Capture Resolution | 2688 x 1520, 1920 x 1080, 720 x 576 |
| Frame Rate (max) | 30 frames per second |
| Features | TwilightVision technology, Wide Dynamic Range (WDR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, 2D digital noise reduction (DNR), 3D Noise Reduction Technology |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 33 x |
| Focal Length | 4.5 mm - 148.5 mm |
| Lens Iris | F/1.5-4.0 |
| Horizontal Field of View (degree) | 2.3 - 53 |
| Vertical Field of View (degree) | 1.3 - 31 |
| Diagonal Field of View (degree) | 2.7 - 65.2 |
| Image Sensor | |
| Type | 4 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QOS, RTMP, SSH |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 300 |
| Tilting | |
| Range (degree) | -15 to +90 |
| Speed (degree/sec) | Up to 240 |
