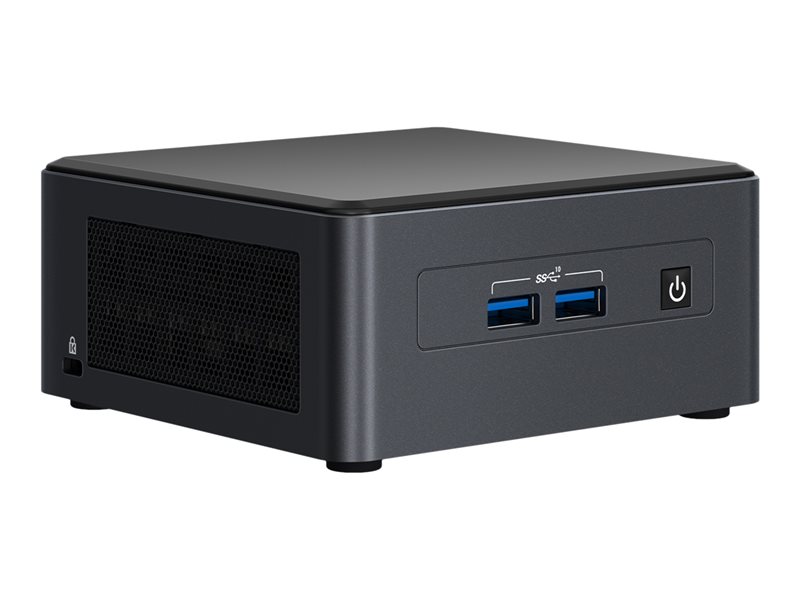

Barebone - mini PC 1 x Core i3 1115G4 / up to 4.1 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing 11 Pro Kit NUC11TNHi30Z - mini PC Core i3 1115G4 - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Localization | Region: United States |
| Processor | 1 x Intel Core i3 (11th Gen) 1115G4 (up to 4.1 GHz, (Dual-Core) |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions, Intel Platform Trust Technology (PTT), Intel Virtualization Technology for Directed I/O |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 0 GB DDR4 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth 5.2 |
| Dimensions (WxDxH) | 4.6 in x 4.4 in x 2.1 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x USB 3.2 - Type A (2 in front) ¦ 1 x USB 3.2 - Type A (1 rear) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 2 x HDMI |
| RAM | |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I225-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 |
| Storage Controller | |
| Type | SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI |
| Max Monitors Supported | 2 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 4.4 in |
| Height | 2.1 in |
| Processor / Chipset | |
| CPU | Intel Core i3 (11th Gen) 1115G4 |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions, Intel Platform Trust Technology (PTT), Intel Virtualization Technology for Directed I/O |
