4K 60 Hz HDMI/DisplayPort, USB 3.2 Gen 2, USB-A/USB-C Hub, GbE, 85W PD Charging, Black - Docking station - USB-C / Thunderbolt 3 - HDMI, 2 x DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K 60 Hz HDMI/DisplayPort, USB 3.2 Gen 2, USB-A/USB-C Hub, GbE, 85W PD Charging, Black - docking station - USB-C / Thunderbolt 3 - HDMI, 2 x DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 |
| Video Interfaces | HDMI, 2 x DP |
| Dimensions (WxDxH) | 7.5 in x 1.1 in x 3.4 in |
| Weight | 8.78 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50 - 60 Hz) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 7.5 in |
| Depth | 1.1 in |
| Height | 3.4 in |
| Weight | 8.78 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |

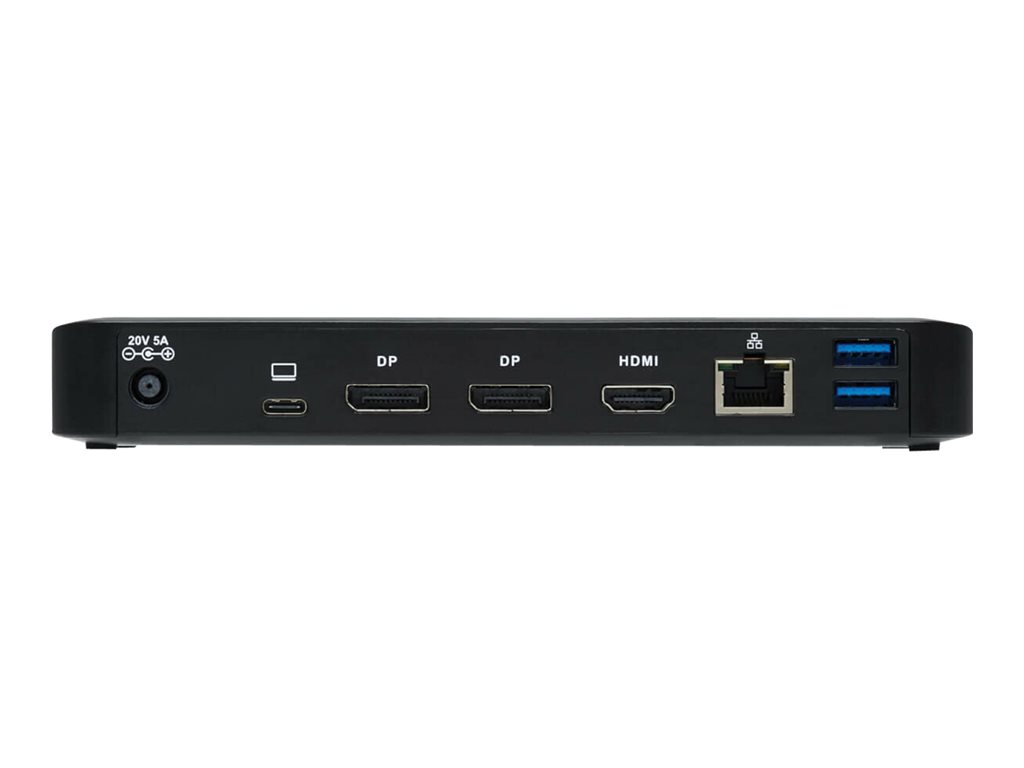

| Interfaces | 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 with Fast Charging - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (85 W) - 24 pin USB-C ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort (1.4) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm 4-pole |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | USB-C to USB-C cable - external - 3.3 ft |
| Features | Security lock slot (cable lock sold separately), full duplex support, DisplayPort Alt Mode, 85W power delivery, suspend mode support, auto MDIX support, remote wakeup support, Mirror Mode, Extended Mode, 4:4:4 chroma subsampling, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2), 36-bit True Color |
| Security Slot Type | Kensington security slot |
| Compliant Standards | HDCP 2.2, USB Power Delivery 3.0, HDCP 1.4, FCC, RoHS, REACH, GS, TUV, UL, cUL, Plug and Play |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 30 Hz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.6 in |
| Shipping Depth | 5.8 in |
| Shipping Height | 3.6 in |
| Shipping Weight | 3.06 lbs |
