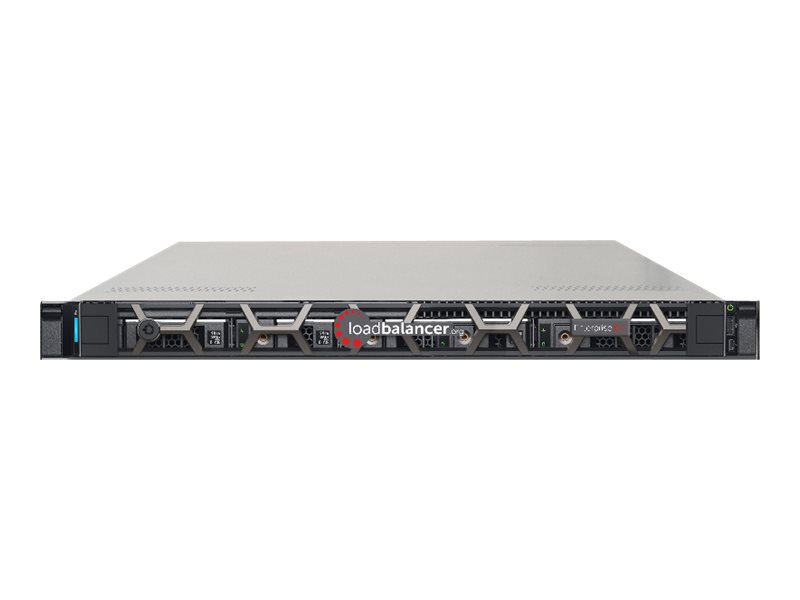

Load balancing device - 10GbE, 25GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Loadbalancer.org Enterprise 25G - load balancing device |
| Device Type | Load balancing device |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Xeon E-2286G - 4 GHz |
| RAM | 16 GB |
| Hard Drive | 480 GB x 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Throughput: 48 Gbps |
| Capacity | HTTP requests per second: 1234455 ¦ Concurrent sessions: 31200000 ¦ Layer 7 connections: 600000 ¦ SSL transactions per second (2K keys): 6111 ¦ SSL transactions per second (1K keys): 15883 ¦ SSL transactions per second (ECC, 3K keys): 19584 ¦ Real Servers: unlimited |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Weight | 29.98 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Load balancing device |
| Height (Rack Units) | 1U |
| Weight | 29.98 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 25Gb Ethernet - SFP28 ¦ 2 x 1000Base-T - RJ-45 ¦ VGA - HD-15 ¦ USB ¦ Serial |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - on-site - response time: next business day ¦ Engineering service - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS, FIPS 140-2, PCI DSS |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, SMTP, FTP, DNS, POP3, IMAP, HTTP, HTTPs |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH |
| Performance | Throughput: 48 Gbps |
| Capacity | HTTP requests per second: 1234455 ¦ Concurrent sessions: 31200000 ¦ Layer 7 connections: 600000 ¦ SSL transactions per second (2K keys): 6111 ¦ SSL transactions per second (1K keys): 15883 ¦ SSL transactions per second (ECC, 3K keys): 19584 ¦ Real Servers: unlimited |
| Features | NAT support, auto-negotiation, SNAT support, layer 4 load balancing, layer 7 load balancing, Direct Server Return (DSR), Global Server Load Balancing (GSLB), SYN Flooding, Server Load Balancing (SLB), Link Aggregation, scheduler, Web Application Firewall (WAF), Weighted Round Robin (WRR), VLAN Tagging, traffic monitoring, SQL injection protection, Cross-Site Scripting protection |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Authentication Method | Secure Shell (SSH) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 550 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% RH |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Xeon E-2286G 4 GHz |
| RAM | 16 GB |
| Hard Drive | SSD 480 GB x 1 |
