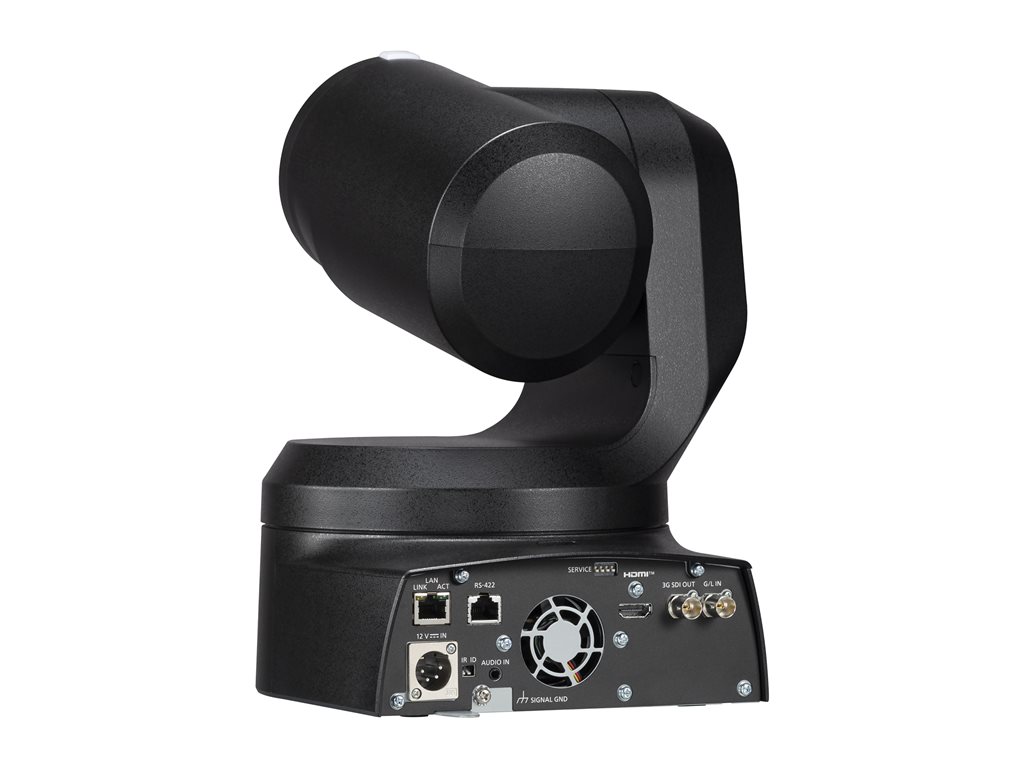

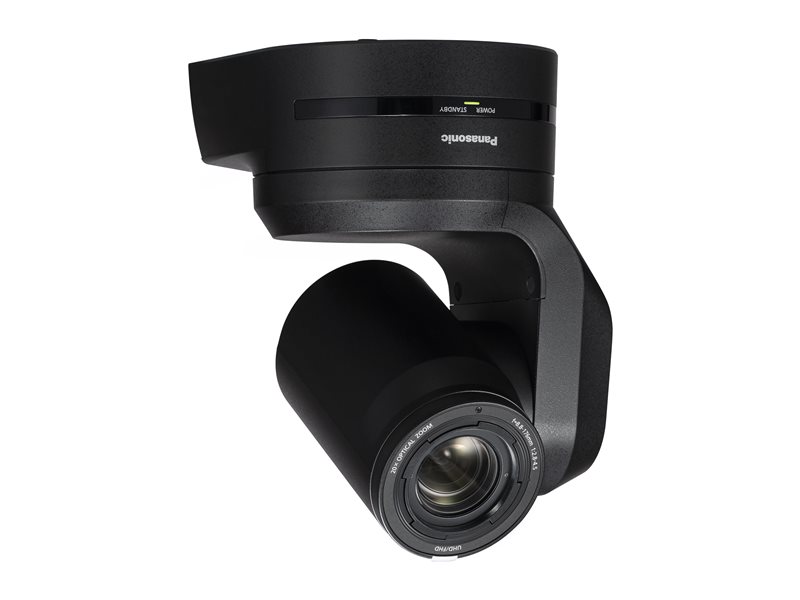

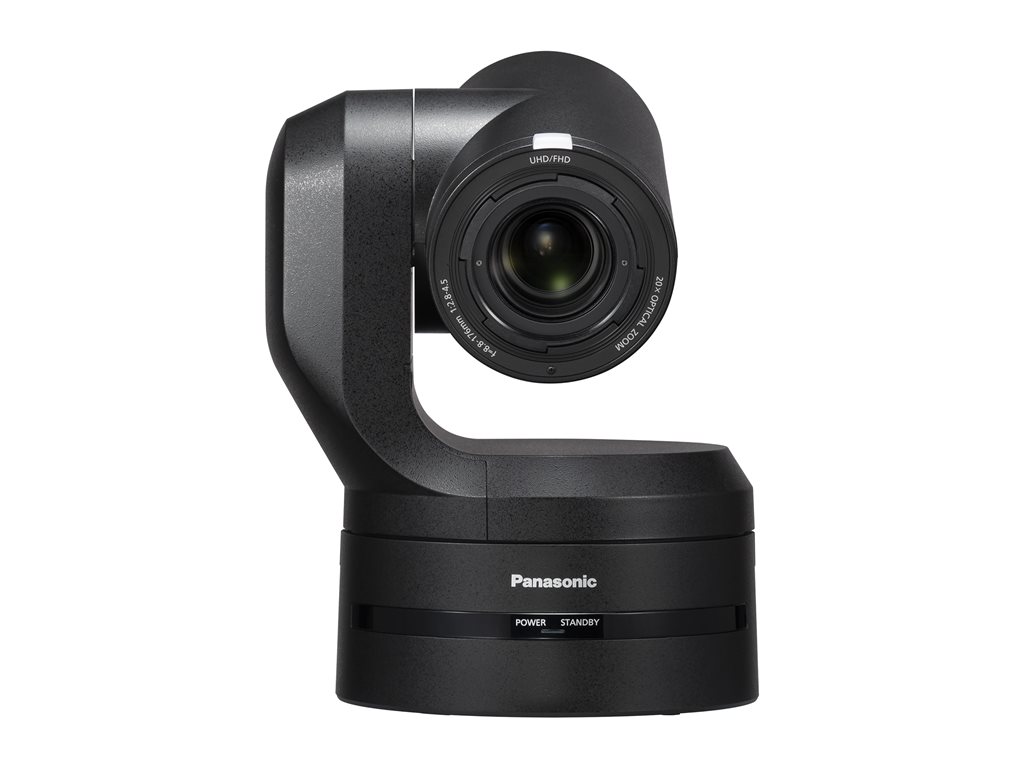

Conference camera - PTZ - color - motorized - 1000 TVL - audio - HDMI, 3G-SDI - LAN - MJPEG, H.264, H.265 - DC 12 V / PoE Plus
| Main Specifications | |
|---|---|

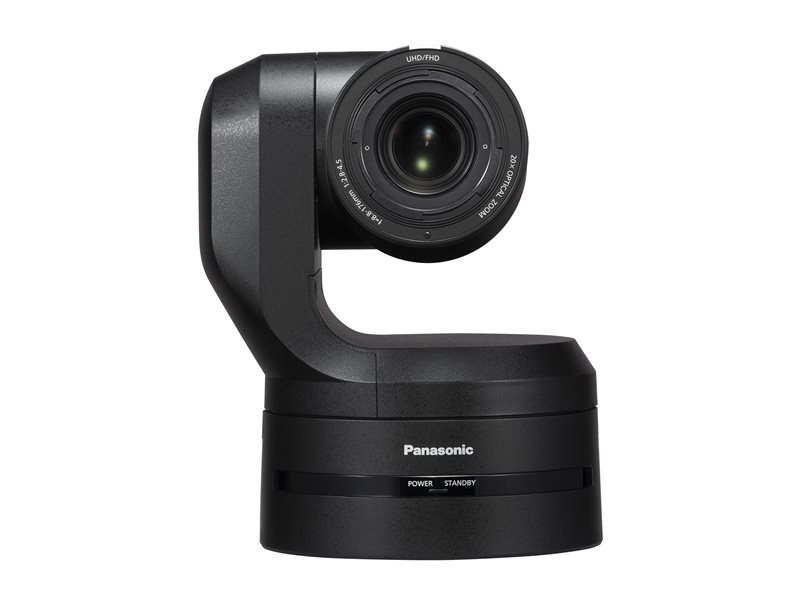

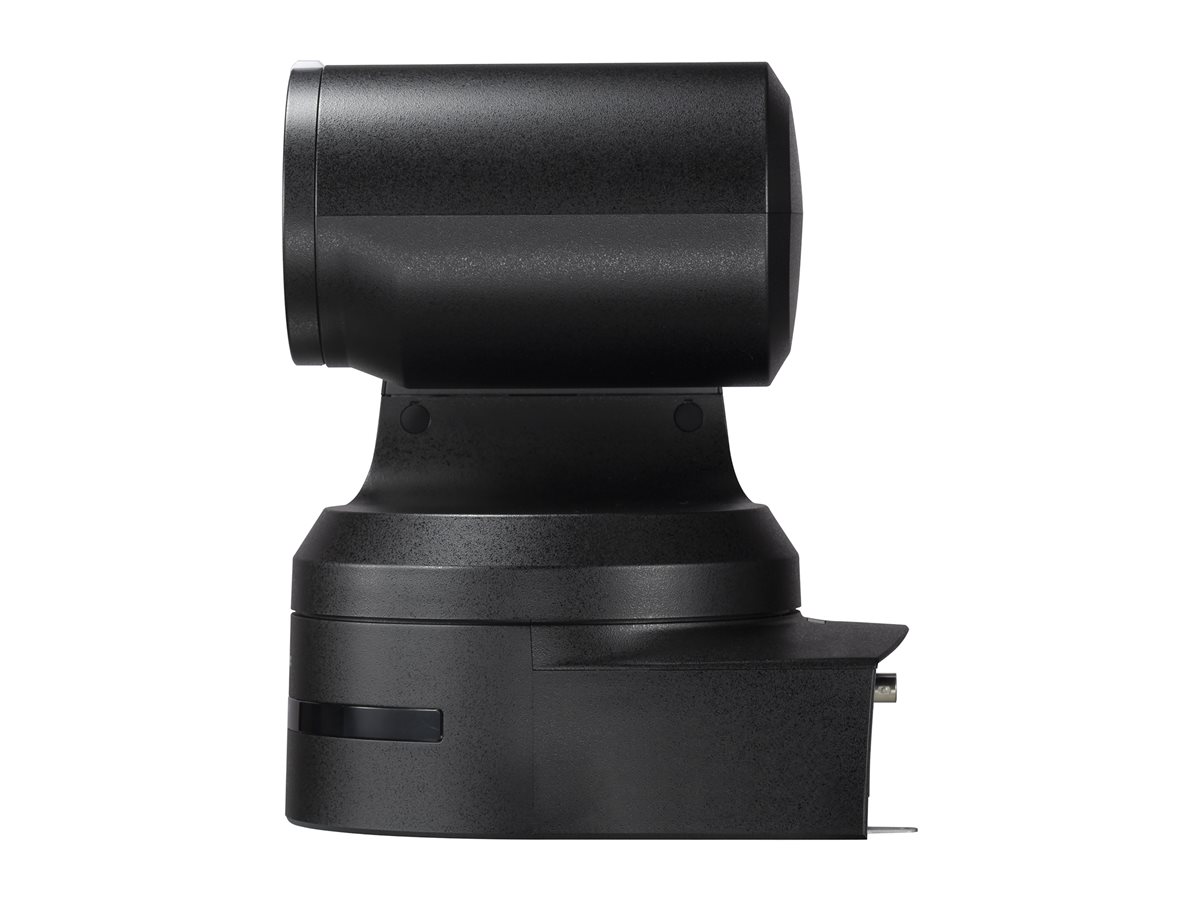

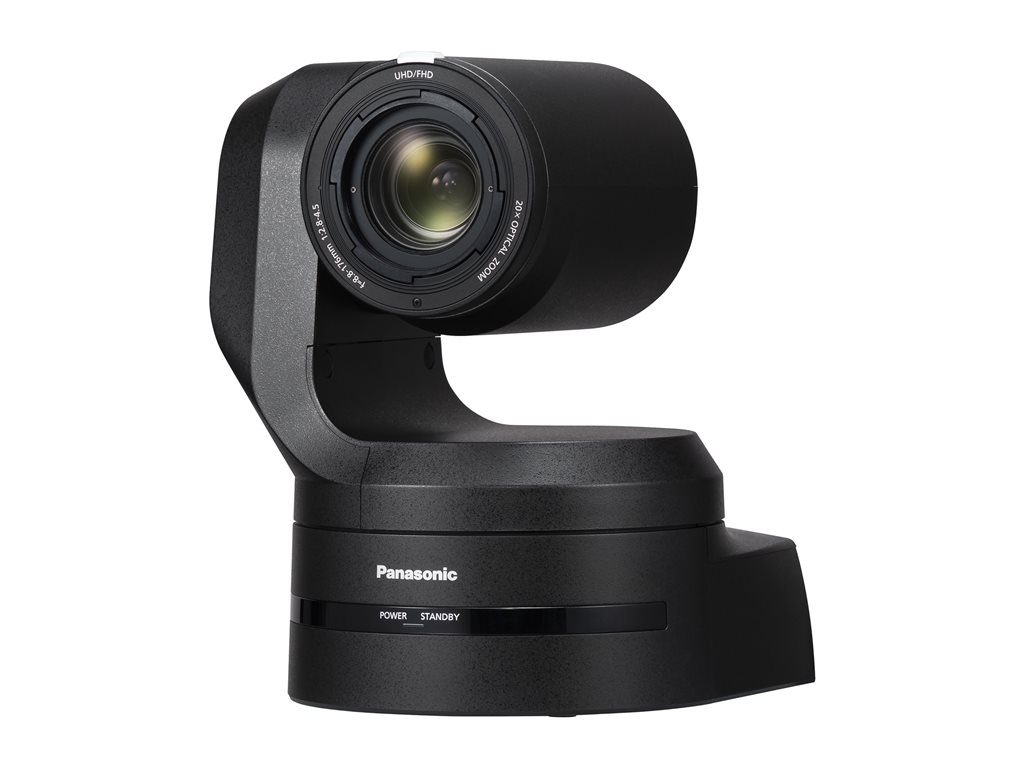

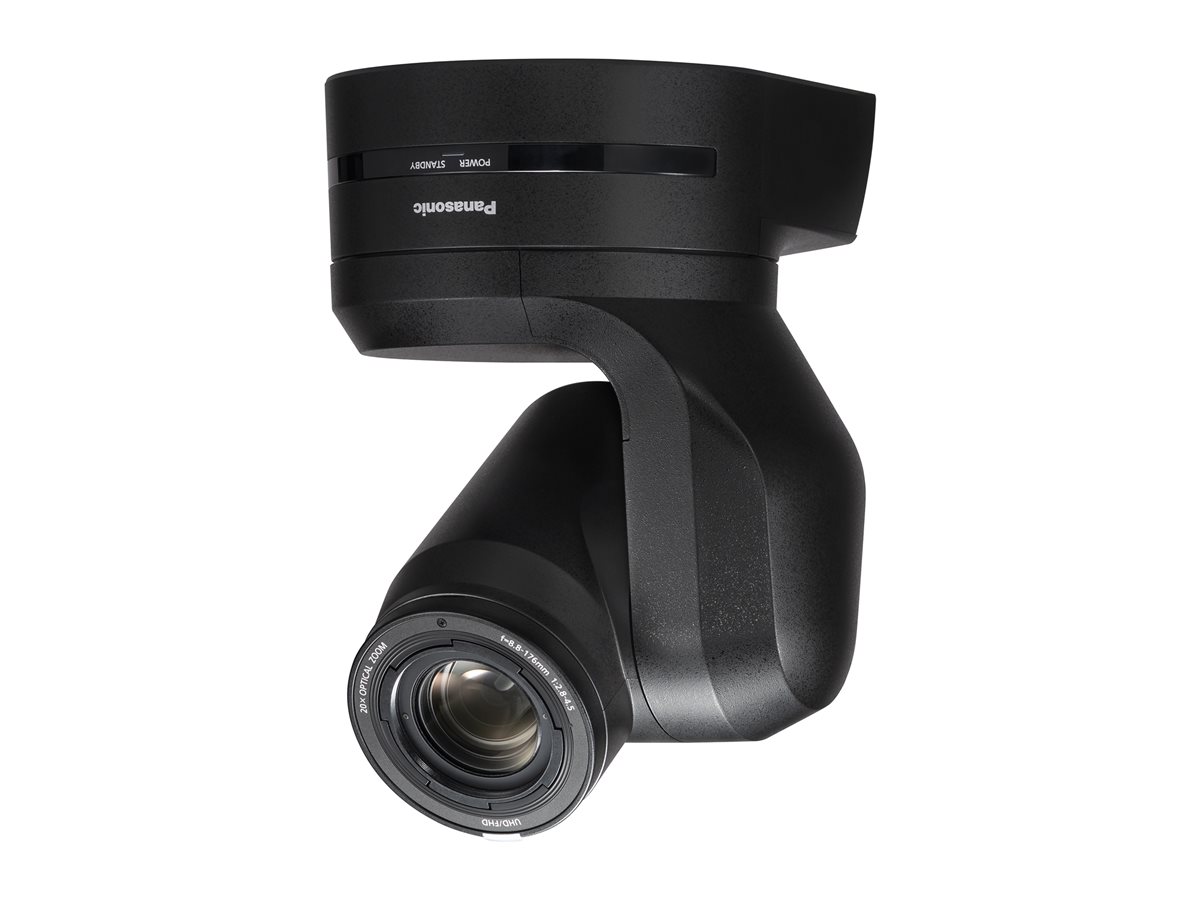

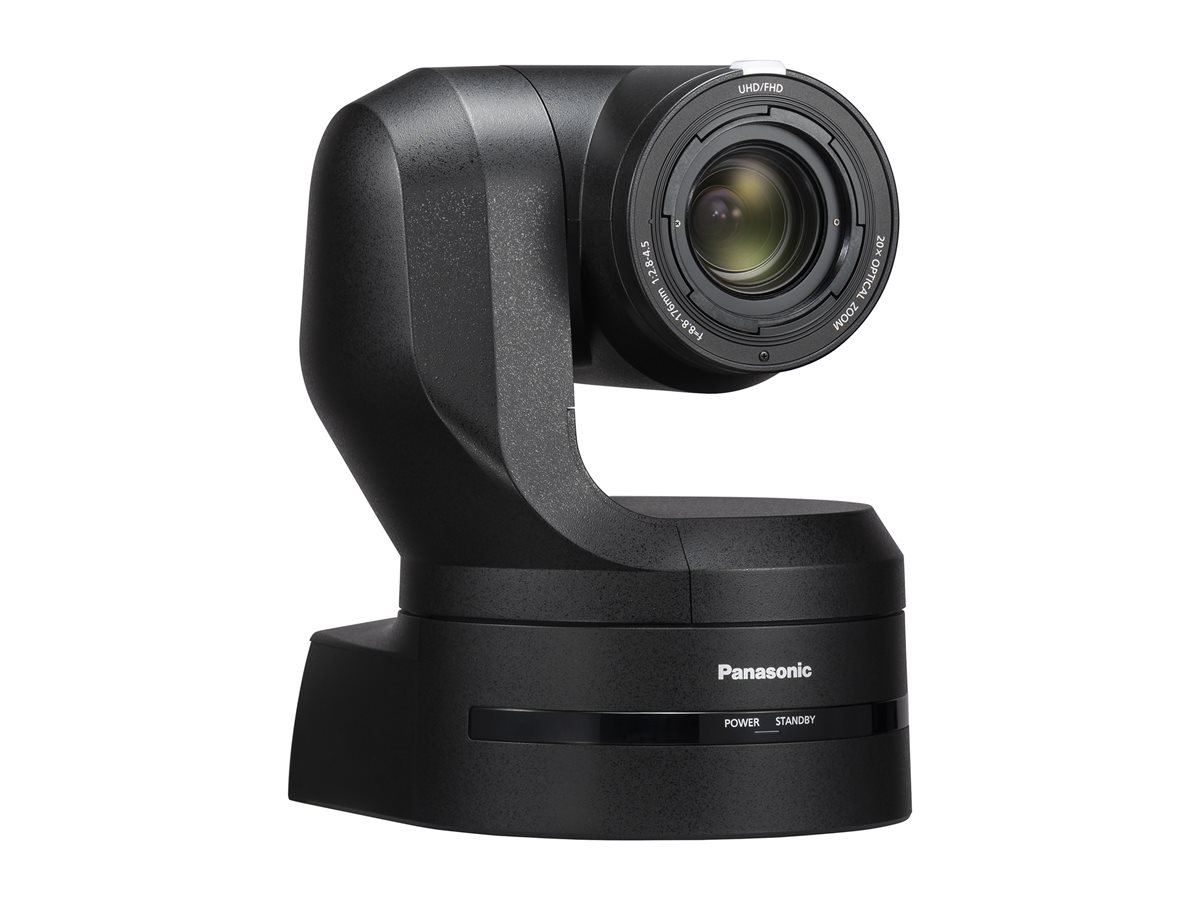

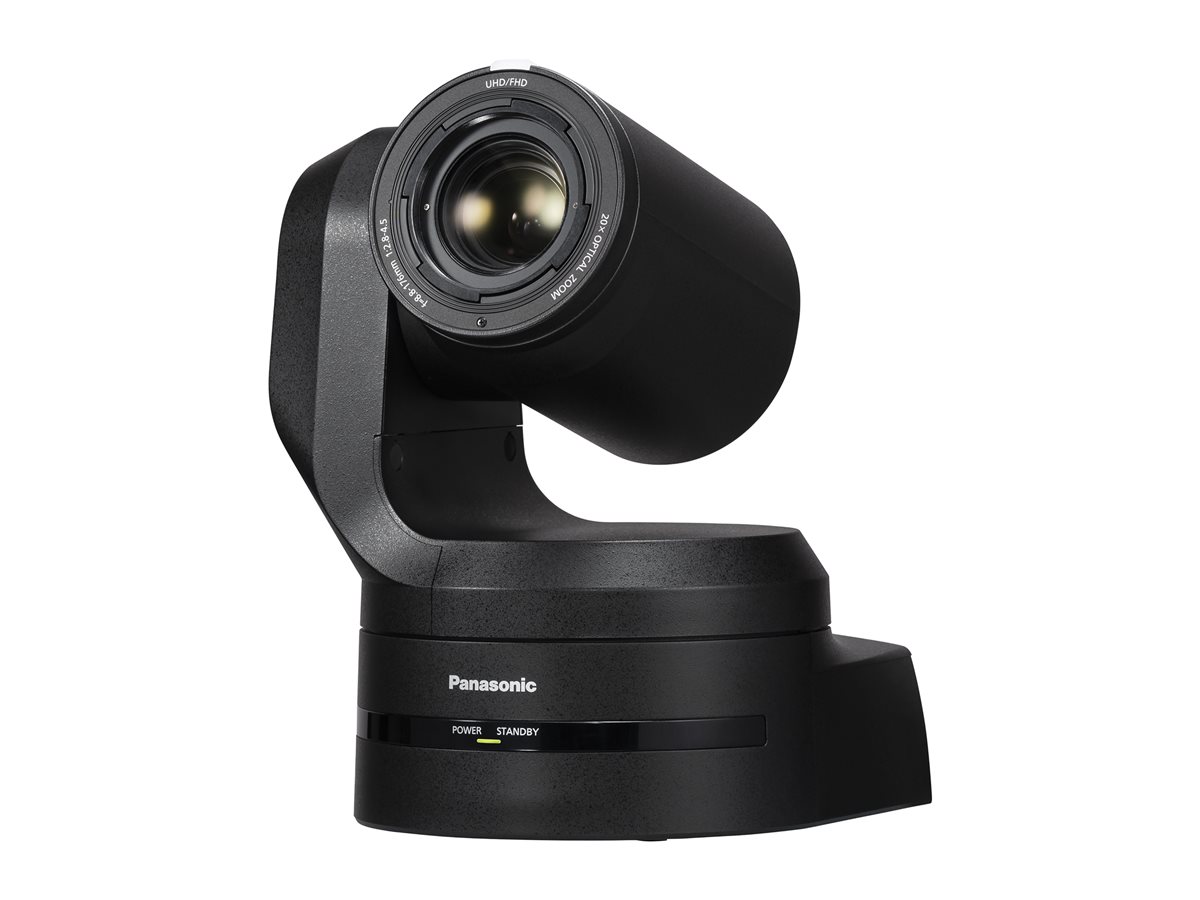

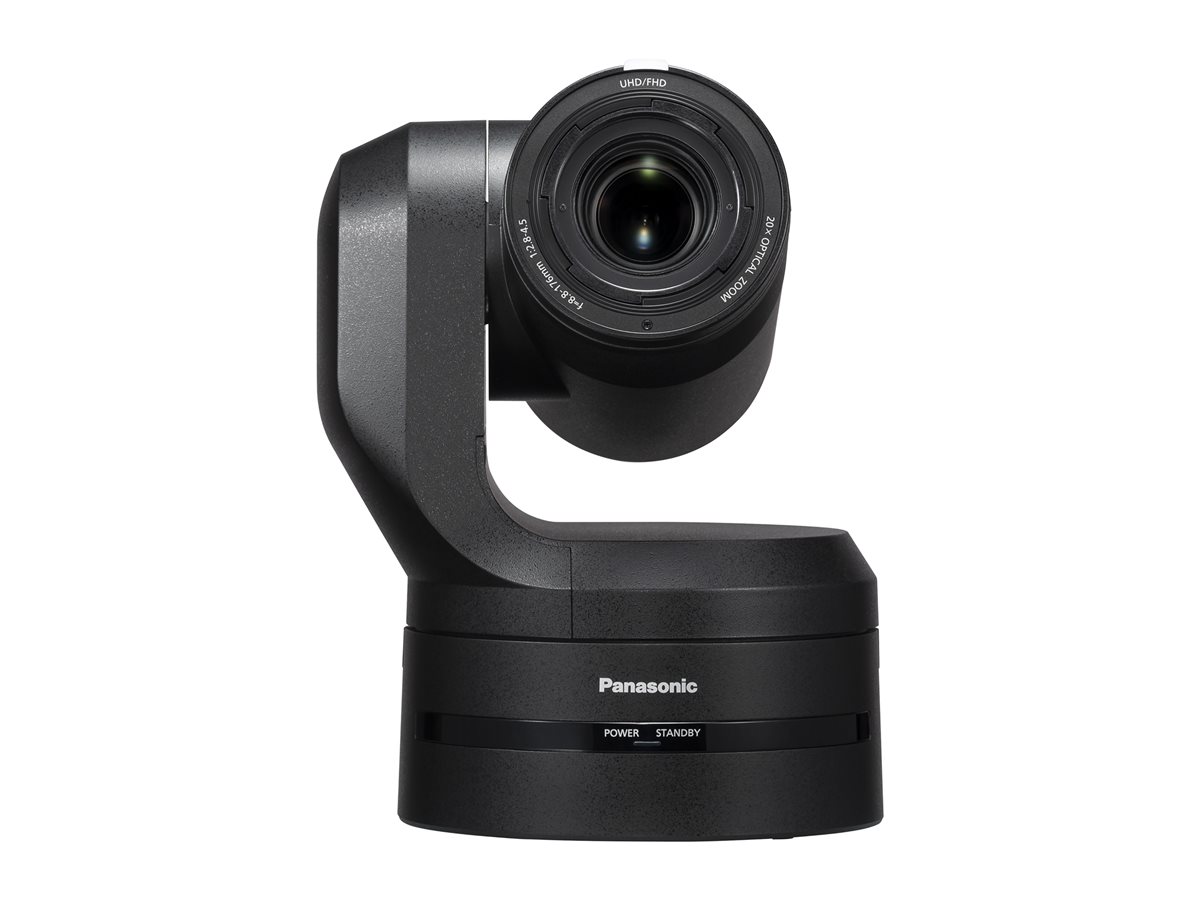

| Product Description | Panasonic AW-HE145KPJ - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Dimensions (WxDxH) | 8.4 in x 8.6 in x 10.5 in |
| Weight | 9.04 lbs |
| Color | Metallic black |
| Connectivity Technology | Wired |
| Camera | Color - 1000 TVL |
| Optical Zoom | 20 x |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Optical Sensor Type | Full-HD MOS - 1" |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 8.8 mm - 176 mm |
| Focus Adjustment | Automatic, manual (min distance 3.9 in) |
| Lens Iris | F/2.8-4.5 |
| Panning Range (degree) | -175 to +175 |
| Tilting Range (degree) | -30 to +210 |
| Interfaces | HDMI, 3G-SDI, LAN |
| Control Interface | RS-422A |
| Voltage | DC 12 V / PoE Plus |
| Features | Auto gain control, auto white balance |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Audio Formats | AAC-LC, AAC |
| Connectivity Technology | Wired |
| Width | 8.4 in |
| Depth | 8.6 in |
| Height | 10.5 in |
| Weight | 9.04 lbs |
| Expansion / Connectivity | |

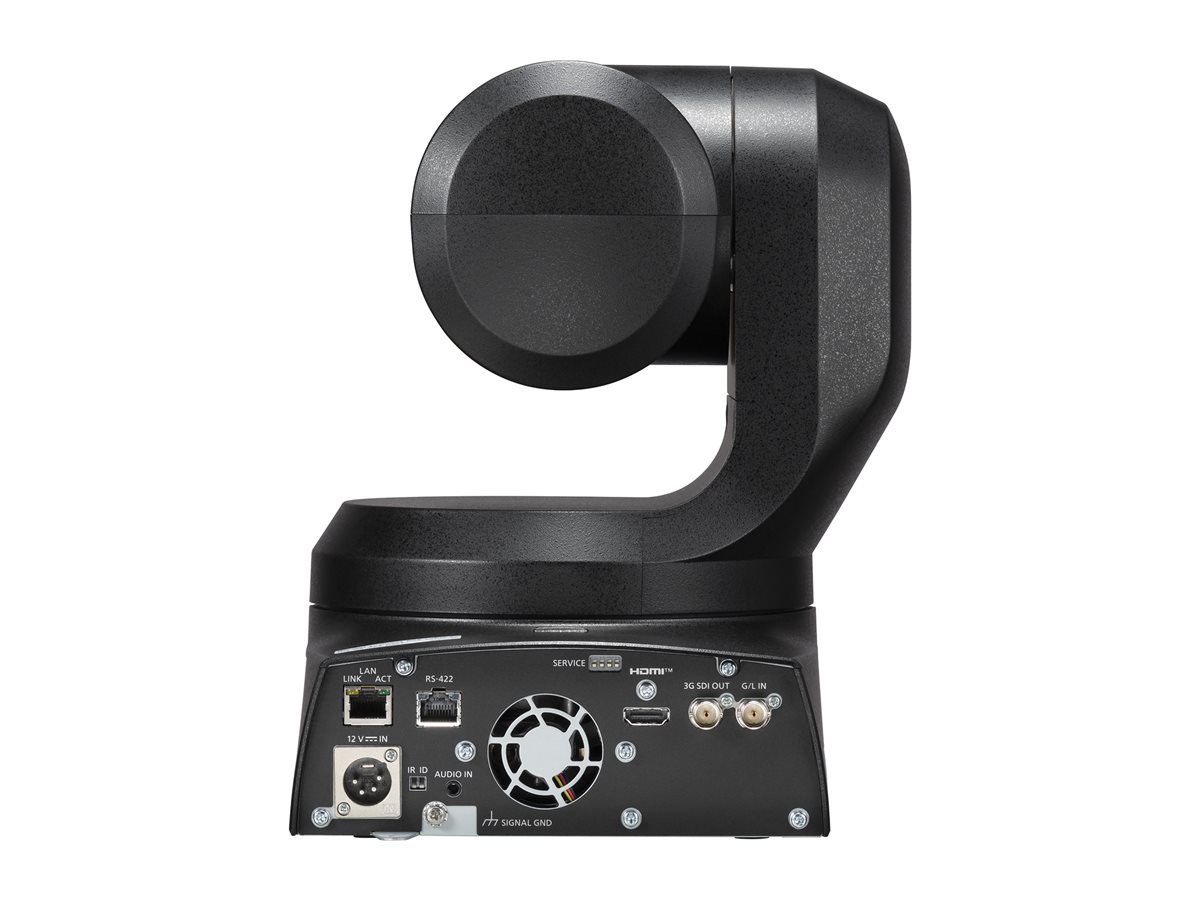

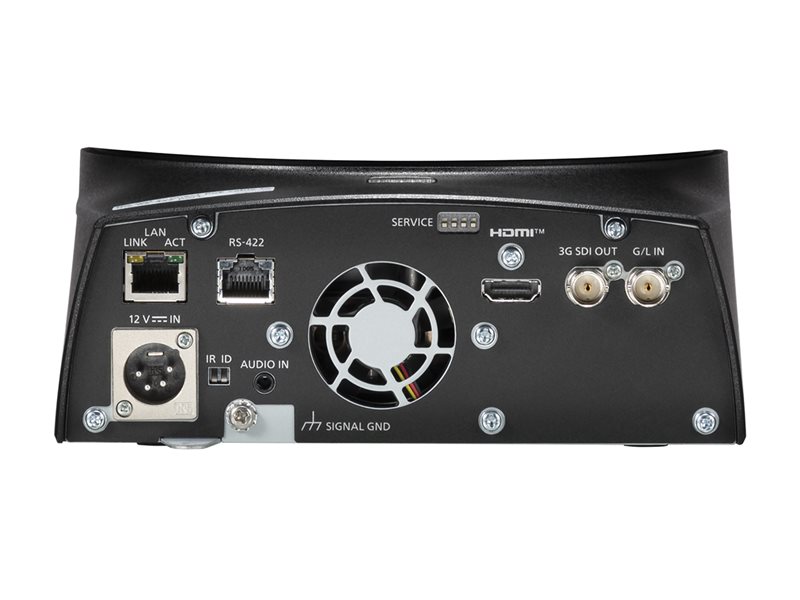

| Ports | LAN/power - RJ-45 ¦ HDMI output ¦ 3G-SDI output - BNC ¦ Serial RS-422 - RJ-45 ¦ Audio line-in/microphone - 3.5 mm stereo jack |
| Miscellaneous | |
| Color | Metallic black |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Software / System Requirements | |
| OS Required | Windows 10, Apple macOS 11.0.1, Apple macOS 10.15, Apple macOS 10.14, Android, Apple iOS, Apple iPadOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Horizontal Resolution (TV Lines) | 1000 |
| Video Modes | 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Digital Zoom | 10 |
| Exposure Range | 1/24 sec - 1/10000 sec |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Frame Rate (max) | 60 frames per second |
| Supported Image Formats | JPEG |
| Features | Auto gain control, auto white balance |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 8.8 mm - 176 mm |
| Lens Iris | F/2.8-4.5 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.9 in |
| Horizontal Field of View (degree) | 4 - 75.1 |
| Vertical Field of View (degree) | 2.3 - 46.7 |
| Diagonal Field of View (degree) | 4.6 - 82.8 |
| Image Sensor | |
| Type | Full-HD MOS 1" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | LAN |
| Network Protocols | NDI HX, RTMP, RTMPS, IPv4, IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, NTP, DHCP, MLD, ICMP, ARP, RTP, RTSP, RTCP, DNS, DDNS, IGMP, SRT |
| Control Interface | RS-422A |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
