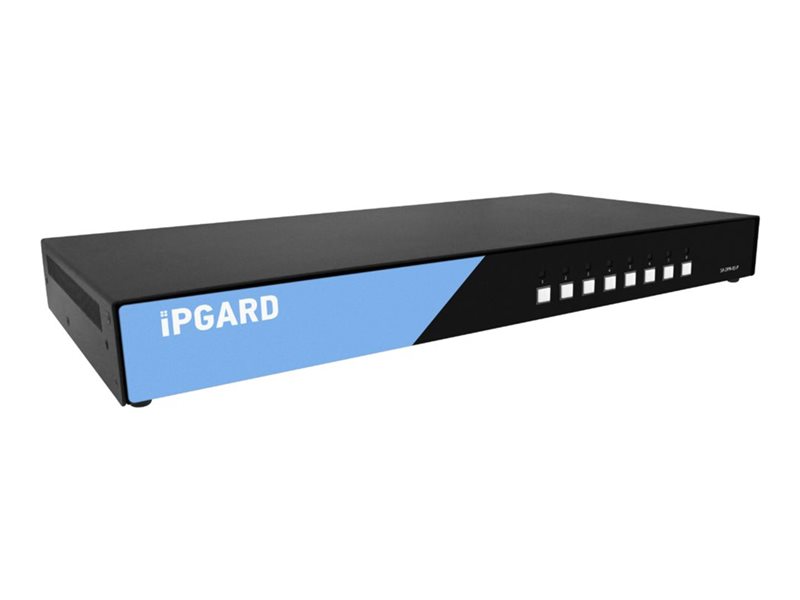

KVM / audio switch - secure, DP, CAC support - 8 x KVM / audio - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | iPGARD SA-DPN-8S-P - KVM / audio switch - secure, DP, CAC support - 8 ports - TAA Compliant |
| Device Type | KVM / audio switch - 8 ports |
| Subtype | KVM |
| Ports | 8 x KVM / audio |
| Features | Automatic equalization, NIAP Protection Profile 4.0 |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17 in x 8.7 in x 1.8 in |
| Weight | 6.31 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 8 x KVM / audio |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Automatic equalization, NIAP Protection Profile 4.0 |
| Compliant Standards | USB 1.1, USB 2.0 |
| Status Indicators | Port status |
| Expansion / Connectivity | |
| Interfaces | 9 x DisplayPort input female ¦ 1 x DisplayPort output female ¦ 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 16 x USB Type B ¦ 8 x audio input phone stereo 3.5 mm ¦ 1 x audio output phone stereo 3.5 mm ¦ 1 x USB 2.0 common access card (CAC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | NIAP PP 4.0, UL, RoHS, ICES-003, FCC Class A certified |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 24 watt - DC 12 V - 3 A |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 8.7 in |
| Height | 1.8 in |
| Weight | 6.31 lbs |
