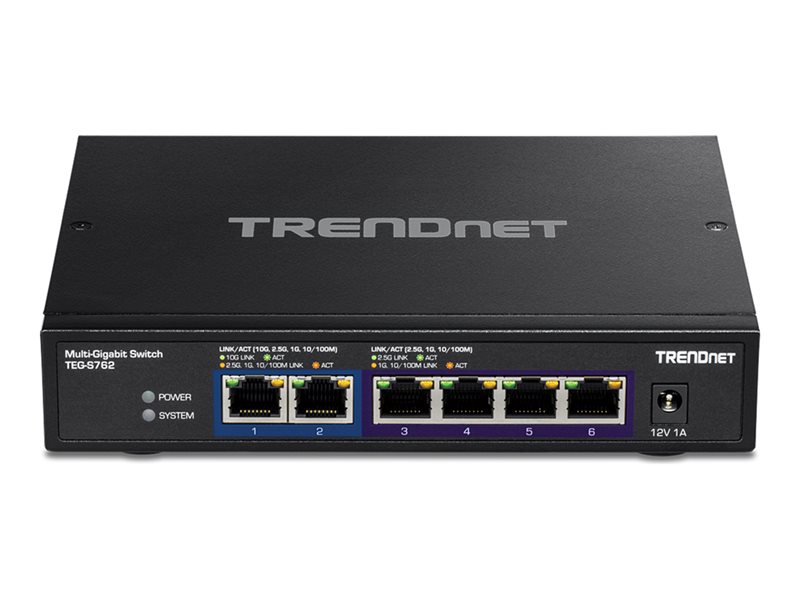

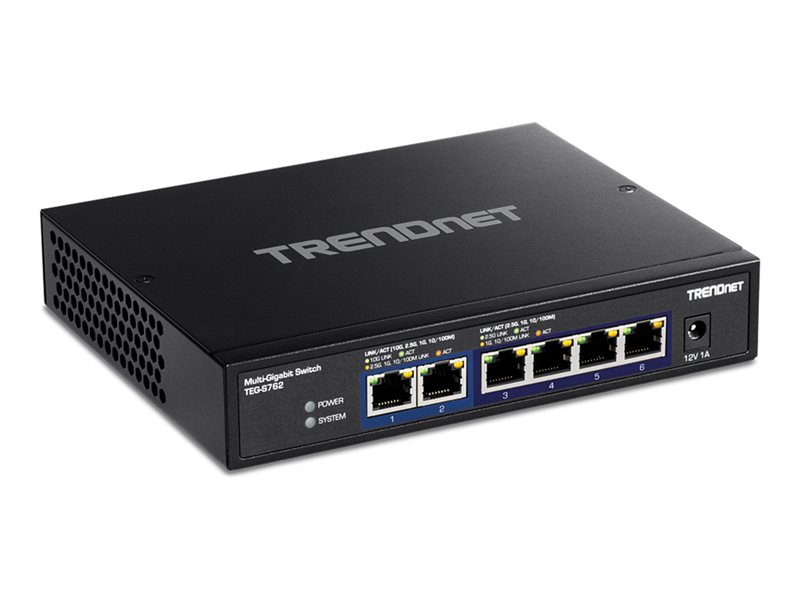

Switch - unmanaged - 2 x 10GBase-T + 4 x 2.5GBase-T - desktop, wall-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-S762 - switch - 6 ports - unmanaged - TAA Compliant |
| Device Type | Switch - 6 ports - unmanaged |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x 10GBase-T + 4 x 2.5GBase-T |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate (64?byte packets): 44.64 Mpps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.1 in x 5.7 in x 1.3 in |
| Weight | 5.14 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x 10GBase-T + 4 x 2.5GBase-T |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate (64?byte packets): 44.64 Mpps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-T RJ-45 ¦ 4 x 2.5GBase-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 379,884 hours |
| Compliant Standards | IC, FCC |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 11.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.1 in |
| Depth | 5.7 in |
| Height | 1.3 in |
| Weight | 5.14 lbs |
