Network surveillance camera - bullet - outdoor - ingress protection / vandal resistant - color (Day&Night) - 4 MP - 2688 x 1520 - fixed focal - audio - LAN 10/100 - H.265, H.264, Ultra 265, MJPEG - DC 12 V / PoE
| Main Specifications | |
|---|---|

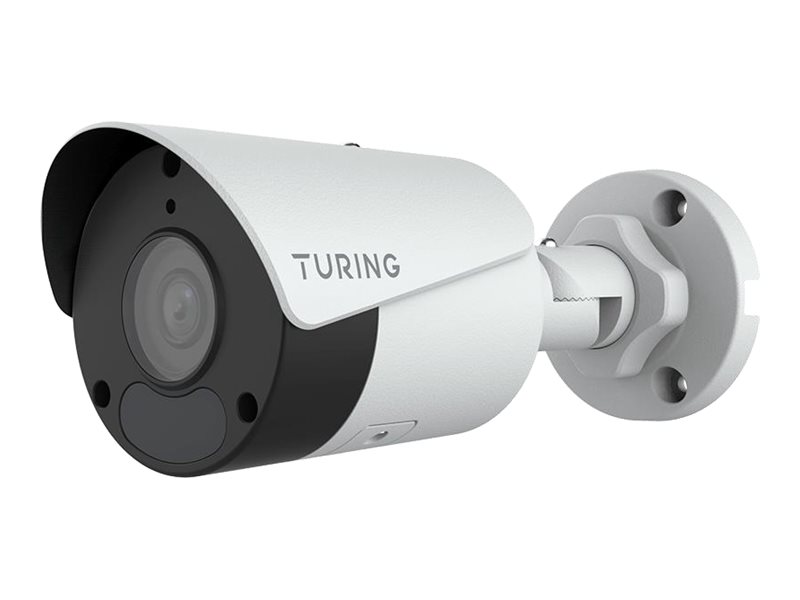

| Product Description | Turing SMART Series TP-MFB4M28 - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - outdoor - ingress protection / vandal resistant |
| Audio | Yes: built-in microphone |

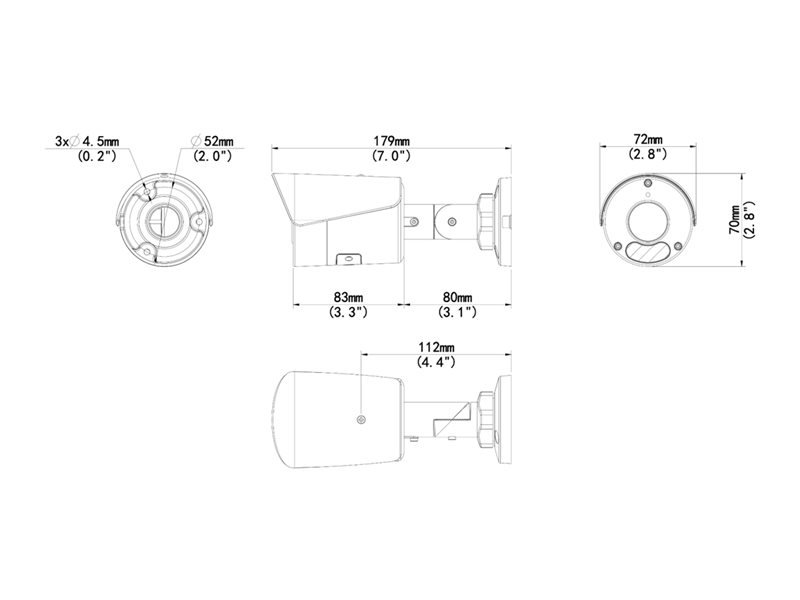

| Dimensions (WxDxH) | 6.1 in x 2.5 in x 2.5 in |
| Weight | 14.81 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/3" - 4 MP |
| Minimum Illumination | 0.003 lux - color - F1.0 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | Tampering alarm, Audio Detection, cross line detection, intrusion detection, enter area detection, People Detection, Vehicle Detection, non-motor vehicle detection, Wide Dynamic Range (WDR), 2D digital noise reduction (DNR), 3D Noise Reduction Technology, Defog, Highlight Compensation (HLC), Backlight Compensation (BLC), Region of Interest (ROI), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, reset button, auto ICR, digital defog, Smart IR, Privacy Mask Function, watermark, ARP protection, RTSP authentication, user authentication, IP address filtering, surge protection |
| Environmental Parameters (operating) | -22 °F - 140 °F; 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 2.5 in |
| Height | 2.5 in |
| Weight | 14.81 oz |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Compliant Standards | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, IEEE 802.3af, EN 60950-1, UL60950-1, FCC Part 15 |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 4 watt |
| Software / System Requirements | |
| Software Included | Turing Vision Cloud VMS |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - ingress protection / vandal resistant |
| Digital Video Format | H.265, H.264, Ultra 265, MJPEG |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.003 lux - color - F1.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360, 704 x 288, 352 x 288 |
| Frame Rate (max) | 30 frames per second |
| Features | Tampering alarm, Audio Detection, cross line detection, intrusion detection, enter area detection, People Detection, Vehicle Detection, non-motor vehicle detection, Wide Dynamic Range (WDR), 2D digital noise reduction (DNR), 3D Noise Reduction Technology, Defog, Highlight Compensation (HLC), Backlight Compensation (BLC), Region of Interest (ROI), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, reset button, auto ICR, digital defog, Smart IR, Privacy Mask Function, watermark, ARP protection, RTSP authentication, user authentication, IP address filtering, surge protection |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 101.1 |
| Vertical Field of View (degree) | 55.3 |
| Diagonal Field of View (degree) | 111.1 |
| Image Sensor | |
| Type | 4 MP Progressive Scan CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QOS |
