4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing - KVM / audio / USB switch - 4 - 1 local user - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 4-Port HDMI Dual-Display KVM Switch - 4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing - KVM / audio / USB switch - 4 ports - rack-mountable |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Rack-mountable |
| Subtype | KVM |
| Ports | 4 |
| KVM Users Qty | 1 local user |
| Features | 2.1 channel audio support, DCC, dual display support |
| Compliant Standards | USB 3.2 Gen 1, USB 2.0 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 13.2 in x 6.1 in x 1.7 in |
| Weight | 3.53 lbs |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | KVM |
| Ports | 4 |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Features | 2.1 channel audio support, DCC, dual display support |
| Compliant Standards | USB 3.2 Gen 1, USB 2.0 |
| Status Indicators | Status |
| Expansion / Connectivity | |

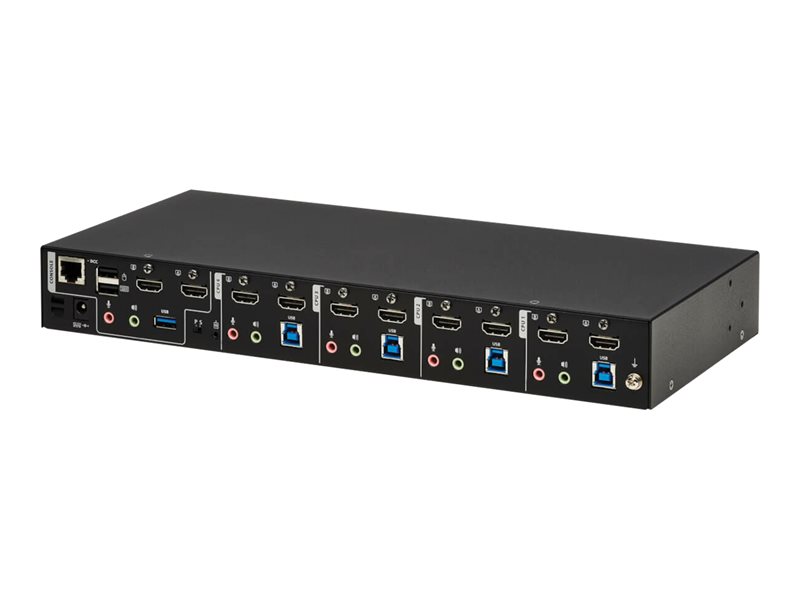

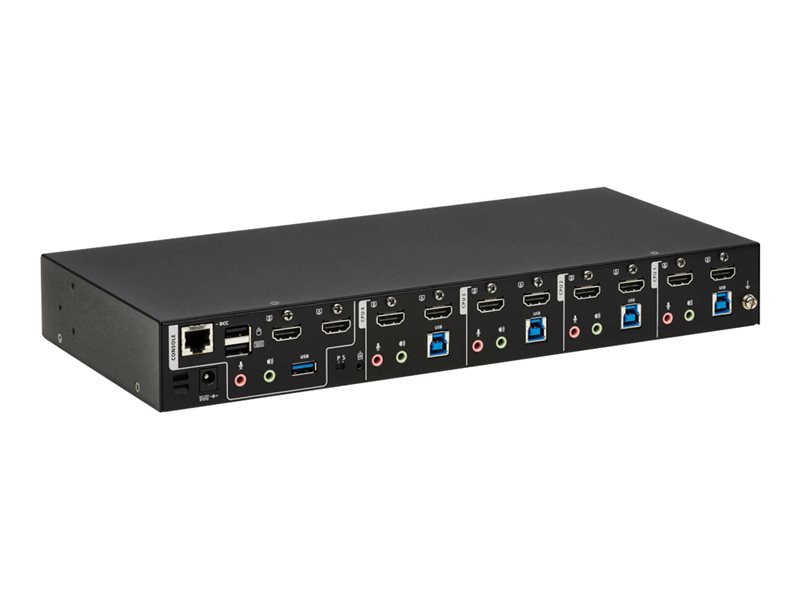

| Interfaces | 8 x HDMI input ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 8 x audio input mini-jack ¦ 4 x audio output mini-jack ¦ 2 x HDMI output ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x console RJ-45 ¦ 2 x USB 3.2 Gen 1 output Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 4 rubber pads, remote port selector switch |
| Compliant Standards | HDCP 2.2, BSMI, CCC, China RoHS, DOE, FCC, GS, PSE Mark, RCM, RoHS, TUV, UL, WEEE, cUL, REACH, NOM |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 3.33 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 3.17 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 13.2 in |
| Depth | 6.1 in |
| Height | 1.7 in |
| Weight | 3.53 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.3 in |
| Shipping Depth | 9.2 in |
| Shipping Height | 4.6 in |
| Shipping Weight | 6.99 lbs |
