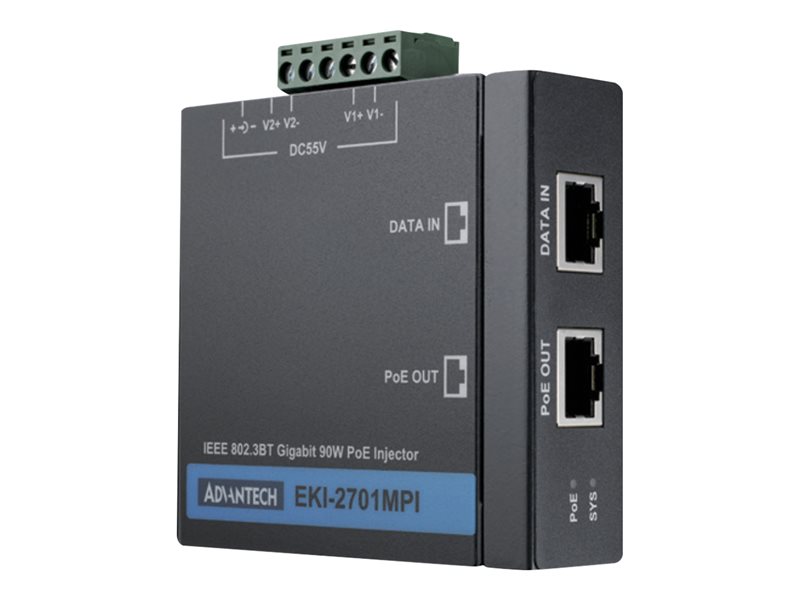

PoE injector (DIN rail mountable) - DC 55 - 57 V - 90 Watt
| Main Specifications | |
|---|---|
| Product Description | Advantech EKI-2701MPI-AE - PoE injector - 90 Watt |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 8.82 oz |
| Input Voltage | DC 55 - 57 V |
| Power Capacity | 90 Watt |
| Input Connectors | Power DC jack, 6 x terminal block (screw) |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Wall mounting bracket |
| Dimensions (WxDxH) | 1 in x 3.3 in x 3.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Wall mounting bracket |
| Features | Wall mountable, LED indicators, reverse polarity protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP40, EN 55022 Class A, EN 61000-4-2 Level 4, EN 61000-4-3 Level 3, EN 61000-4-6 Level 3, UL 62368, EN 61000-4-4 Level 4, EN 61000-4-5 Level 4, EN 61000-4-8 Level 4 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 55 - 57 V |
| Input Connectors | Power DC jack, 6 x terminal block (screw) |
| Power Consumption Operational | 92 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 90 Watt |
| Dimensions & Weight | |
| Width | 1 in |
| Depth | 3.3 in |
| Height | 3.1 in |
| Weight | 8.82 oz |
