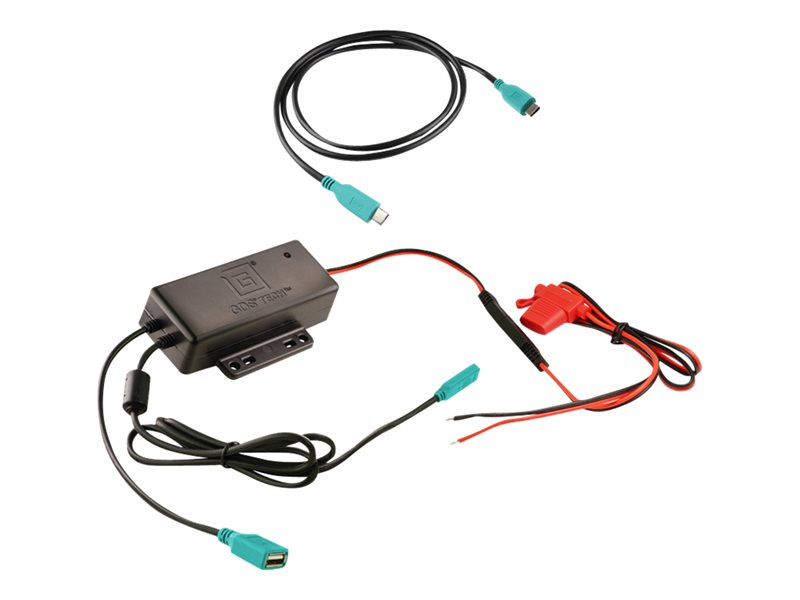

Power converter - 10 - 28 V - 24 Watt - output connectors: 2
| Main Specifications | |
|---|---|
| Product Description | RAM GDS - power converter - 24 Watt |
| Device Type | Power converter - external |
| Input Voltage | 10 - 28 V |
| Output Voltage | 5 / 9 / 12 V |
| Power Capacity | 24 Watt |
| Output connectors | 1 x 4 pin USB Type A ¦ 1 x 24 pin USB-C |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power converter - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IC, FCC, RoHS, WEEE, RCM, SAE J1113-5a |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Power Device | |
| Input Voltage | 10 - 28 V |
| Power Output Connectors Details | 1 x 4 pin USB Type A ¦ 1 x 24 pin USB-C |
| Output Voltage | 5 / 9 / 12 V |
| Max Electric Current | 2 A |
| Power Capacity | 24 Watt |
