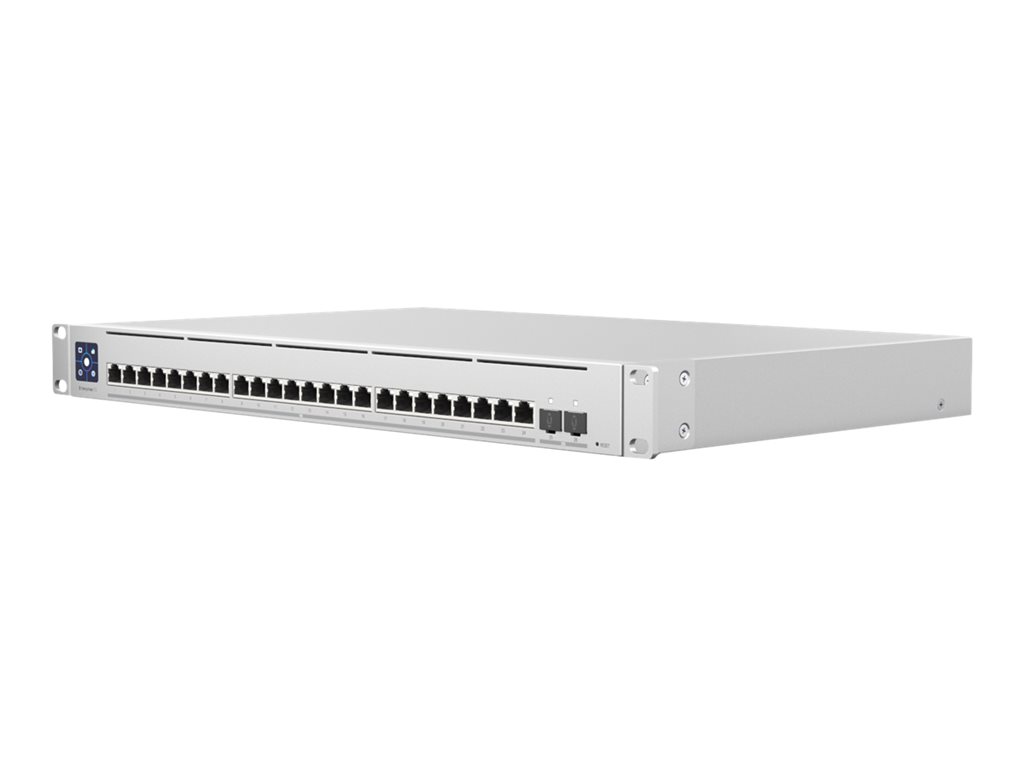

Switch - L3 - managed - 24 x 100/1000/2.5G/5G/10GBase-T + 2 x 25 Gigabit SFP28 (uplink) - rack-mountable - AC 120/230 V / DC 11.5 V
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi Enterprise XG 24 - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T + 2 x 25 Gigabit SFP28 (uplink) |
| Performance | Non-blocking switching throughput: 290 Gbps ¦ Switching capacity: 580 Gbps ¦ Forwarding rate: 431.52 Mpps |
| Features | Firmware upgradable |
| Power | AC 100-240/ DC 11.5 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 11.2 in x 1.7 in |
| Weight | 10.08 lbs |
| General | |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T + 2 x 25 Gigabit SFP28 (uplink) |
| Performance | Non-blocking switching throughput: 290 Gbps ¦ Switching capacity: 580 Gbps ¦ Forwarding rate: 431.52 Mpps |
| Features | Firmware upgradable |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | Link/activity |
| Expansion / Connectivity | |
| Interfaces | 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 2 x 1/10/25Gbit LAN SFP28 uplink |
| Miscellaneous | |
| Included Accessories | Rack mounting ears |
| Compliant Standards | FCC, IC |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240/ DC 11.5 V (50/60 Hz) |
| Power Consumption Operational | 100 watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 11.2 in |
| Height | 1.7 in |
| Weight | 10.08 lbs |
