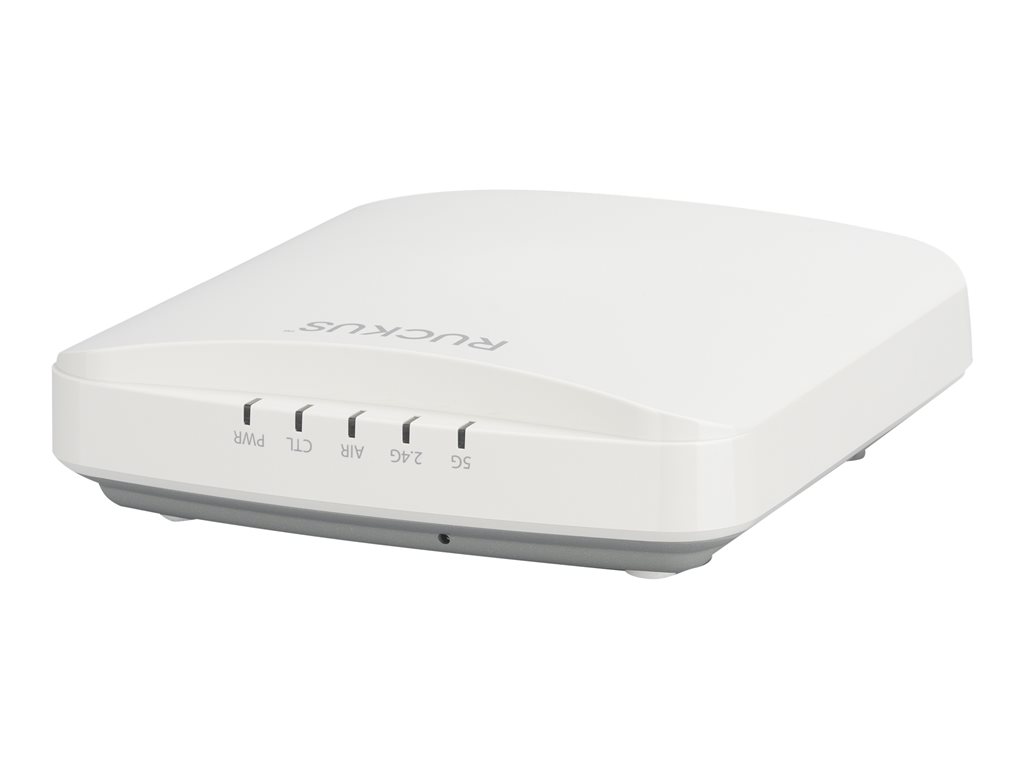

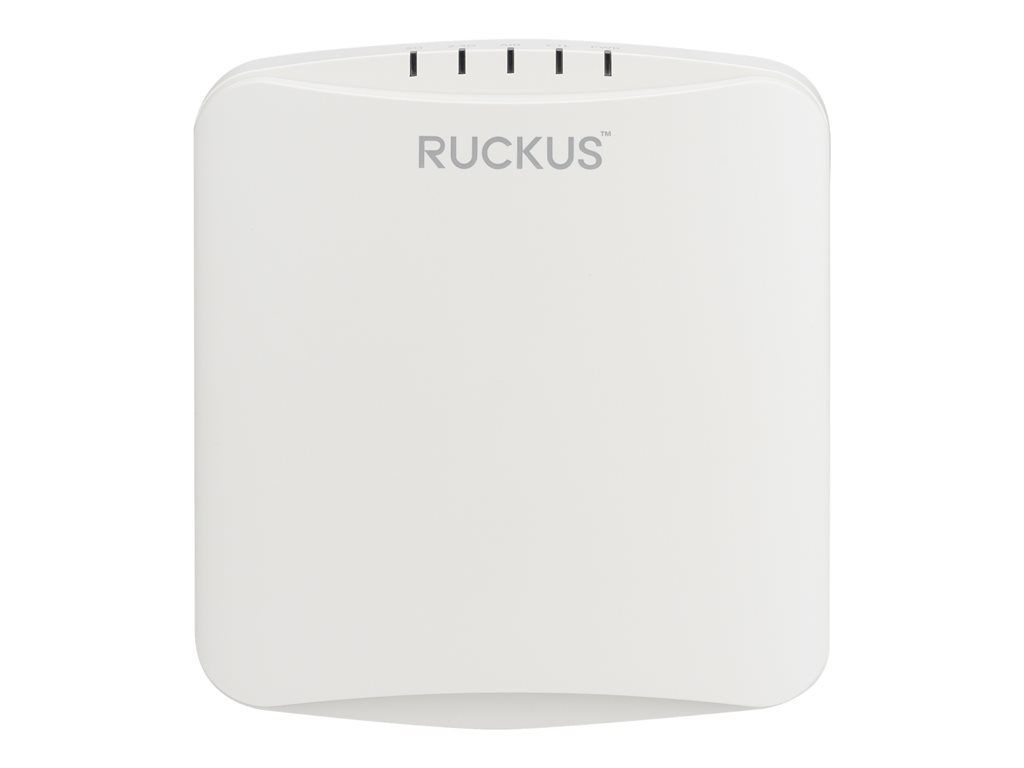

Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - desktop / wall / ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | Ruckus R350 Unleashed - wireless access point - Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | Desktop / wall / ceiling mountable - indoor |
| Localization | Worldwide |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1200 Mbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
| Capacity | Concurrent users: 256 ¦ Maximum number of configured SSIDs: 16 |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 6.1 in x 5.7 in x 1.5 in |
| Weight | 12.98 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 6.1 in |
| Depth | 5.7 in |
| Height | 1.5 in |
| Weight | 12.98 oz |
| Localization | Worldwide |
| Expansion / Connectivity | |

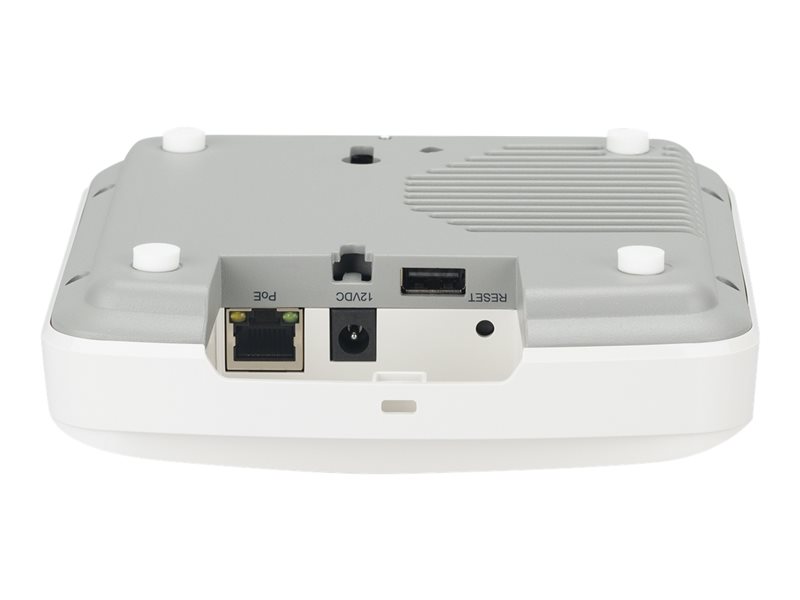

| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE |
| Networking | |
| Form Factor | Desktop / wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Network / Transport Protocol | L2TP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1200 Mbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
| Capacity | Concurrent users: 256 ¦ Maximum number of configured SSIDs: 16 |
| Features | Security slot (Kensington security lock compatible), reset button, 2x2 MU-MIMO technology, 2x2 SU-MIMO technology, Wireless Intrusion Prevention System (WIPS), Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, WMM Power Save, Low Density Parity Check (LDPC), STBC support, Space Time Blocking Code (STBC), HotSpot 2.0, Hotspot Access Point Capability, Captive Portal, WISPr authentication, ChannelFly, load balancing, Airtime Fairness, Airtime-based WLAN Prioritization, Quality of Service (QoS), SmartRoam, SpeedFlex, SmartZone, IPv4 support, IPv6 support, port-based VLAN, VLAN support, L2TP support, Access Control List (ACL) support, ceiling mountable, wall mountable, RADIUS support, beamforming technology |
| Encryption Algorithm | AES, TKIP, WPA2, WPA-PSK |
| Authentication Method | Basic Service Set Identifier (BSSID), RADIUS |
| Compliant Standards | IEEE 802.11n, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 12.62 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Gain Level | 3 dBi |
