Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - MSSP Program
| Main Specifications | |
|---|---|
| Product Description | WatchGuard AP430CR - wireless access point - Wi-Fi 6 - cloud-managed - MSSP Program |
| Device Type | Wireless access point |
| Form Factor | External - outdoor, indoor |
| Processor | 1 x Qualcomm Hawkeye 1 GHz |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps |
| Capacity | SSIDs per radio: 8 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Manufacturer Selling Program | WatchGuard Managed Security Services Provider (MSSP) Program |
| Dimensions (WxDxH) | 10.5 in x 10.5 in x 2.1 in |
| Weight | 3.88 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor, indoor |
| Width | 10.5 in |
| Depth | 10.5 in |
| Height | 2.1 in |
| Weight | 3.88 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5/5GBase-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 6 x antenna - N connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, cUL, IC, FCC, RoHS, IP67 |
| Manufacturer Selling Program | WatchGuard Managed Security Services Provider (MSSP) Program |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Remote Management Protocol | SSH, CLI |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps |
| Capacity | SSIDs per radio: 8 |
| Features | VPN support, DFS support, firmware upgradable, DFS-2 support, quad-stream (4x4) |
| Encryption Algorithm | TKIP, WPA, WPA2, WPA-PSK, AES-CCMP, WPA2-PSK, WPA3 |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 16 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Qualcomm Hawkeye 1 GHz |
| Max Supported Qty | 1 |
| Antenna | |

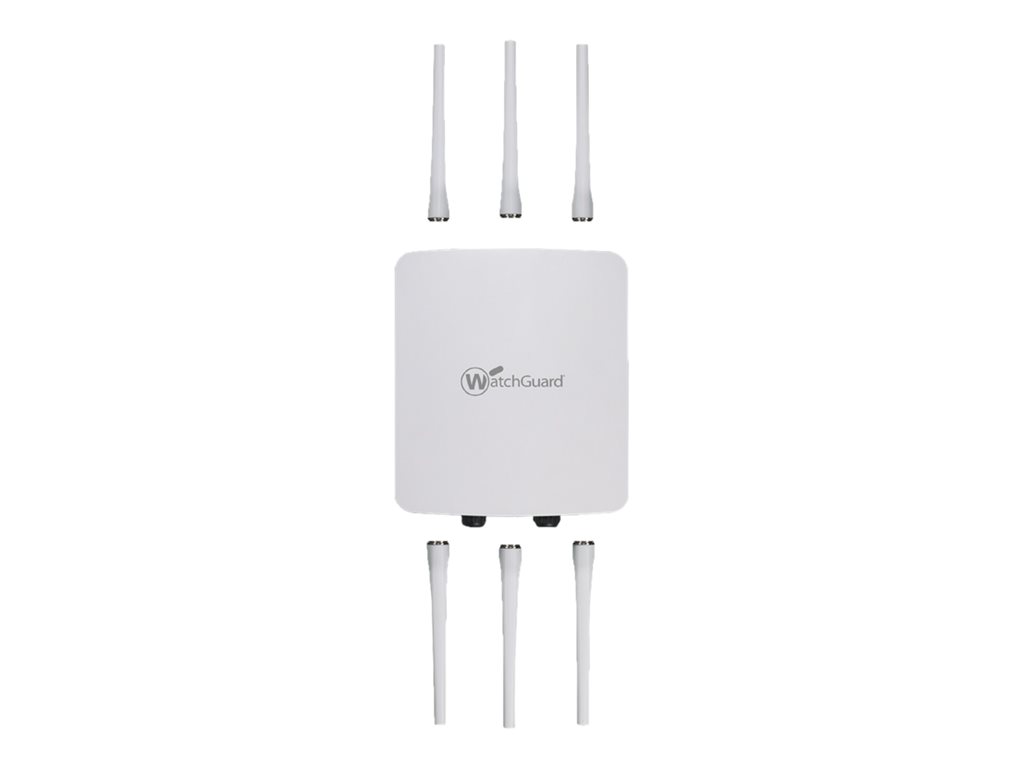

| Antenna | External detachable |
| Antenna Qty | 6 |
