Network panoramic camera - dome - outdoor - color (Day&Night) - 12 MP - 3840 x 2160 (panorama) / 2880 x 2880 (original) - fixed iris - fixed focal - audio - LAN 10/100 - H.264, MPEG-4, AVC, HEVC, H.265, MJPEG - PoE Class 4
| Main Specifications | |
|---|---|

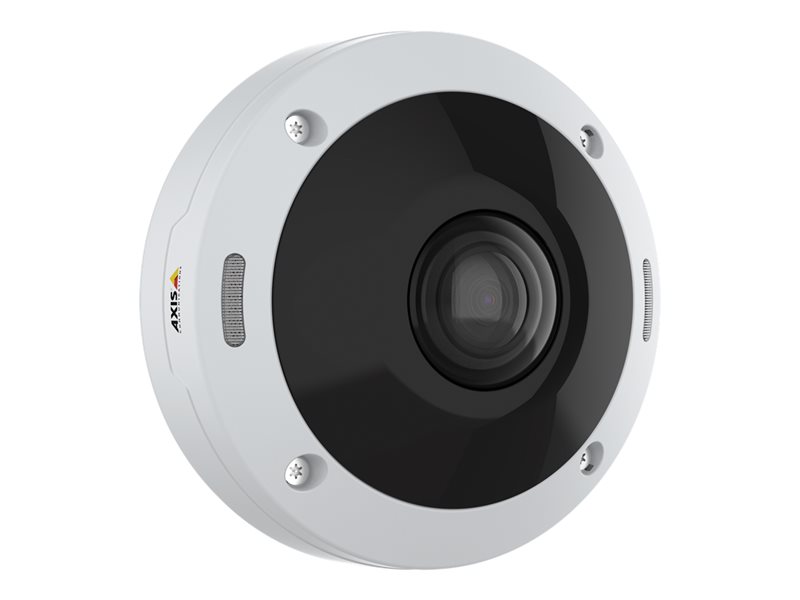

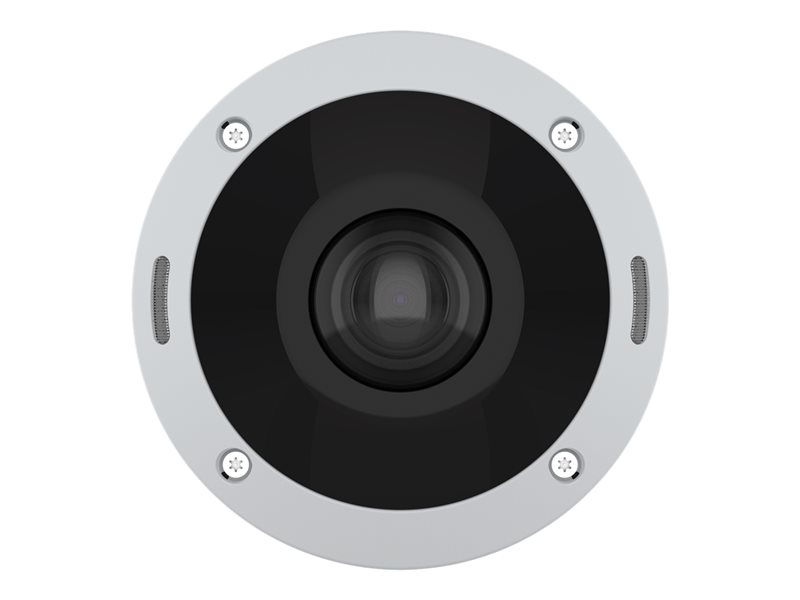

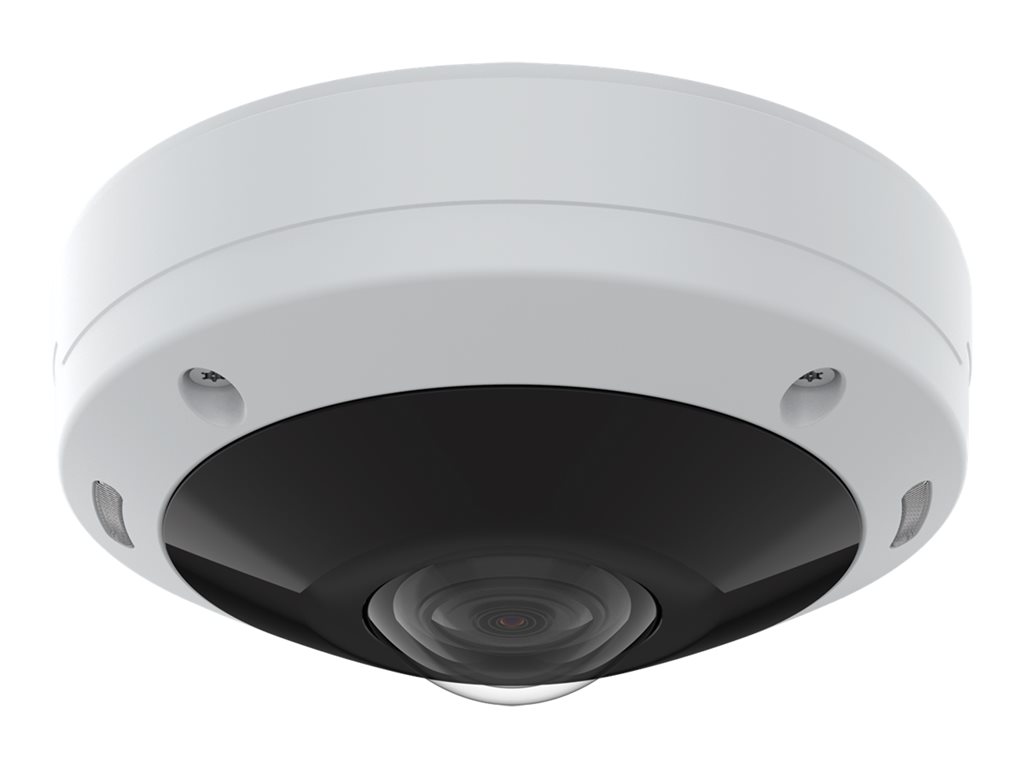

| Product Description | AXIS M4308-PLE - network panoramic camera - dome |
| Device Type | Network panoramic camera - fixed - dome - outdoor |
| Audio | Yes: built-in four microphones |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 2.7 in |
| Weight | 29.98 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 (panorama) / 2880 x 2880 (original) |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | PS RGB CMOS - 1/1.7" - 12 MP |
| Minimum Illumination | 0.19 lux - color - F2.4 - 50 IRE ¦ 0.04 lux - B&W - F2.4 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 1.3 mm |
| Lens Iris | F/2.4 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 4 |
| Features | Forensic WDR, Lightfighter technology, OptimizedIR, progressive scanning, embedded SOC processor, infrared cut filter, Adaptive Bitrate (ABR), Variable Bitrate (VBR), quad video stream, CorridorView, compression, saturation control, brightness control, contrast control, sharpness control, exposure control, white balance, auto gain control, text overlay, image overlay, Privacy Mask Function, password protection |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 122 °F; 10 - 100% relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: built-in four microphones |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 2.7 in |
| Weight | 29.98 oz |
| Localization | Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Screw bit T20, mounting bracket, drill hole template, cable gaskets, connector guard, I/O connector, cable hole lid, view protector |
| Compliant Standards | IP66, IK10, NEMA Type 4X, IEEE 802.3at |
| Color | White |
| Power | |
| Power Requirements | PoE Class 4 |
| Power Device | 7.9 Watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor |
| Digital Video Format | H.264, MPEG-4, AVC, HEVC, H.265, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 (panorama) / 2880 x 2880 (original) |
| Exposure Range | 1 sec - 1/22000 sec |
| Minimum Illumination | 0.19 lux - color - F2.4 - 50 IRE ¦ 0.04 lux - B&W - F2.4 - 50 IRE ¦ 0 lux - IR |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Forensic WDR, Lightfighter technology, OptimizedIR, progressive scanning, embedded SOC processor, infrared cut filter, Adaptive Bitrate (ABR), Variable Bitrate (VBR), quad video stream, CorridorView, compression, saturation control, brightness control, contrast control, sharpness control, exposure control, white balance, auto gain control, text overlay, image overlay, Privacy Mask Function, password protection |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.3 mm |
| Lens Iris | F/2.4 fixed iris |
| Horizontal Field of View (degree) | 183 - 183 |
| Image Sensor | |
| Type | 12 MP PS RGB CMOS 1/1.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | EAP, TLS, IPv6, USGv6, ICMP, HTTP, HTTPS, SSL, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
