Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed
| Main Specifications | |
|---|---|

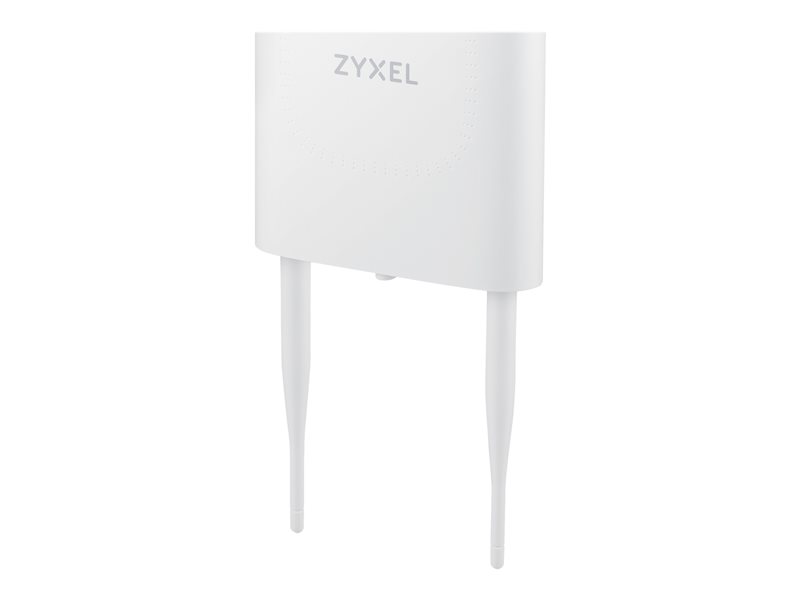

| Product Description | Zyxel NWA55AXE - wireless access point - Wi-Fi 6 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
| Included Accessories | PoE injector |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 12.1 in x 5.4 in x 2 in |
| Weight | 20.46 oz |
| General | |
| Device Type | Wireless access point |
| Width | 12.1 in |
| Depth | 5.4 in |
| Height | 2 in |
| Weight | 20.46 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | PoE injector |
| MTBF | 1,091,186 hour(s) |
| Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1200 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Remote Management Protocol | HTTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
| Wi-Fi Rating | AX1800 |
| Features | VLAN support, MAC address filtering, IPv6 support, firmware upgradable, Unscheduled Automatic Power Save Delivery (U-APSD) |
| Encryption Algorithm | WPA3-Personal, WPA2-Personal, WPA-Personal |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.7 in |
| Shipping Depth | 7.4 in |
| Shipping Height | 2.3 in |
| Shipping Weight | 31.28 oz |
| Antenna | |
| Antenna | External |
| Antenna Qty | 2 |
