Video/audio/infrared/serial extender - receiver - HDBaseT - up to 230 ft
| Main Specifications | |
|---|---|

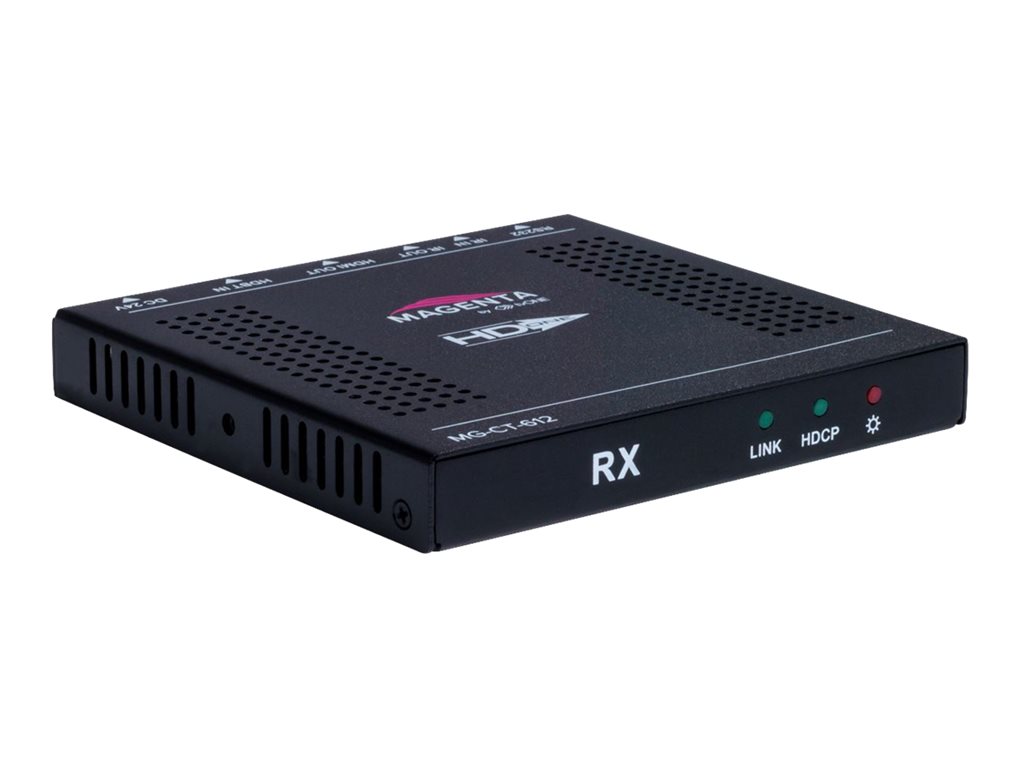

| Product Description | Magenta HD-One MG-CT-612 Ultra-thin PoH Receiver - video/audio/infrared/serial extender - HDBaseT |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoH |
| Dimensions (WxDxH) | 4.5 in x 4.3 in x 0.6 in |
| Weight | 6.91 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Expansion / Connectivity | |

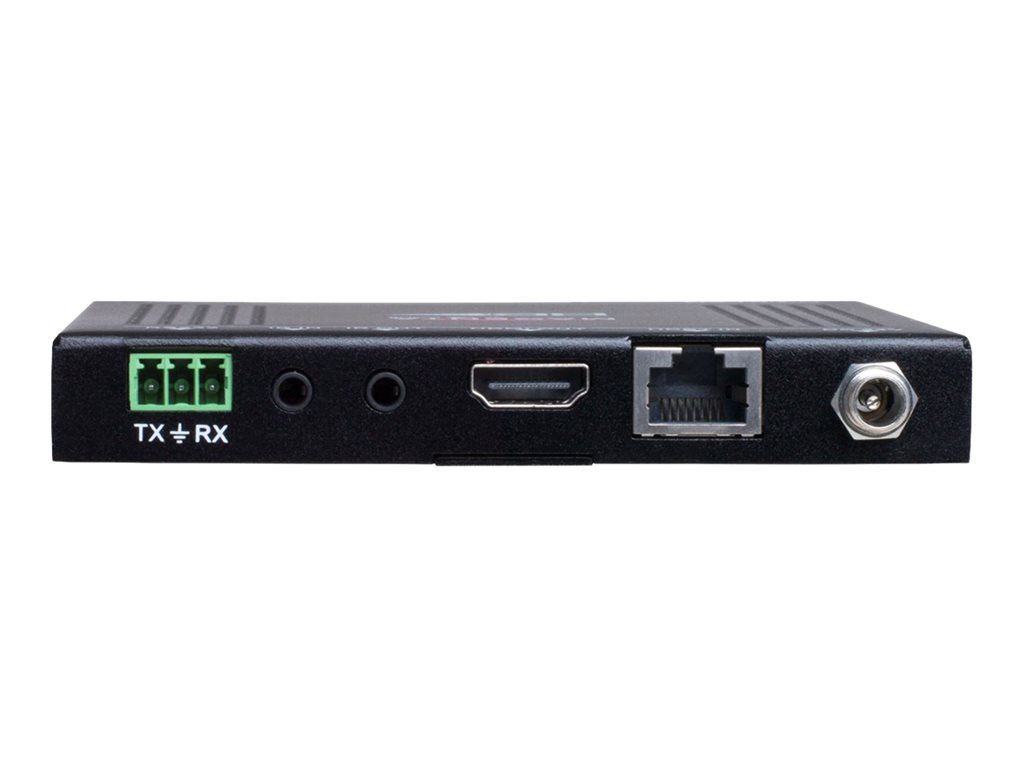

| Interfaces | 1 x HDMI - 19 pin HDMI Type A female ¦ 1 x HDBaseT - RJ-45 female ¦ 1 x RS-232 (bi-directional) - terminal block ¦ 1 x IR (input) - mini jack female ¦ 1 x IR (output) - mini jack female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 230 ft |

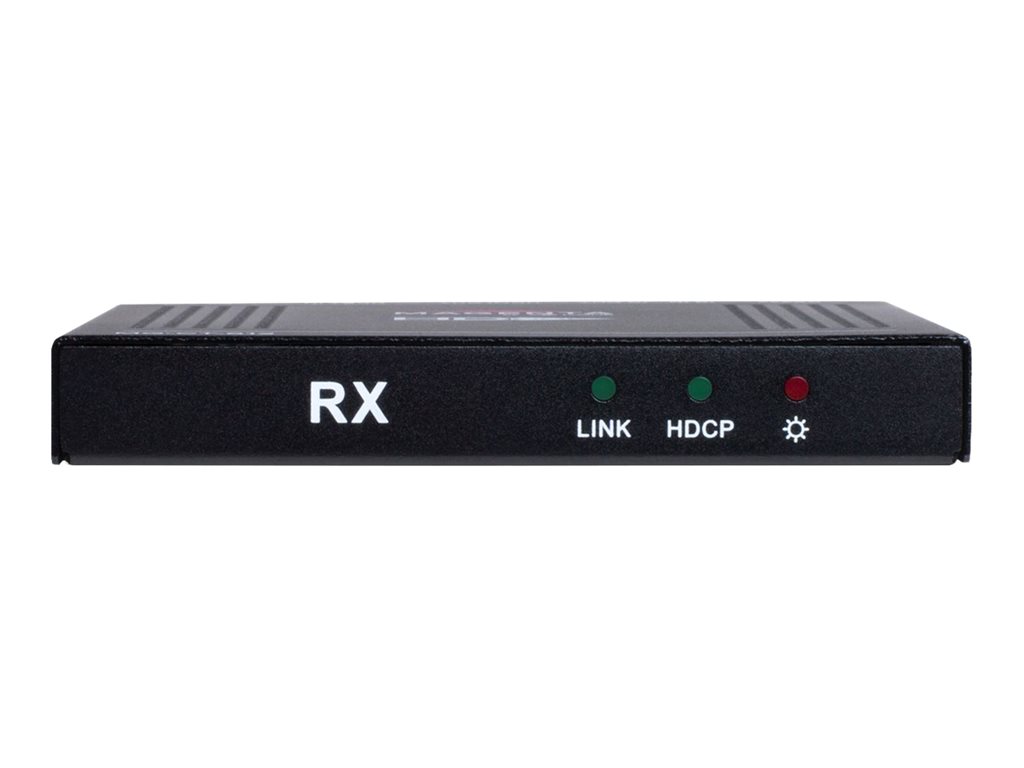

| Status Indicators | Power, link/activity, HDCP |
| Features | HDCP compliant, 4K resolution support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoH |
| Power Device | External power adapter |
| Power Consumption Operational | 14 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 4.3 in |
| Height | 0.6 in |
| Weight | 6.91 oz |
